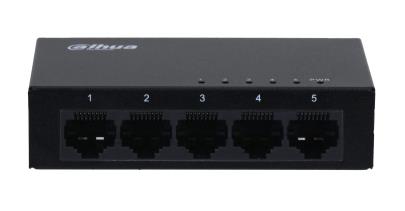

Dahua Technology SG1005-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black – photo 1

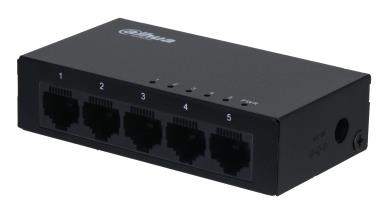

Dahua Technology SG1005-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black – photo 2

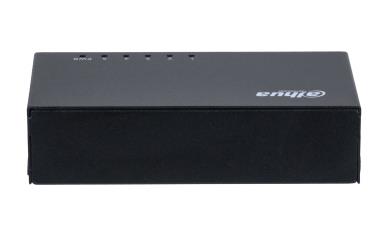

Dahua Technology SG1005-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black – photo 3

Out of Stock / Please Enquire ETA

DAHUA

Dahua Technology SG1005-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

incl. VAT: R852

Stock: Out of Stock / Please Enquire ETA
Brand: DAHUA
Model: SG1005-EUR
Dimensions: 11 × 10 × 7 cm
EAN: 6923172590480
Product code: 949677

DAHUA

Please Inquire

R740 incl. VAT: R852

We will email you when the product is back in stock.

Key features

Unmanaged L2
Basic switching RJ-45 Ethernet ports quantity: 5
10BASE-T, 100BASE-T, 1000BASE-T
MAC address table: 2000 entries Switching capacity: 10 Gbit/s
DC Power supply included

Tags: dahua switches , dahua switche

Description
Specifications

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design

Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play

Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance

All ports can transmit streams at high speeds without delay.

Easy Installation

Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

Management features
Switch type	Unmanaged
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Network
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Packet buffer memory	1 MB
Design
Product colour	Black
Housing material	Metal
Power
Power source	DC
Power supply included	Yes
DC input voltage	5 V
Input current	1 A
Power consumption (max)	1.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	87 mm
Depth	47 mm
Height	22 mm
Weight	160 g
Packaging data
Package width	111 mm
Package depth	94 mm
Package height	67 mm
Package weight	280 g
Certificates
Compliance certificates	CE
