✅ In Stock

TP-LINK

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

incl. VAT: R860

Stock: Backordered - delivers in 10-15 days
Brand: TP-LINK
Model: LS1005G
Weight: 0.02 kg
Dimensions: 9 × 9 × 10 cm
EAN: 1210002616157
Product code: 377145

TP-LINK

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R747 incl. VAT: R860

Qty

Save PDF

Key features

5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed
Fanless design ensures quiet operation

Tags: tp-link switches , tp-link switche

Description
Specifications

Let LiteWave Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

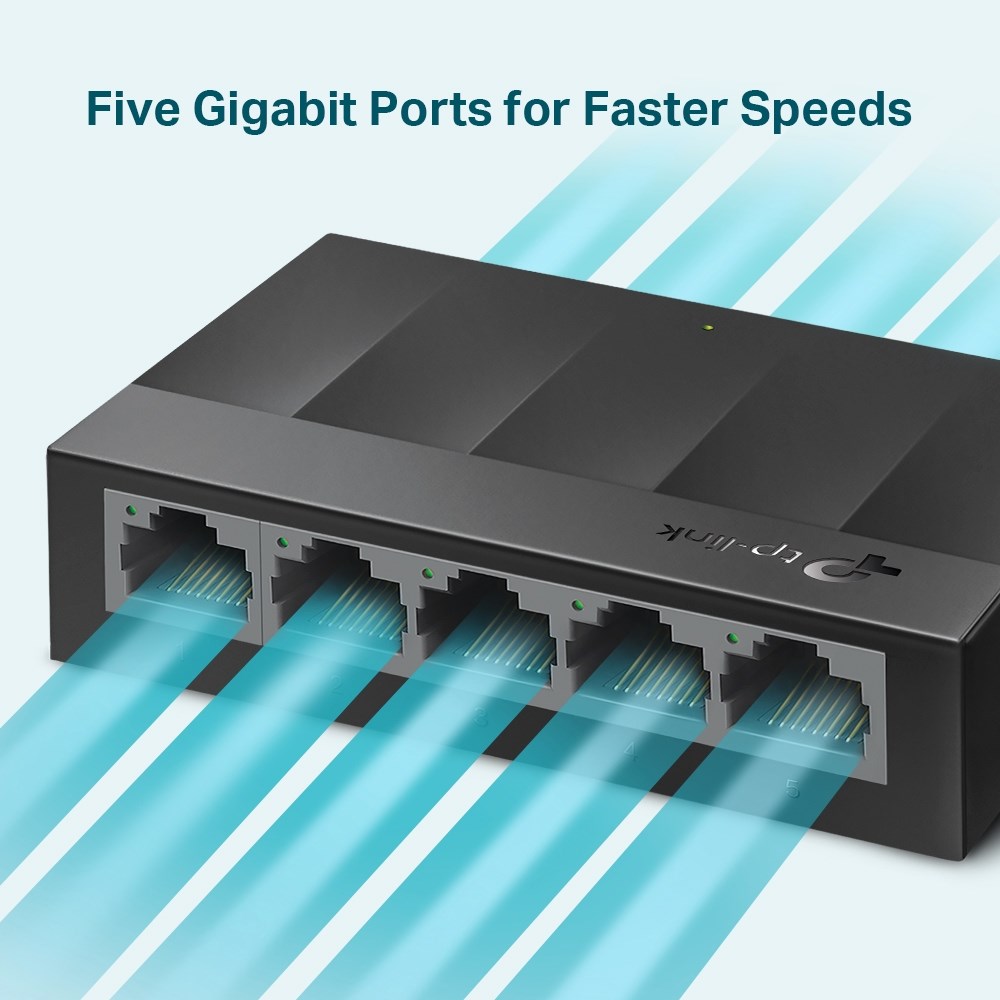

Gigabit Ports For Faster Speeds

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need

The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1.5 MB
Design
Rack mounting	No
Product colour	Black
Housing material	Plastic
LED indicators	Yes
International Protection (IP) code	IP20, IP40
Wall mountable	Yes
Power
Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	12.617 BTU/h
Weight & dimensions
Width	90 mm
Depth	72 mm
Height	23 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
