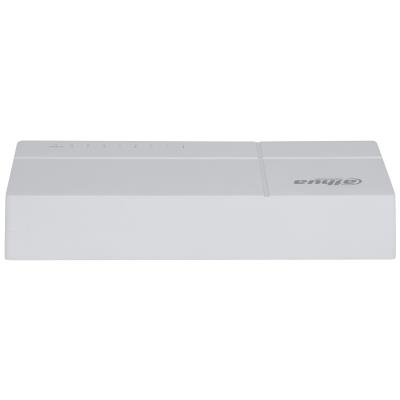

Dahua Technology PoE SF1008-EUR network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 1

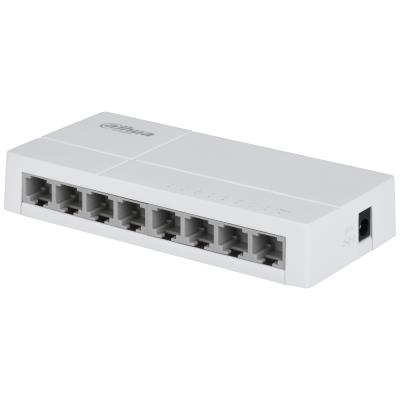

Dahua Technology PoE SF1008-EUR network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 2

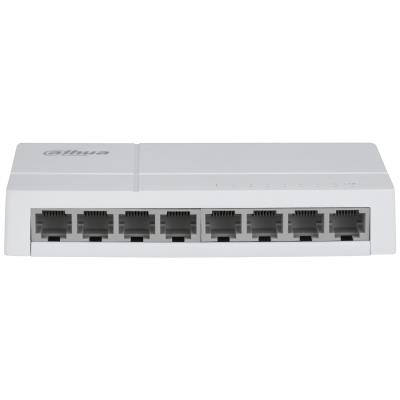

Dahua Technology PoE SF1008-EUR network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 3

✅ In Stock

DAHUA

Dahua Technology PoE SF1008-EUR network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey

incl. VAT: R783

Stock: Backordered - delivers in 10-15 days
Brand: DAHUA
Model: SF1008-EUR
Dimensions: 16 × 9 × 8 cm
EAN: 6923172590466
Product code: 949731

DAHUA

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R681 incl. VAT: R783

Qty

Save PDF

Key features

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
Cat5e, Cat6 10BASE-T
MAC address table: 2000 entries Switching capacity: 1.6 Gbit/s
Desktop
DC/PoE Power over Ethernet (PoE)

Tags: dahua switches , dahua switche

Description
Specifications

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design

Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play

Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance

All ports can transmit streams at high speeds without delay.

Easy Installation

Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	8
Uplink ports quantity	1
Network
10G support	No
Copper ethernet cabling technology	10BASE-T
Cable types supported	Cat5e, Cat6
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
Data transmission
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	0.744 Mpps
Packet buffer memory	0.768 MB
Design
Rack mounting	No
Form factor	Desktop
Product colour	Light grey
LED indicators	Yes
Performance
Mean time between failures (MTBF)	952.5 h
Power
Power source	DC/PoE
DC input voltage	5 V
Input current	1 A
Power consumption (typical)	0.1 W
Power consumption (max)	0.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	132.9 mm
Depth	62.4 mm
Height	24 mm
Weight	160 g
Packaging data
Package width	138 mm
Package depth	90 mm
Package height	63.5 mm
Package weight	290 g
