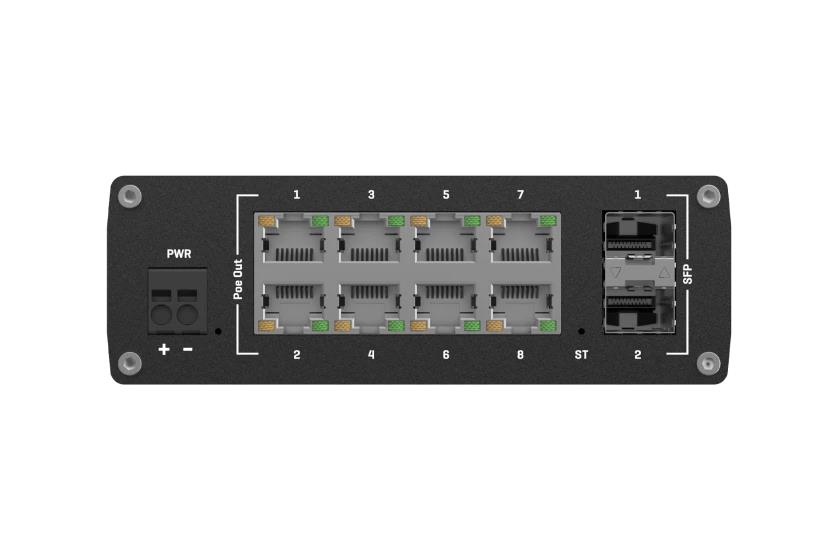

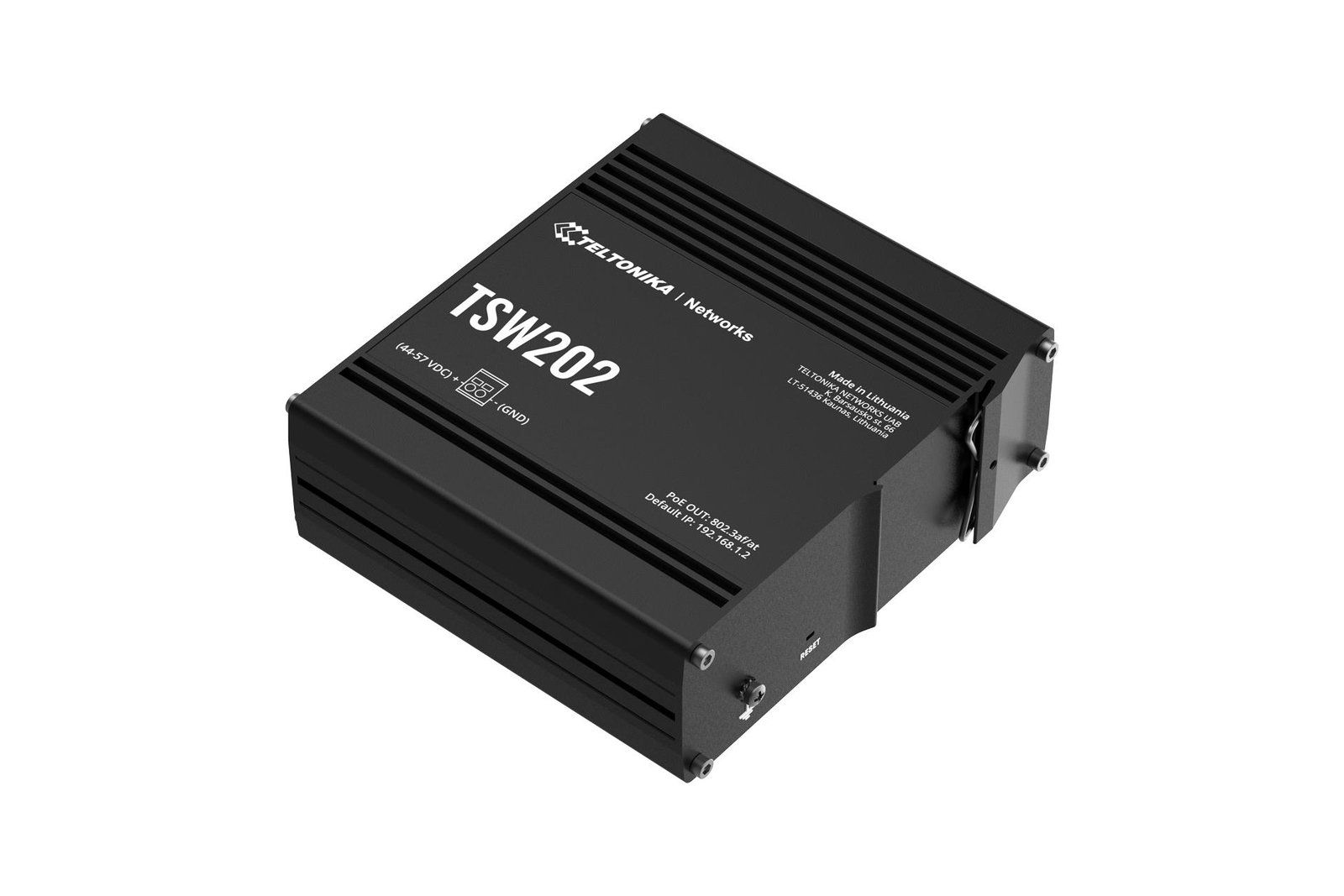

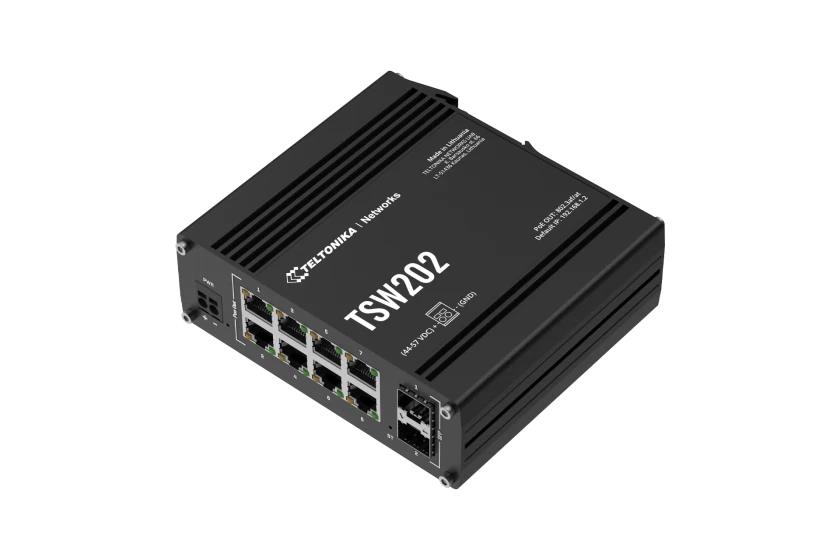

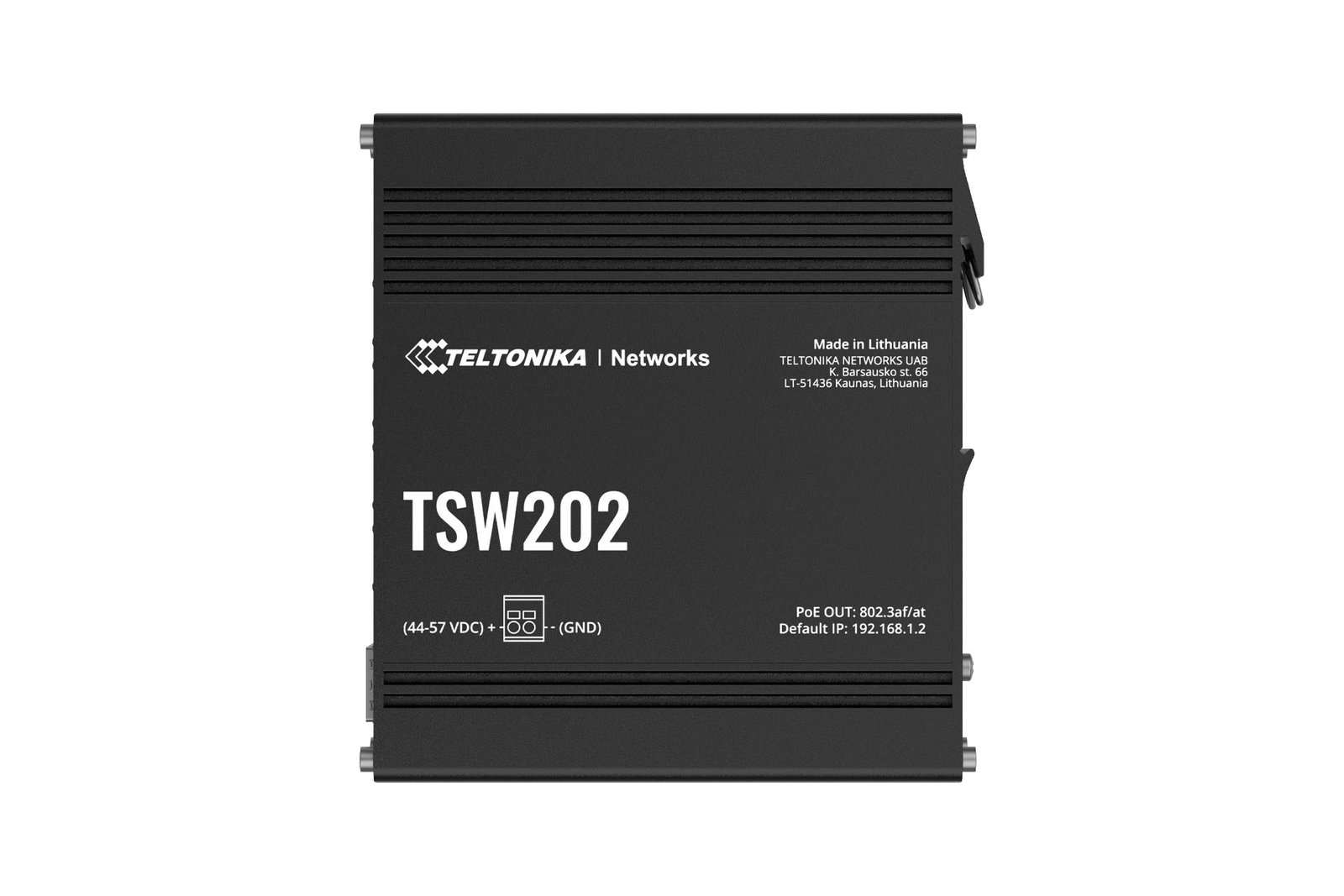

Switch TELTONIKA TSW202000000 Type L2 PoE+ ports 8 240 Watts TSW202

TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease.

PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports.

The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing.

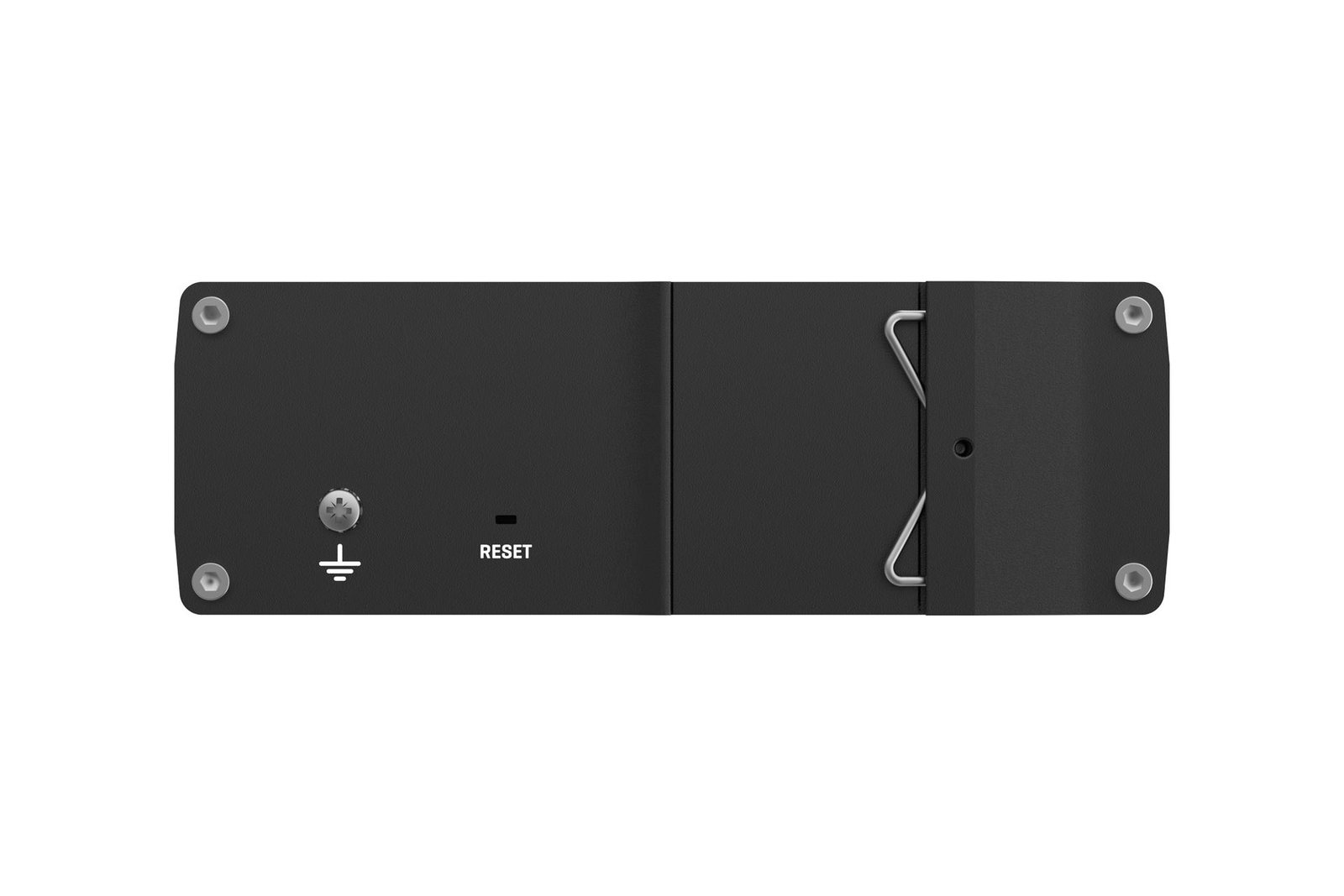

Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.

• MANAGED SWITCH
• PoE+
• SFP
• GIGABIT ETHERNET

Summary: Teltonika TSW202. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. Power connector: Terminal block (3-pin). Power over Ethernet (PoE) | Vendor Homepage: teltonika-networks.com/products/ethernet-switches/tsw202 | Switch type: Managed | Switch layer: L2 | Quality of Service (QoS) support: Yes | Web-based management: Yes | Basic switching RJ-45 Ethernet ports quantity: 8 | Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (copper) ports quantity: 8 | Installed SFP modules quantity: 2 | Power connector: Terminal block (3-pin) | Networking standards: IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3z | 10G support: No | Port mirroring: Yes | Full duplex: Yes | Active link detection: Yes | Auto-negotiation: Yes | Link aggregation: Yes | VLAN support: Yes | Switching capacity: 20 | MAC address table: 8000 | Jumbo frames support: Yes | Jumbo frames: 10000 | DHCP features: DHCP client | IGMP snooping: Yes | Rack mounting: No | Stackable: No | Product colour: Aluminium/Blue | Housing material: Aluminium | Reset button: Yes | LED indicators: Power/Status | DIN rail mounting: Yes | International Protection (IP) code: IP30 | Power supply included: No | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) type supported: Active PoE | Power over Ethernet (PoE) ports quantity: 8 | Power over Ethernet (PoE) power per port: 30 | Total Power over Ethernet (PoE) budget: 240 | Operating temperature (T-T): -40 - 75 | Width: 132 | Depth: 44.2 | Height: 122 | Weight: 610 | Unit Calculated Weight: 0.64 | Product Net Weight: 0.5 | Unit Calculated Volume: 0.0009112 | Units per Shipping Box: 1 | Unit Width: 5 | Shipping Box Height: 13.5 | Unit Depth: 13.5 | Unit Height: 13.5 | Name: NET SWITCH 8PORT 10/100/1000/POE+ L2 TSW202 TELTONIKA | Model: TSW202 | Model name: TSW202000000
