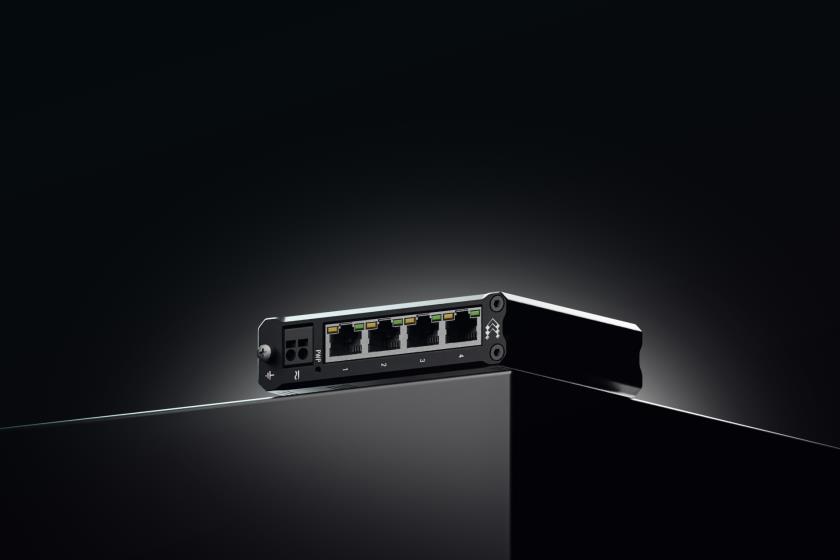

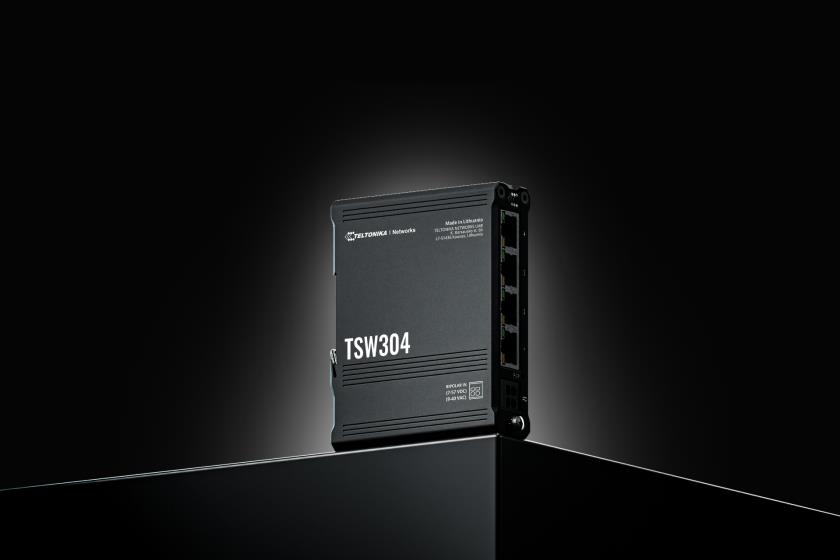

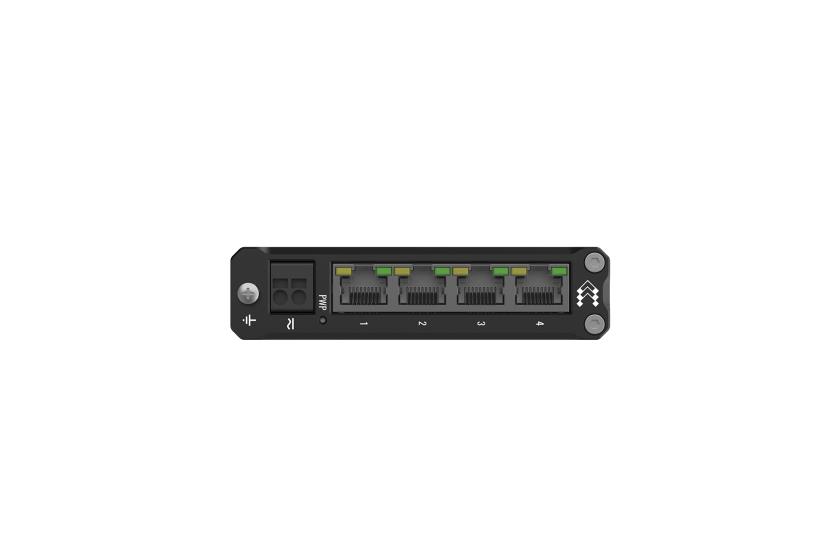

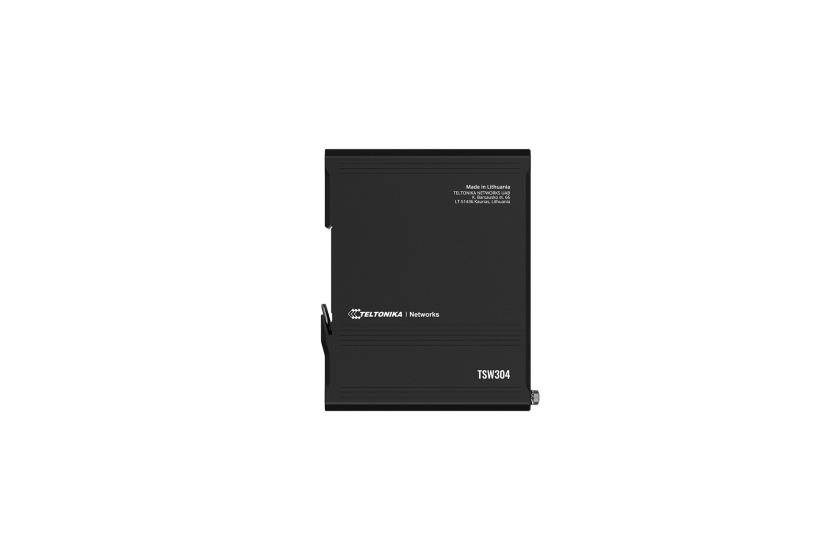

Switch TELTONIKA 4xRJ-45 ports RJ-45 Ports Type Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Yes TSW304

DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages

Summary: Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable | Vendor Homepage: https://teltonika-networks.com/products/switches/tsw304 | Basic switching RJ-45 Ethernet ports quantity: 4 | Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) | Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u | 10G support: No | Auto MDI/MDI-X: Yes | Ethernet LAN data rates: 10,100,1000 | Switching capacity: 8 | MAC address table: 2000 | Jumbo frames support: Yes | Jumbo frames: 9216 | Packet buffer memory: 0.128 | Product colour: Black | Housing material: Aluminium | LED indicators: Power/Status | DIN rail mounting: Yes | International Protection (IP) code: IP30 | Wall mountable: Yes | Power source: AC/DC | DC input voltage: 7 - 57 | Input voltage: 9 - 40 | Power consumption (typical): 0.26 | Power consumption (max): 1.44 | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) type supported: Passive PoE | Operating temperature (T-T): -40 - 75 | Operating relative humidity (H-H): 10 - 90 | Width: 102 | Depth: 81.5 | Height: 25 | Weight: 210 | Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM | Unit Calculated Weight: 0.23 | Product Net Weight: 0.21 | Unit Calculated Volume: 0.00033 | Units per Shipping Box: 1 | Unit Width: 11 | Units per Pallet: 0 | Shipping Box Height: 3 | Unit Depth: 10 | Unit Height: 3 | Name: NET SWITCH 4PORT 10/100/1000/TSW304 TELTONIKA | Model: TSW304 | Model name: TSW304
