Switch TELTONIKA Switch type Unmanaged Form factor DIN rail 5xRJ-45 ports RJ-45 Ports Type Fast Ethernet (10/100) 5xFast Ethernet (copper) ports quantity TSF010000000

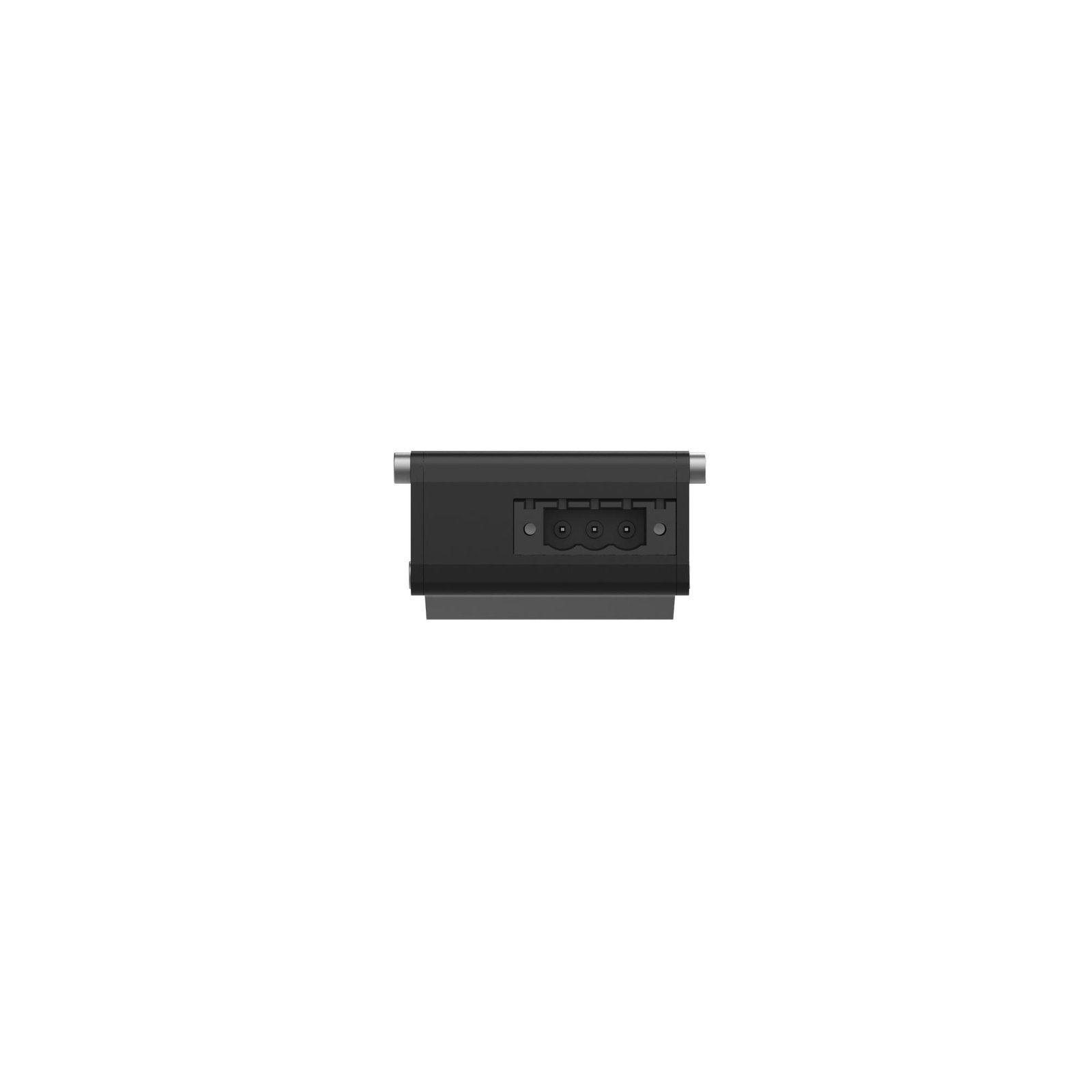

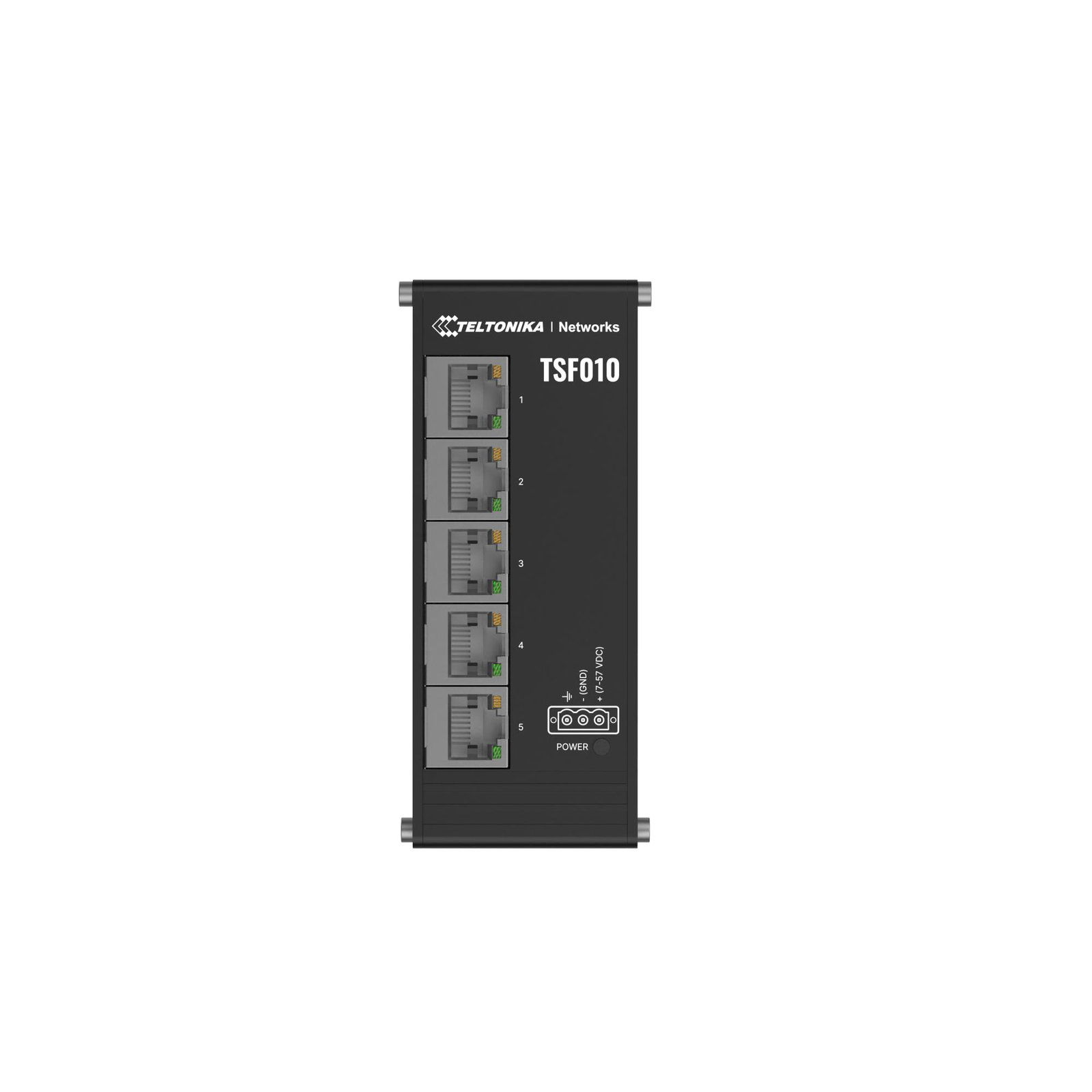

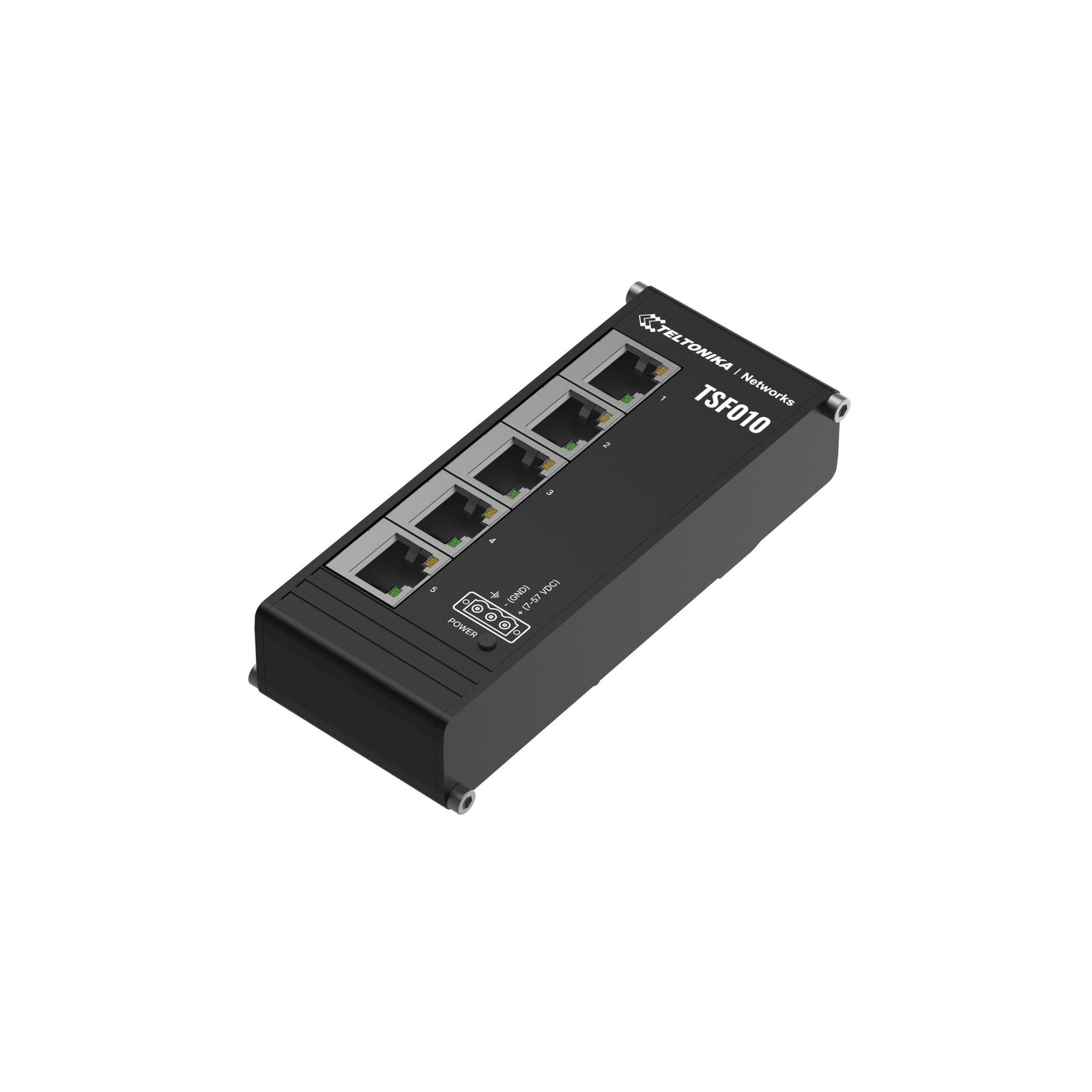

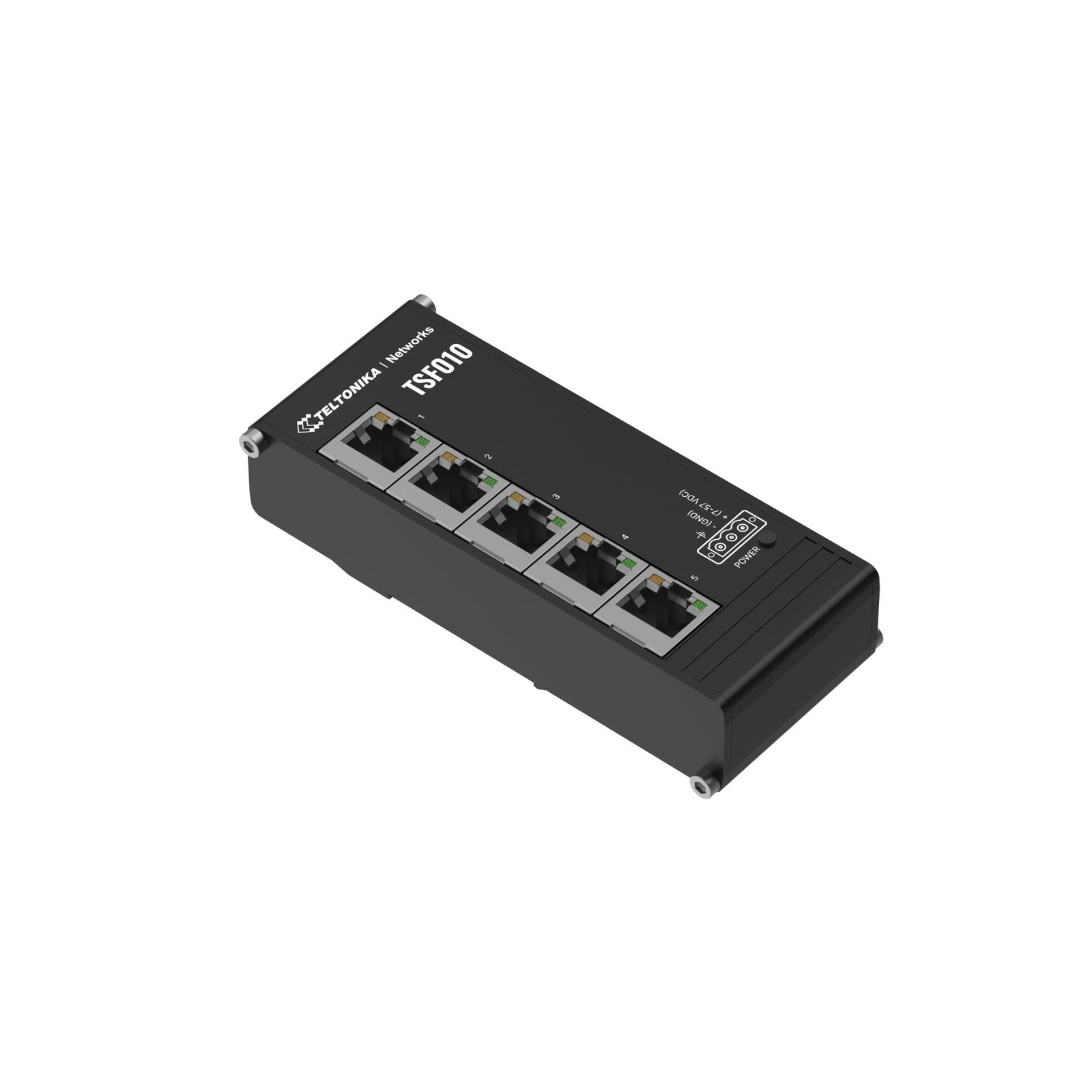

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

• 3-PIN POWER INPUT
• Flexible and tailor-made for industrial use
• FLAT & COMPACT
• Flat and compact design weighing only 142 g
• INTEGRATED DIN RAIL BRACKET
• Easy mounting for plug-and-play deployment
• 7-57 VDC
• Suitable voltage range for industrial applications

Summary: Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail | Vendor Homepage: https://teltonika-networks.com/products/ethernet-switches/TSF010/ | Switch type: Unmanaged | Basic switching RJ-45 Ethernet ports quantity: 5 | Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) | Fast Ethernet (copper) ports quantity: 5 | 10G support: No | Auto MDI/MDI-X: Yes | Full duplex: Yes | Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x | Jumbo frames: 9216 | Jumbo frames support: Yes | MAC address table: 2048 | Switching capacity: 10 | DIN rail mounting: Yes | Form factor: DIN rail | Housing material: Aluminium | International Protection (IP) code: IP30 | Product colour: Black | Rack mounting: No | Stackable: No | Input voltage: 7 - 57 | Power consumption (max): 1.5 | Power consumption (typical): 1 | Power source: DC | Power supply included: No | Power over Ethernet (PoE): No | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): -40 - 75 | Depth: 50 | Height: 28 | Weight: 142 | Width: 113 | Product Net Weight: 0.142 | Shipping Box Height: 3.0999999046 | Unit Calculated Volume: 0.000237 | Unit Calculated Weight: 0.15 | Units per Pallet: 0 | Units per Shipping Box: 1
