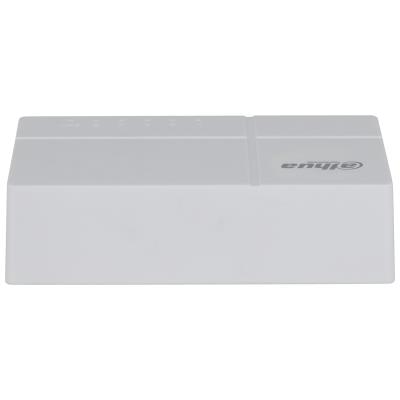

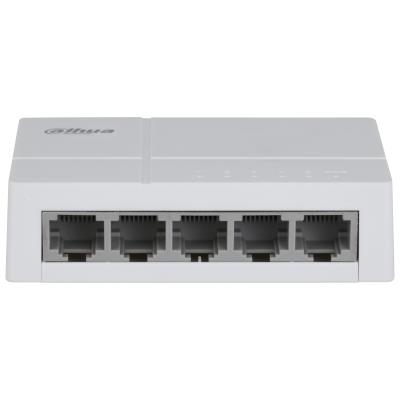

Dahua Technology PoE DH-SF1005L network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 1

Dahua Technology PoE DH-SF1005L network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 2

Dahua Technology PoE DH-SF1005L network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey – photo 3

Out of Stock / Please Enquire ETA

DAHUA

Dahua Technology PoE DH-SF1005L network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Light grey

incl. VAT: R720

Stock: Out of Stock / Please Enquire ETA
Brand: DAHUA
Model: SF1005L
Dimensions: 12 × 10 × 7 cm
EAN: 6923172590404
Product code: 949940

DAHUA

Please Inquire

R626 incl. VAT: R720

We will email you when the product is back in stock.

Key features

> Supports five 10/100 Mbps adaptive ports
> Small and light, it is easy to carry and has multiple chips embedded in it
> Easy to operate

Tags: dahua switches , dahua switche

Description
Specifications

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design

Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play

Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance

All ports can transmit streams at high speeds without delay.

Easy Installation

Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	5
Uplink ports quantity	1
Network
10G support	No
Copper ethernet cabling technology	10BASE-T
Cable types supported	Cat5e, Cat6
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
Data transmission
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Forwarding rate	0.744 Mpps
Packet buffer memory	0.768 MB
Design
Rack mounting	No
Form factor	Desktop
Product colour	Light grey
LED indicators	Yes
Performance
Mean time between failures (MTBF)	952.5 h
Power
Power source	DC/PoE
DC input voltage	5 V
Input current	1 A
Power consumption (typical)	0.1 W
Power consumption (max)	0.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	86.4 mm
Depth	52 mm
Height	23 mm
Weight	120 g
Packaging data
Package width	110 mm
Package depth	93 mm
Package height	65 mm
Package weight	230 g
