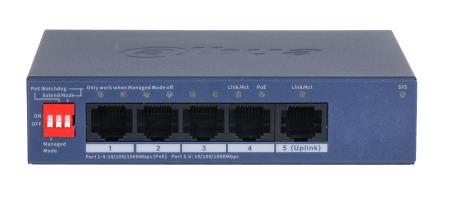

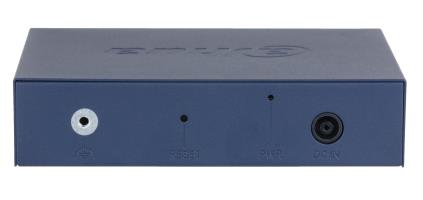

Switch DAHUA CS4005-4GT-36 Switch type Managed Switch layer L2 Form factor Desktop/Wall-Mounting 5xRJ-45 ports RJ-45 Ports Type Gigabit Ethernet (10/100/1000) 5xGigabit Ethernet (copper) ports quantity Power over Ethernet (PoE) Yes 4xPower over Ethernet (PoE) ports quantity Total Power over Ethernet (PoE) budget 36 W CS4005-4GT-36

• 4 × RJ45 Gigabit PoE ports, 1 × RJ45 Gigabit ports
• 36 W total PoE budget, 802.3af/at on all PoE ports
• DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
• Wide operating temperature ranging from –10 °C to 55 °C
• Supports VLAN and loop protection
• WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
• Easy config to auto detect and set up network and systems

Summary: Dahua Technology CS4005-4GT-36. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting | Vendor Homepage: https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4005-4gt-36 | Cloud-managed: Yes | Switch layer: L2 | Switch type: Managed | System event log: Yes | Web-based management: Yes | Basic switching RJ-45 Ethernet ports quantity: 5 | Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (copper) ports quantity: 5 | Power connector: DC-in jack | 10G support: No | Broadcast storm control: Yes | Flow control support: Yes | Networking standards: IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x | Number of VLANs: 32 | Port mirroring: Yes | VLAN support: Yes | Forwarding rate: 7.4 | Jumbo frames: 9216 | Jumbo frames support: Yes | MAC address table: 2000 | Packet buffer memory: 4 | Switching capacity: 10 | DHCP features: DHCP client | Loop protection: Yes | Form factor: Desktop/Wall-Mounting | Housing material: Metal | LED indicators: Yes | Product colour: Blue | Rack mounting: No | Reset button: Yes | Mean time between failures (MTBF): 2039146.92 | DC input voltage: 53 | Input current: 0.8 | Power consumption (max): 42.4 | Power source: DC/PoE | Power supply included: Yes | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) ports quantity: 4 | Total Power over Ethernet (PoE) budget: 36 | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): -10 - 55 | Storage relative humidity (H-H): 5 - 95 | Storage temperature (T-T): -40 - 70 | Depth: 115 | Height: 27 | Weight: 200 | Width: 84 | Cables included: AC | Quick start guide: Yes | Package depth: 195 | Package height: 83 | Package weight: 720 | Package width: 114 | Product Net Weight: 0.2 | Shipping Box Height: 8.5 | Unit Calculated Volume: 0.001906 | Unit Calculated Weight: 0.7 | Units per Pallet: 0 | Units per Shipping Box: 1 | Model name: CS4005-4GT-36
