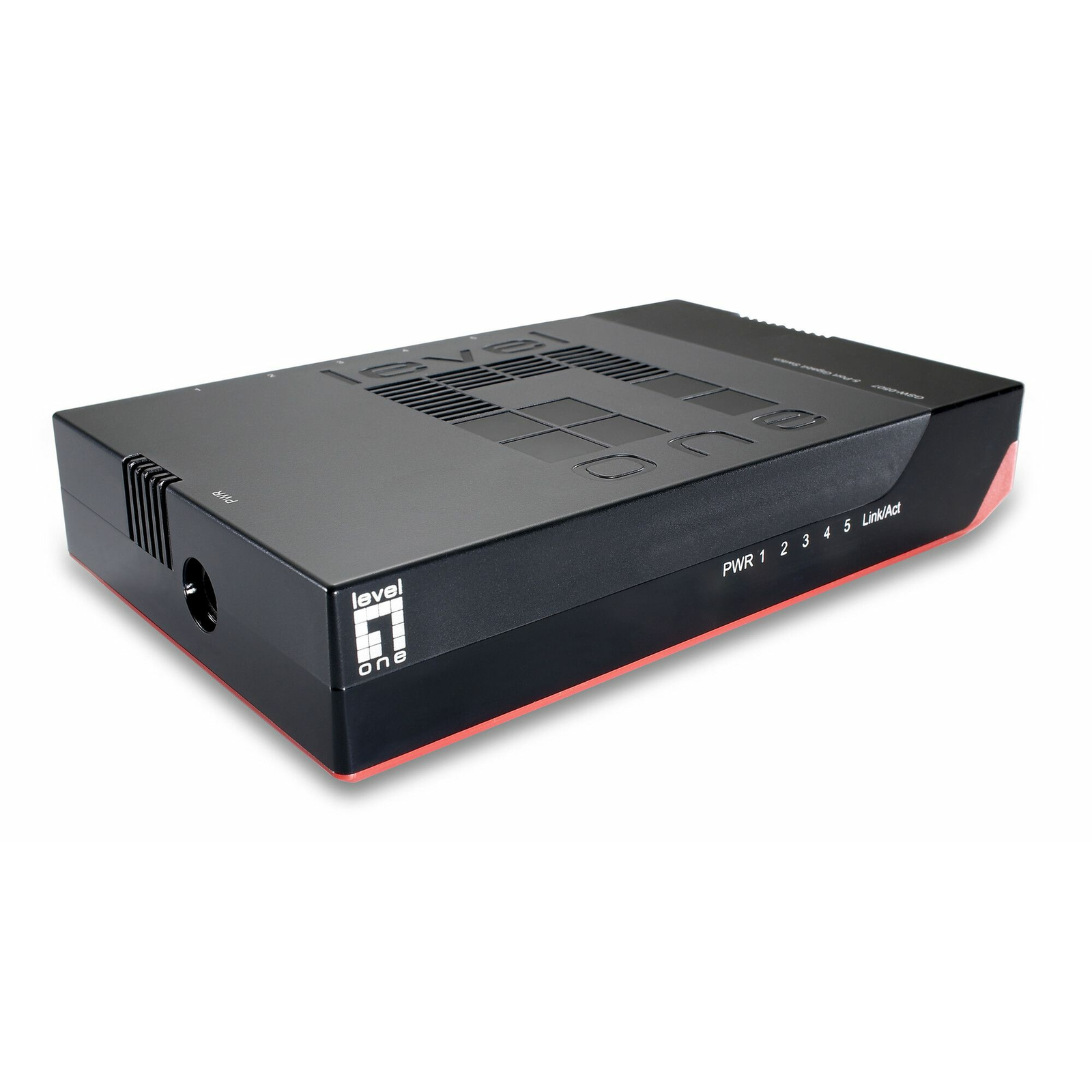

LevelOne 5-Port Gigabit Ethernet Switch

LevelOne 5-Port Gigabit Ethernet Switch
✅ In Stock


Backordered goods
Arrives by 21 September (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne 5-Port Gigabit Ethernet Switch
incl. VAT: R1,500
R1,304
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: GSW-0507
  • EAN: 4015867225134
  • Warranty: 1 year

Available Options

Key features

  • 5 Gigabit Ethernet ports
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Provides wall or desktop mounting
  • Quick and easy installation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
The LevelOne GSW-0507 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving Features The GSW-0507 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish Design The stylish, compact wall-mountable housing of GSW-0507 fits any working environment. It comes with 5 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to Use The GSW-0507 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1488][-844]
Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Data transmission
MAC address table 8192 entries
Switching capacity 10 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148000 pps
Packet forwarding rate (10 Mbps) 14880 pps
Packet buffer memory 1 MB
Design
Rack mounting No
Stackable No
Product colour Black, Red
LED indicators Activity, Link, Power
Wall mountable Yes
Performance
Flash memory 1024 MB
Power
Power supply included No
Input current 1 A
Power consumption (typical) 3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 149.5 mm
Depth 89 mm
Height 27 mm
Weight 135 g
Packaging content
Quick start guide Yes
Packaging data
AC adapter included Yes
Package type Box
Package width 92 mm
Package depth 142 mm
Package height 92 mm
Package weight 300 g
Technical details
Pallet net height 169 cm
Pallet net length 80 cm
Pallet net width 120 cm
Certificates
Certification CE, RoHS, FCC
Logistics data
Country of origin China
Harmonized System (HS) code 85176990
