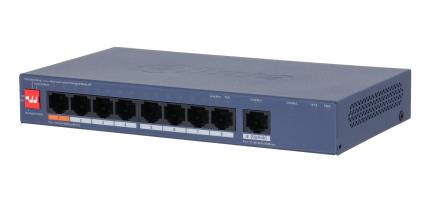

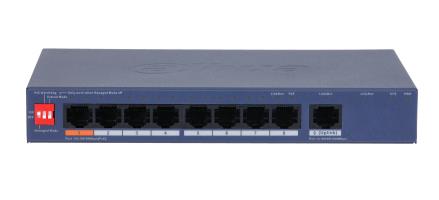

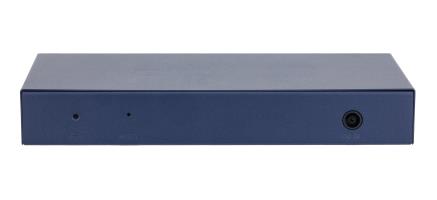

Dahua Technology CS4009-8ET1GT-60 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Blue – photo 1

✅ In Stock

DAHUA

Dahua Technology CS4009-8ET1GT-60 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Blue

R1,256

incl. VAT: R1,444

Stock: Backordered - delivers in 10-15 days
Brand: DAHUA
Model: CS4009-8ET1GT-60
Dimensions: 25 × 14 × 11 cm
EAN: 6937552421424
Product code: 772564

DAHUA

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R1,256 incl. VAT: R1,444

Qty

Save PDF

Key features

8 × RJ-45 10/100 Mbps PoE ports, 1 × RJ-45 Gigabit port
60 W total PoE budget, 802.3af/at on all PoE port, additional Hi-PoE on orange port
DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
Wide operating temperature ranging from –10 °C to 55 °C
Supports VLAN and loop protection
WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
Easy config to auto detect and set up network and security systems

Tags: dahua switches , dahua switche

Description
Specifications

8 × RJ-45 10/100 Mbps PoE ports, 1 × RJ-45 Gigabit port
60 W total PoE budget, 802.3af/at on all PoE port, additional Hi-PoE on orange port
DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
Wide operating temperature ranging from –10 °C to 55 °C
Supports VLAN and loop protection
WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
Easy config to auto detect and set up network and security systems

Management features
Switch type	Managed
Switch layer	L2
Web-based management	Yes
Cloud-managed	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	8
Gigabit Ethernet (copper) ports quantity	1
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q
10G support	No
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
VLAN support	Yes
Number of VLANs	32
Data transmission
MAC address table	8000 entries
Switching capacity	3.6 Gbit/s
Forwarding rate	2.68 Mpps
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
Loop protection	Yes
IP-MAC-Port binding	Yes
Design
Rack mounting	No
Form factor	Desktop/Wall-Mounting
Product colour	Blue
Housing material	Metal
LED indicators	Yes
Performance
Mean time between failures (MTBF)	3253425 h
Power
Power source	DC/PoE
Power supply included	Yes
DC input voltage	53 V
Input current	1.22 A
Power consumption (max)	63 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	103.3 mm
Depth	184.6 mm
Height	27 mm
Packaging content
Cables included	AC
Manual	Yes
Packaging data
Package width	137 mm
Package depth	252 mm
Package height	113 mm
Package weight	920 g
Certificates
Compliance certificates	CE
