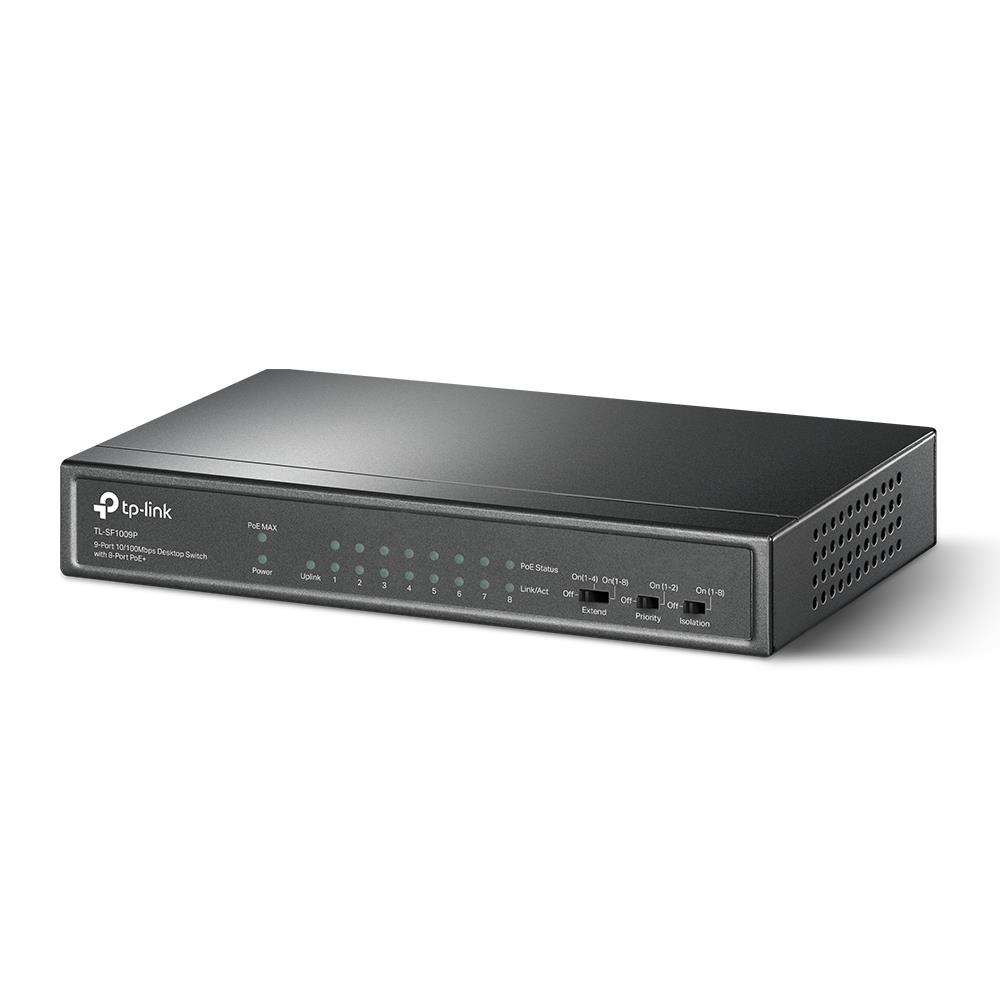

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ – photo 1

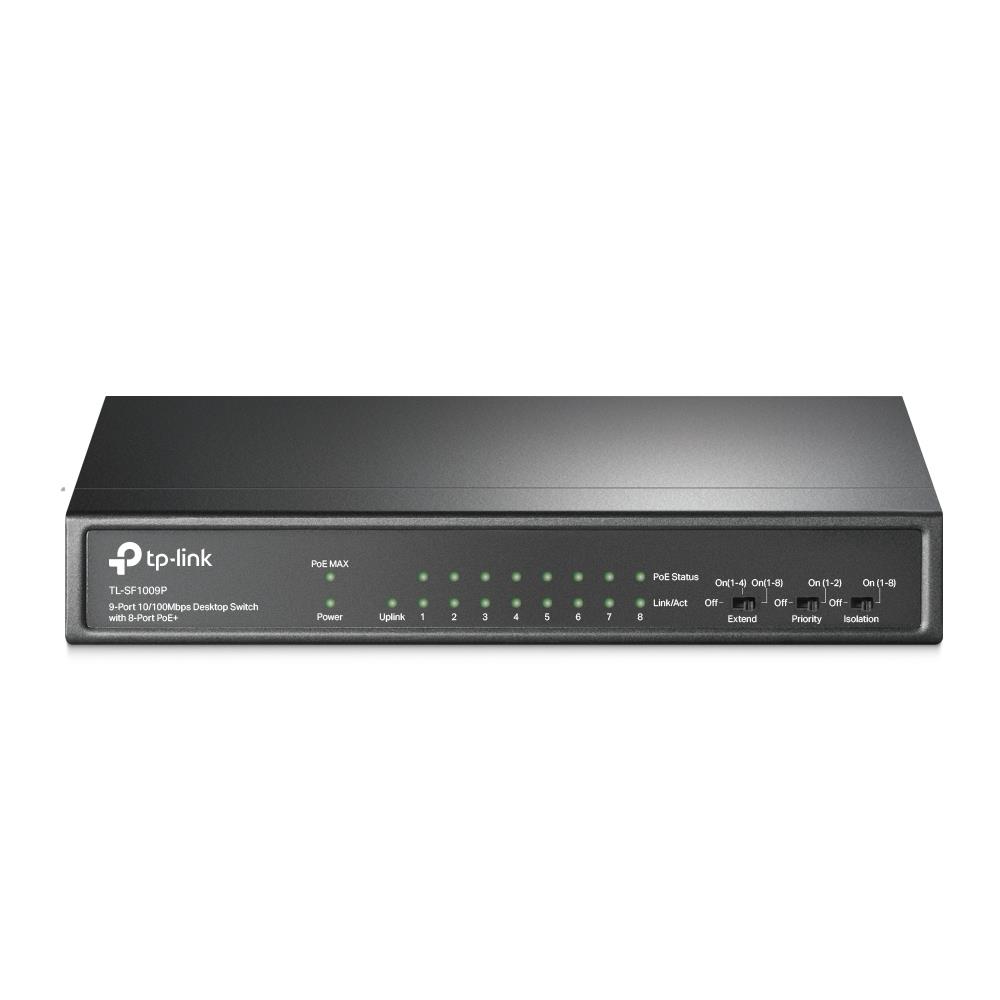

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ – photo 2

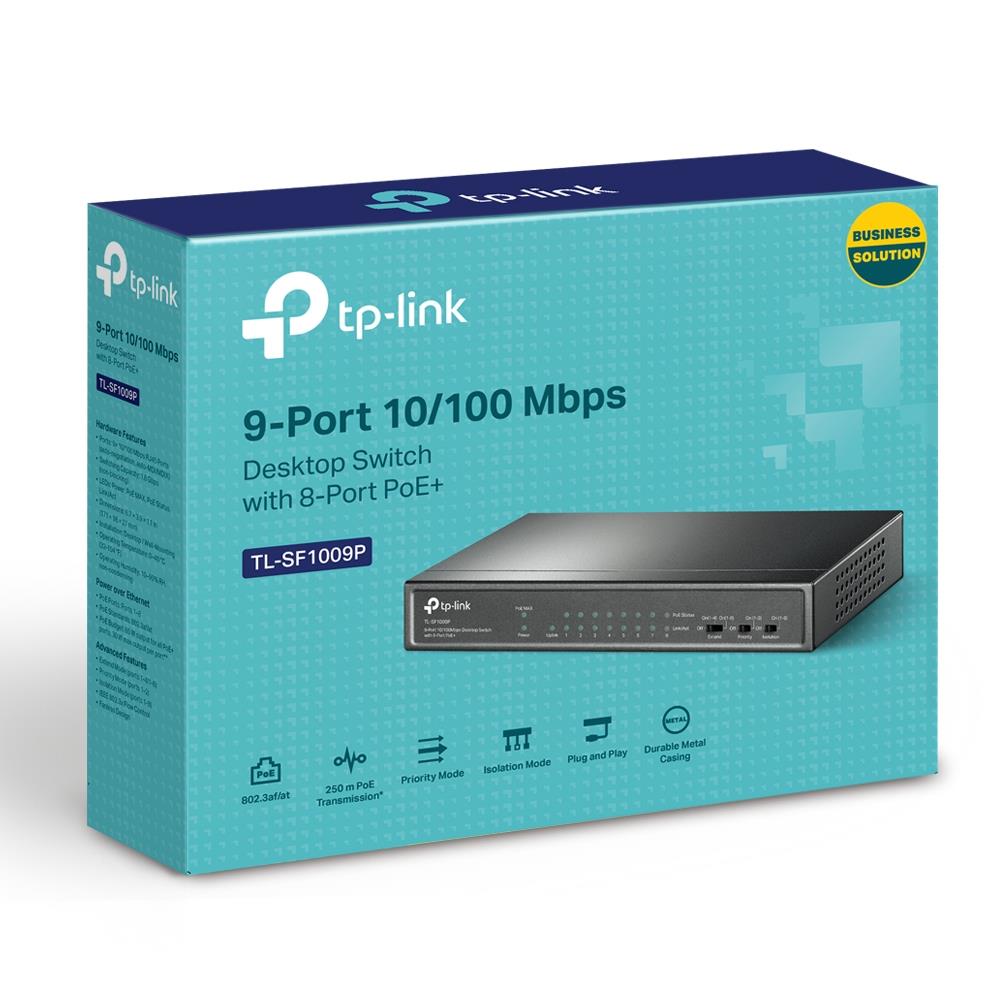

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ – photo 3
TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ – photo 4
Out of Stock / Please Enquire ETA
TP-LINK

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

R1,345
incl. VAT: R1,547
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: TP-LINK
  • Model: TL-SF1009P
  • Weight: 0.97 kg
  • Dimensions: 28 × 7 × 23 cm
  • EAN: 6935364052966
  • Product code: 772634
Please Inquire
R1,345 incl. VAT: R1,547
We will email you when the product is back in stock.
SavePDF

Key features

  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports*
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required

Description

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

Specifications

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Fast Ethernet (copper) ports quantity 9
Power connector DC-in jack
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Cable types supported Cat3, Cat4, Cat5, Cat5e
Full duplex Yes
Half duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
Data transmission
MAC address table 2000 entries
Switching capacity 1.6 Gbit/s
Forwarding rate 1.3392 Mpps
Store-and-forward Yes
Design
Rack mounting No
Stackable No
Product colour Black
Housing material Metal
LED indicators Activity, Link, PoE, Power
Wall mountable Yes
Performance
Fanless Yes
Power
Power source DC/PoE
Power supply included No
AC input voltage 220 V
AC input frequency 50 Hz
DC input voltage 53.5 V
Input current 1.31 A
Power consumption (max) 77.08 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 65 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 262.84 BTU/h
Weight & dimensions
Width 171 mm
Depth 98 mm
Height 27 mm
Packaging content
User guide Yes
Packaging data
AC adapter included Yes
Package type Box
Package width 223 mm
Package depth 280 mm
Package height 68 mm
Package weight 980 g
Certificates
Compliance certificates Federal Communications Commission (FCC), CE, RoHS
Certification FCC, CE, RoHS
Logistics data
Harmonized System (HS) code 85176990
Sustainability
Sustainability compliance Yes
