Switch DAHUA DH-CS4010-8ET2GT-60 Switch layer L2 8xRJ-45 ports RJ-45 Ports Type Fast Ethernet (10/100) 2xGigabit Ethernet (copper) ports quantity 8xPower over Ethernet (PoE) ports quantity Total Power over Ethernet (PoE) budget 60 W CS4010-8ET2GT-60

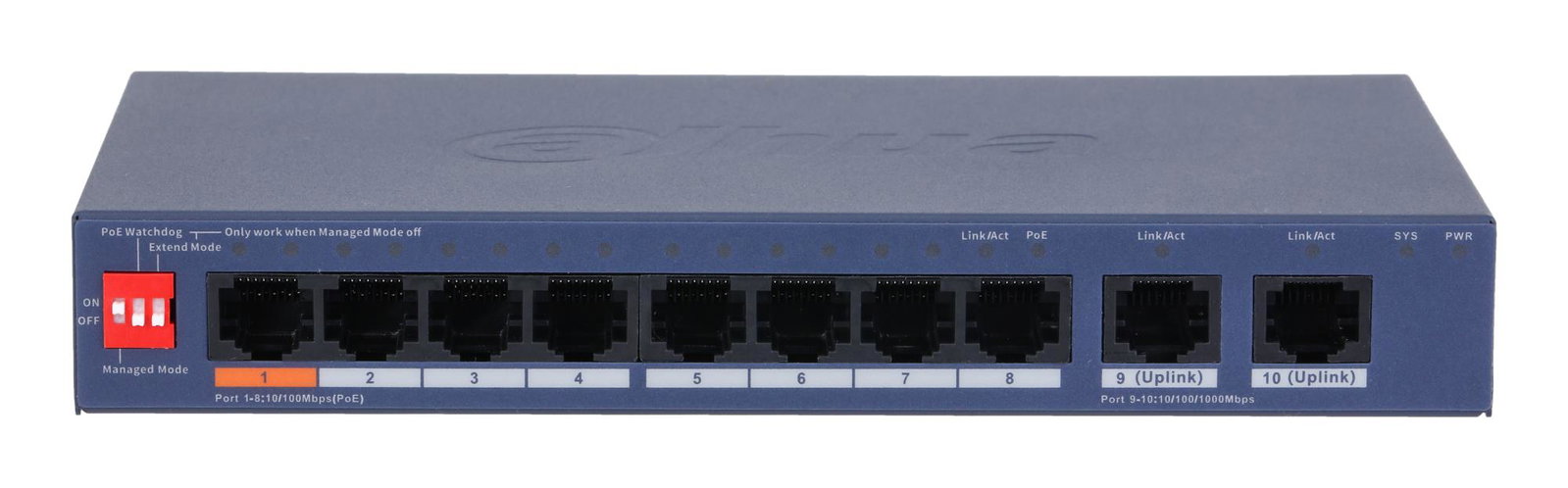

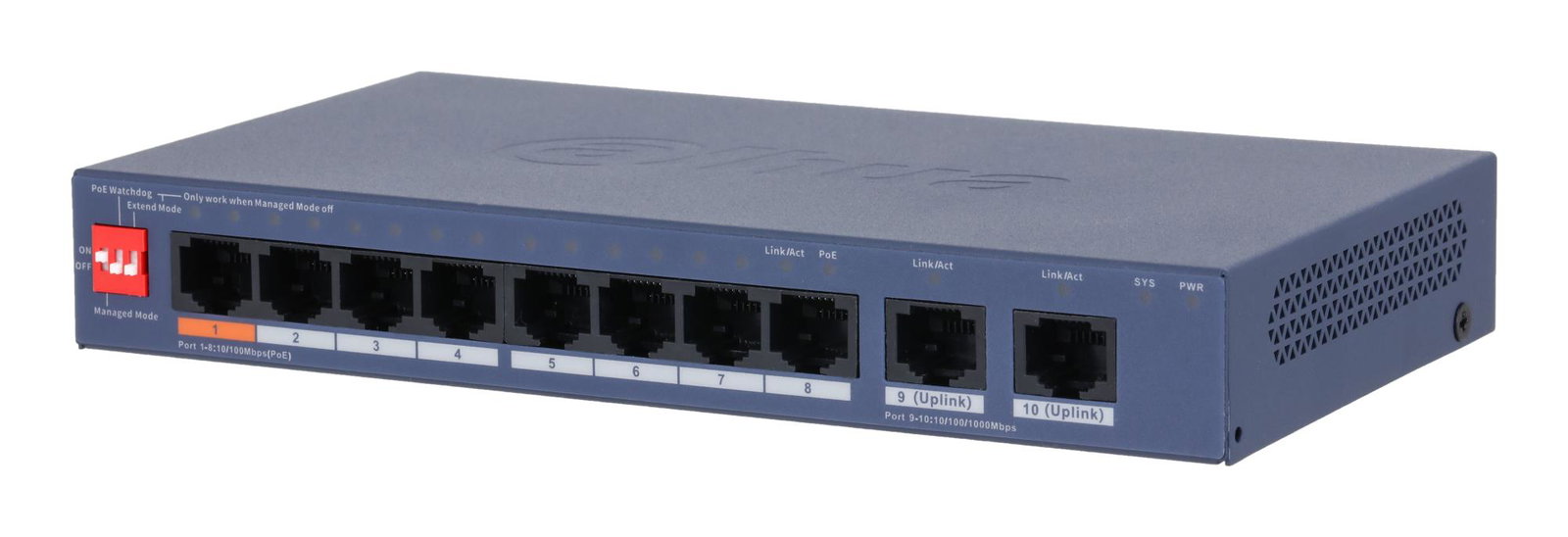

• 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports
• 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port
• DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
• Wide operating temperature ranging from –10 °C to 55 °C
• Supports VLAN and loop protection
• WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
• Easy config to auto detect and set up network and security systems

Summary: Dahua Technology CS4010-8ET2GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable | Vendor Homepage: https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4010-8et2gt-60 | Cloud-managed: Yes | Switch layer: L2 | Switch type: Managed | Web-based management: Yes | Basic switching RJ-45 Ethernet ports quantity: 10 | Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) | Fast Ethernet (copper) ports quantity: 8 | Gigabit Ethernet (copper) ports quantity: 2 | Power connector: DC-in jack | 10G support: No | Broadcast storm control: Yes | Ethernet LAN data rates: 10,100,1000 | Flow control support: Yes | Networking standards: IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x | Number of VLANs: 32 | Port mirroring: Yes | VLAN support: Yes | Forwarding rate: 4.17 | Jumbo frames: 9216 | Jumbo frames support: Yes | MAC address table: 8000 | Packet buffer memory: 4 | Switching capacity: 5.6 | DHCP features: DHCP client | IP-MAC-Port binding: Yes | Loop protection: Yes | Multicast support: Yes | Housing material: Metal | LED indicators: Yes | Product colour: Blue | Rack mounting: No | Reset button: Yes | Wall mountable: Yes | Mean time between failures (MTBF): 2837361 | DC input voltage: 53 | Input current: 1.22 | Power source: DC/PoE | Power supply included: Yes | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) ports quantity: 8 | Total Power over Ethernet (PoE) budget: 60 | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): -10 - 55 | Storage relative humidity (H-H): 5 - 95 | Storage temperature (T-T): -40 - 70 | Depth: 184.6 | Height: 27 | Weight: 360 | Width: 103.3 | Cables included: AC | Manual: Yes | Package depth: 252 | Package height: 113 | Package weight: 920 | Package width: 137 | Compliance certificates: CE | Product Net Weight: 0.36 | Shipping Box Height: 25 | Unit Calculated Volume: 0.004615 | Unit Calculated Weight: 1 | Units per Pallet: 0 | Units per Shipping Box: 20 | Model name: CS4010-8ET2GT-60
