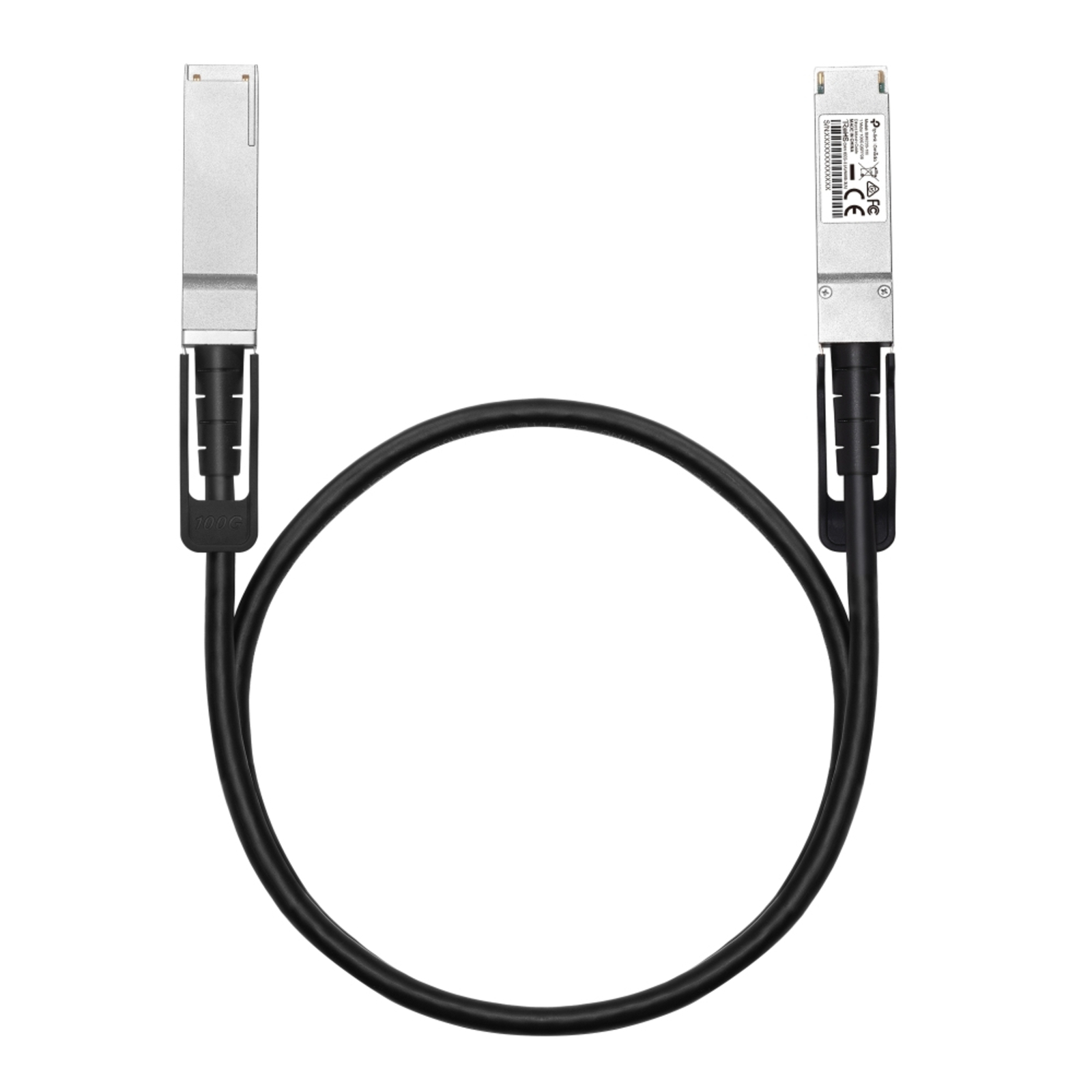

TP-Link Omada SM9220-1M InfiniBand/fibre optic cable QSFP28 Twinax Black

R2,738

incl. VAT: R3,149

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: SM9220-1M(UN)
EAN: 8885020625516
Product code: 609469

TP-LINK

Please Inquire

R2,738 incl. VAT: R3,149

We will email you when the product is back in stock.

Key features

100 Gbps data transmission
QSFP28 connector on both sides
Up to 1 m transmission distance
Wide operating temperature
Hot Swappable

Tags: tp-link wifi access points , tp-link wifi access point

Description
Specifications

SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.

Features
Cable length	1 m
Cable type	Twinax
Connector 1	QSFP28
Connector 2	QSFP28
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Jacket material	Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC)
AWG wire size	30
Cable shape	Round
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate	100 Gbit/s
Conductor material	Copper
Plug and Play	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Bending radius	3.3 cm
Packaging content
Quantity per pack	1 pc(s)
Other features
Networking standards	IEEE 802.3, IEEE 802.3ba, IEEE 802.3bj
