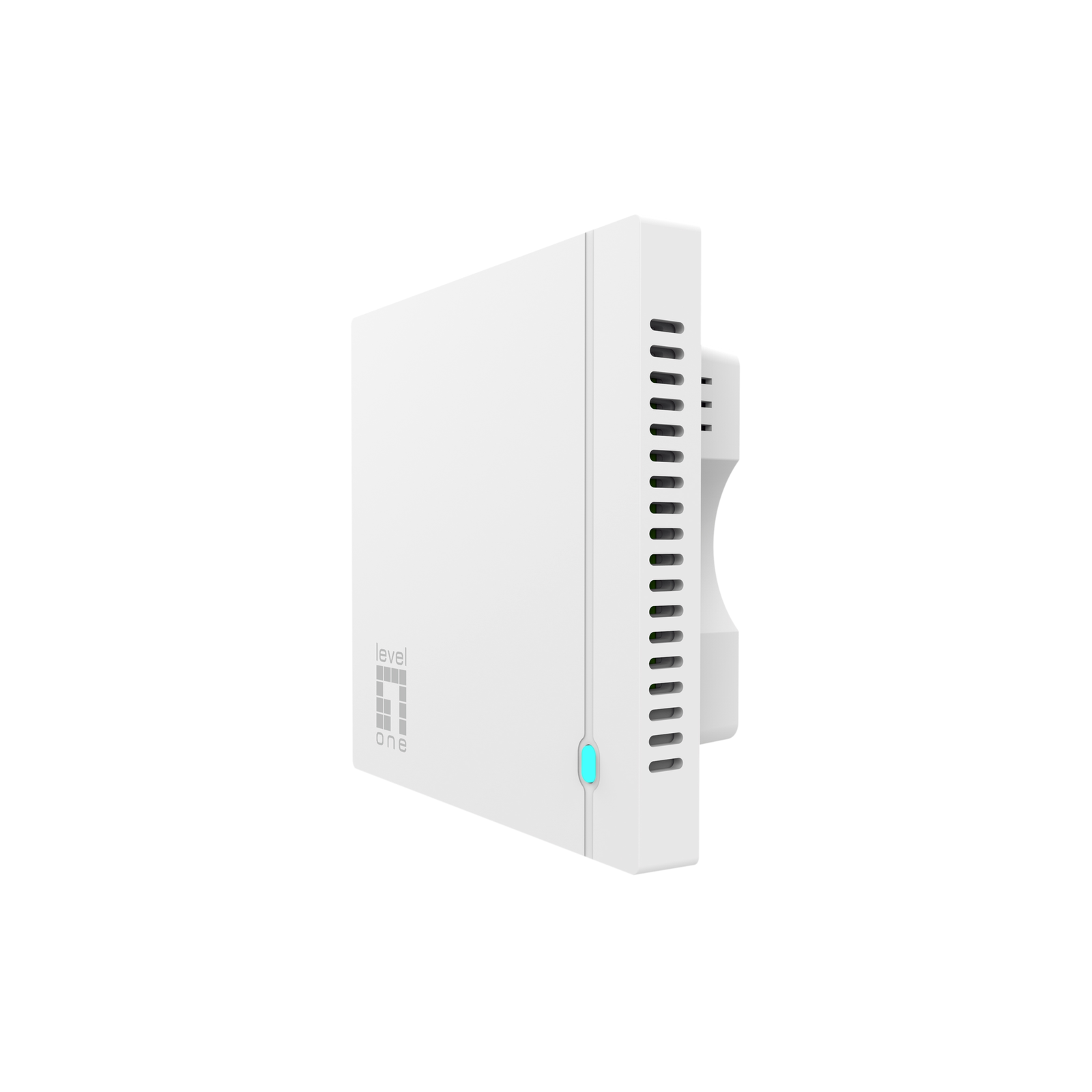

LevelOne AX1800 Dual Band Wi-Fi 6 In-Wall PoE Wireless Access Point

R2,738

incl. VAT: R3,149

Stock: Backordered - delivers in 10-15 days
Brand: LEVELONE
Model: WAP-8231
EAN: 4015867235690
Product code: 611797

LEVELONE

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R2,738 incl. VAT: R3,149

Qty

Save PDF

Key features

Provides wireless speeds of up to 1800Mbps(574Mbps in 2.4GHz/1201Mbps in 5GHz)
OFDMA and MU-MIMO support
Compatible with IEEE 802.11a/b/g/n/ac/ax Wave 2 wireless standards
Dual band technology reduces interference, providing reliable connections
IEEE 802.3af PoE compliant to simplify deployment and installation
Provides up to 8 SSIDs to separate network traffic and enhance security
Supports WPA3 encryption
Wall-mounted design fits standard 86x86mm socket

Tags: levelone wifi access points , levelone wifi access point

Description
Specifications

The LevelOne new access point, the WAP-8231, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point - just like a power outlet - is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 1800 Mbps. The WAP-8231 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2010 / WAC-2013 WLAN controller.

LevelOne WAP-8231 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.

Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 -2.484, 5.18 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Cabling technology	10/100/1000Base-T(X)
Channels quantity	165 channels
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Operating modes	AP Mode
Security
Security algorithms	WPA2-AES, WPA3
Number of SSID supported	8
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
USB connector type	USB Type-C
WAN connection	Ethernet (RJ-45)
Power
Power over Ethernet (PoE)	Yes
Power consumption (typical)	14 W
Design
Placement	In-wall
Product colour	White
LED indicators	Wi-Fi
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	3 dBi
Performance
Flash memory	16 MB
Internal memory	128 MB
Technical details
Master (outer) cases per pallet (air)	10 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	189 cm
Certificates
Compliance certificates	CE, RoHS, UKCA
Weight & dimensions
Width	87 mm
Depth	86 mm
Height	31.5 mm
Weight	138 g
Packaging data
Package width	120 mm
Package depth	110 mm
Package height	65 mm
Package weight	240 g
Package type	Box
Packaging content
Mounting kit	Yes
Interface adapter included	USB Type-C male - RJ-45 female
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Country of origin	China
Master (outer) case width	515 mm
Master (outer) case length	348 mm
Master (outer) case height	580 mm
Master (outer) case gross weight	25 kg
Products per master (outer) case	100 pc(s)
Sustainability
Sustainability compliance	Yes
