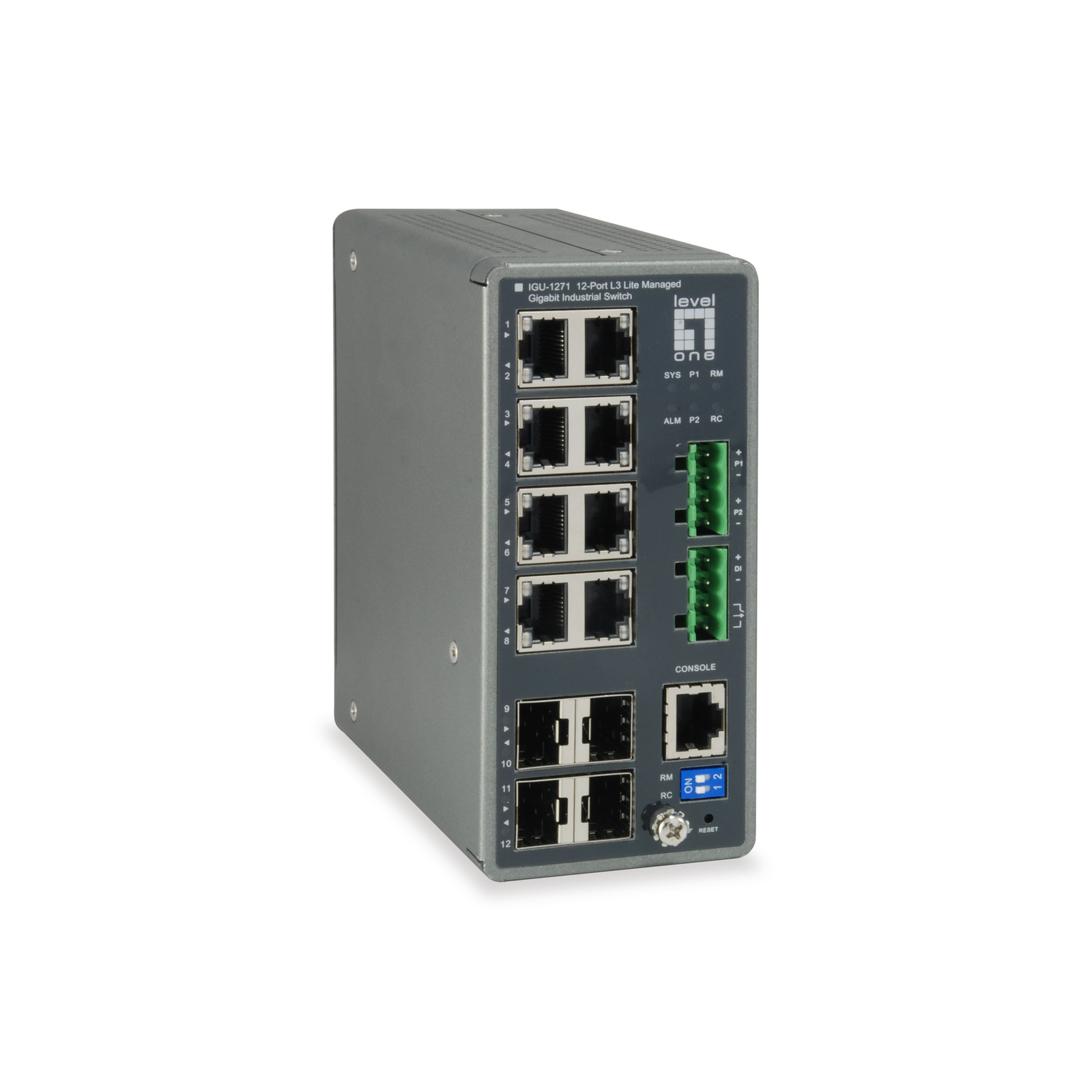

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Rail, -40°C to 75°C

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Rail, -40°C to 75°C
✅ In Stock


Backordered goods
Arrives by 19 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Rail, -40°C to 75°C
incl. VAT: R17,588
R15,294
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: IGU-1271
  • EAN: 4015867202661
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • 8 Gigabit PoE ports and 4 Gigabit SFP slots
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Supports Operations, Administration, and Maintenance (OAM) mechanisms
  • Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
  • 40°C to 75°C operating temperature range
  • Redundant power inputs with Terminal Block
Tags: levelone switches , levelone switche
The LevelOne IGU-1271, a L3 Lite Managed Industrial Switch with 8 ports of Gigaibit RJ45 and 4 ports of Gigabit SFP. This switch is offering full suite of L2 management features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1488][-844]
Management features
Switch type Managed
Switch layer L3
Web-based management Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
SFP module slots quantity 4
Console port RJ-45
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Ethernet Ring Protection Switching (ERPS) Yes
VLAN support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 24 Gbit/s
Forwarding rate 17.856 Mpps
Store-and-forward Yes
Static route Yes
Jumbo frames support Yes
Jumbo frames 9216
Packet buffer memory 0.5 MB
Security
DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL) Yes
Loop protection Yes
BPDU filtering/protection Yes
Root protection Yes
Protocols
Management protocols SNMP, Web, Telnet, SSH
Supported network protocols IPv4/IPv6
Design
Product colour Grey
Reset button Yes
LED indicators Alarm, Power, Status, System
DIN rail mounting Yes
Safety UL,CB
Performance
Internal memory 128 MB
Flash memory 32 MB
Firmware upgradeable Yes
Remarking priority Y
sFlow Yes
Mean time between failures (MTBF) 476206 h
Power
DC input voltage 48 - 57 V
Power consumption (max) 239.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 36.03 BTU/h
Weight & dimensions
Width 62 mm
Depth 130 mm
Height 135 mm
Weight 700 g
Packaging content
Cables included LAN (RJ-45)
Quick start guide Yes
Packaging data
Package type Box
Resource CD Yes
Package width 255 mm
Package depth 207 mm
Package height 85 mm
Package weight 900 g
Certificates
Certification FCC, CE, DMS
Logistics data
Country of origin Taiwan
Master (outer) case width 520 mm
Master (outer) case length 445 mm
Master (outer) case height 220 mm
Harmonized System (HS) code 85176990
Master (outer) case gross weight 2.4 kg
Products per master (outer) case 10 pc(s)
