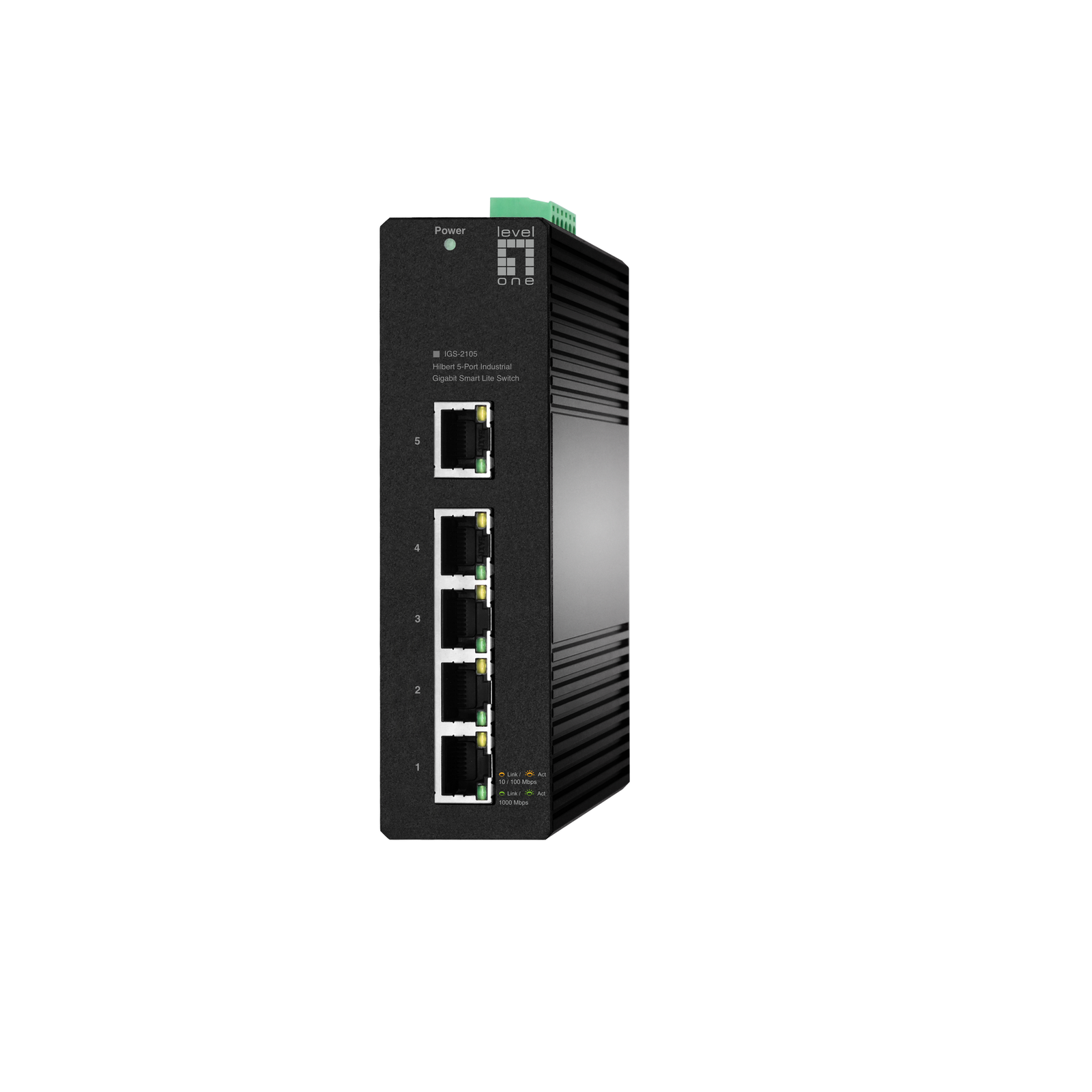

LevelOne Hilbert 5-Port Industrial Gigabit Smart Lite Switch

LevelOne Hilbert 5-Port Industrial Gigabit Smart Lite Switch
✅ In Stock


Backordered goods
Arrives by 21 September (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne Hilbert 5-Port Industrial Gigabit Smart Lite Switch
incl. VAT: R3,498
R3,042
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: IGS-2015
  • EAN: 4015867236147
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • 5 Gigabit Ethernet ports
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 2K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • -40°C to 75°C operating temperature range
  • Redundant power inputs with Terminal Block
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management
Tags: levelone switches , levelone switche
The LevelOne IGS-2105 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2105 delivers 5 (10M/100M/1G) RJ45 ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2105 provides high HW performance and environment flexibility for Enterprises. IGS-2105 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1488][-844]
Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 5
Uplink ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 100BASE-TX, 10BASE-T, 1000BASE-T
Port mirroring Yes
Full duplex Yes
Half duplex Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Auto-negotiation Yes
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
VLAN support Yes
Virtual LAN features Tagged VLAN
Number of VLANs 32
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 1.5 MB
Security
IGMP snooping Yes
Queue scheduling algorithms Priority queuing (PQ)
Multicast features
Multicast support Yes
Design
Product colour Black
LED indicators Activity, Link, Power
International Protection (IP) code IP30
DIN rail mounting Yes
Performance
Flash memory 2 MB
Noise level 0 dB
Fanless Yes
Mean time between failures (MTBF) 43800 h
Power
Power source DC
Power supply included No
Redundant power supply (RPS) support Yes
DC input voltage 12 - 57 V
Power consumption (typical) 5 W
Surge protection Yes
Surge protection voltage 4 kV
Power protection features Surge protection
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 17.06 BTU/h
Weight & dimensions
Width 136 mm
Depth 108 mm
Height 38.5 mm
Weight 430 g
Packaging content
Quick start guide Yes
Packaging data
Terminal block included Yes
Package type Box
DIN rail included Yes
Package width 191 mm
Package depth 135 mm
Package height 60 mm
Package weight 680 g
Technical details
Layers per pallet (air) 16 pc(s)
Pallet gross length 80 cm
Pallet gross width 120 cm
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
Pallet gross height 154.4 cm
Country of origin China
Master (outer) case width 480 mm
Master (outer) case length 395 mm
Master (outer) case height 350 mm
Harmonized System (HS) code 8517620090
Master (outer) case gross weight 24 kg
Products per master (outer) case 34 pc(s)
Sustainability
Sustainability compliance Yes
