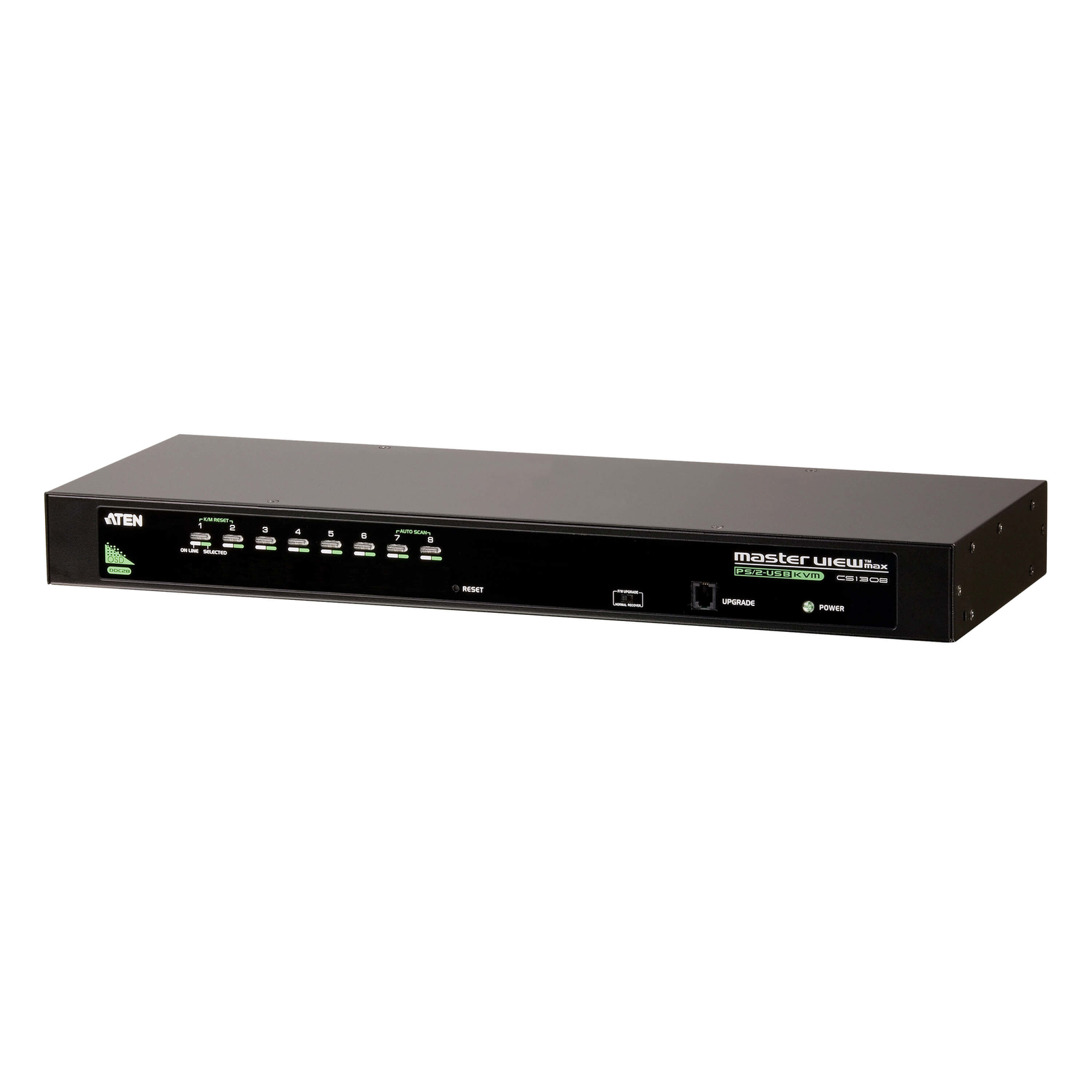

ATEN 8-Port USB - PS/2 VGA KVM Switch

ATEN 8-Port USB - PS/2 VGA KVM Switch
ATEN 8-Port USB - PS/2 VGA KVM Switch
ATEN 8-Port USB - PS/2 VGA KVM Switch
✅ In Stock
ATEN 8-Port USB - PS/2 VGA KVM Switch
ATEN 8-Port USB - PS/2 VGA KVM Switch
ATEN 8-Port USB - PS/2 VGA KVM Switch


Backordered goods
Arrives by 12 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
ATEN 8-Port USB - PS/2 VGA KVM Switch
incl. VAT: R4,956
R4,309
  • Stock: In Stock
  • Brand: ATEN
  • Model: CS1308
  • EAN: 4710423775916
  • Warranty: 1 year
ATEN

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers
  • Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Tags: aten switches , aten switche
The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1477][-881]
Ports & interfaces
Number of computers controlled 64
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
Console ports VGA (D-Sub)
VGA (D-Sub) ports quantity 8
DC-in jack Yes
Performance
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Scan interval 1,255 s
DDC2B support Yes
Firmware upgradeable Yes
Design
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Metal
Cascadable Yes
Push button Yes
Hot keys Yes
Display
Built-in display No
Power
Power source DC
Input voltage 5.3 V
Power consumption (typical) 5 W
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Other operating systems supported Yes
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 161.3 mm
Depth 437.2 mm
Height 44 mm
Weight 1.89 kg
Packaging data
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 2.69 kg
Packaging content
Quick installation guide Yes
AC adapter included Yes
Rack mount kit Yes
Rubber feet Yes
Logistics data
Master (outer) case net weight 6.72 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 8.7 kg
Products per master (outer) case 3 pc(s)
