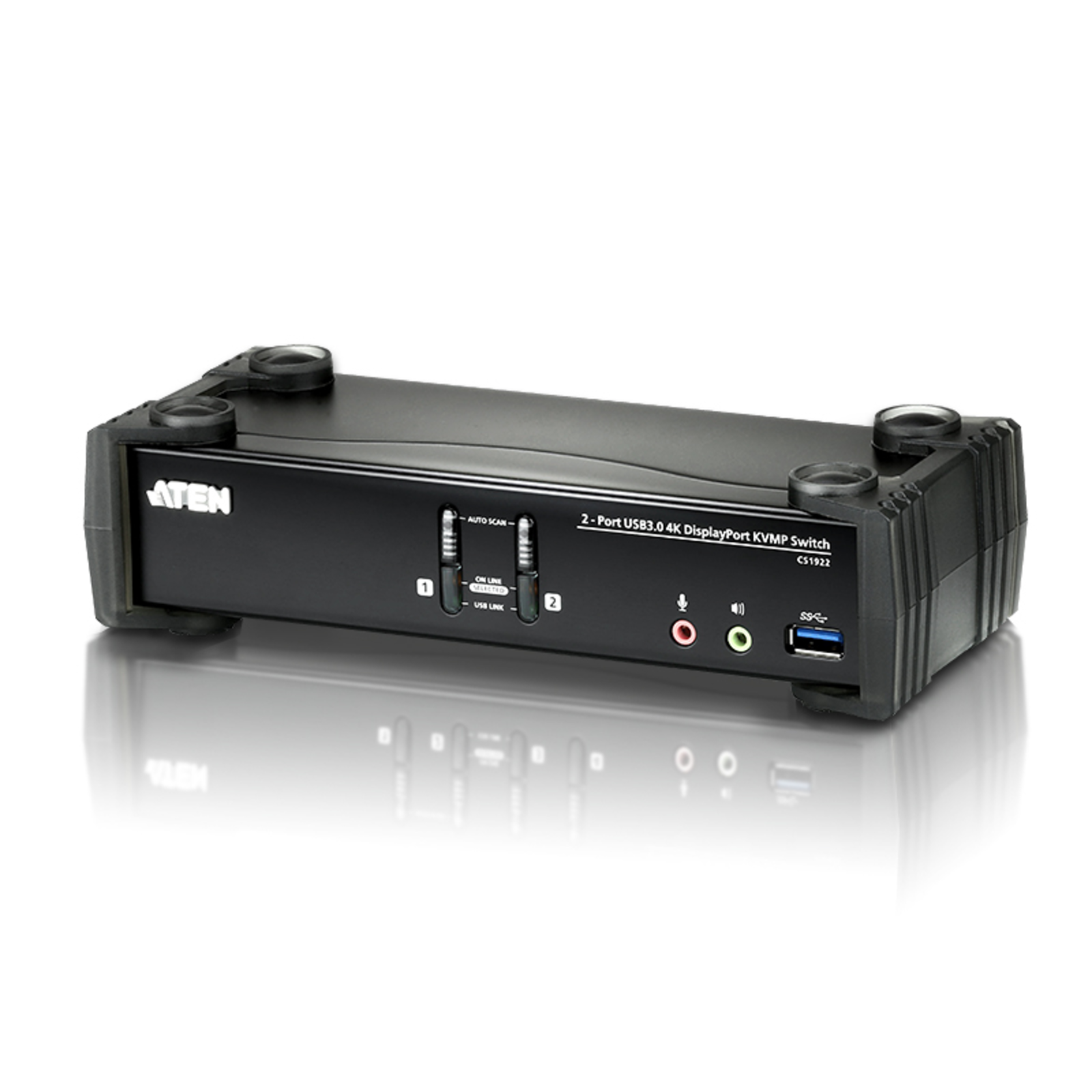

ATEN 2-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included)

R3,927

incl. VAT: R4,516

Stock: Backordered - delivers in 10-15 days
Brand: ATEN
Model: CS1922-AT-G
EAN: 4719264644764
Product code: 412463

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R3,927 incl. VAT: R4,516

Qty

Save PDF

Key features

Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Computer selection via front panel pushbuttons, hotkeys and mouse1
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector3
DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4

Tags: aten switches , aten switche

Description
Specifications

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm mic, DisplayPort, USB B
DisplayPorts quantity	3
Console USB ports quantity	2
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-B
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio connections	Yes
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Yes
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Scan interval	1,99 s
HDCP	Yes
Hot-Plug support	Yes
Design
Product colour	Black
Housing material	Metal, Plastic
LED indicators	Operation, USB
Push button	Yes
Display
Built-in display	No
Power
Power source	DC
Output voltage	5 V
Power consumption (typical)	2 W
External power adapter	Yes
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	88 mm
Depth	210 mm
Height	55.5 mm
Weight	1.42 kg
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.86 kg
Packaging content
Cables included	Audio (3.5mm), DisplayPort, USB
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case net weight	7.1 kg
Harmonized System (HS) code	85176200
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	9.8 kg
Products per master (outer) case	5 pc(s)
