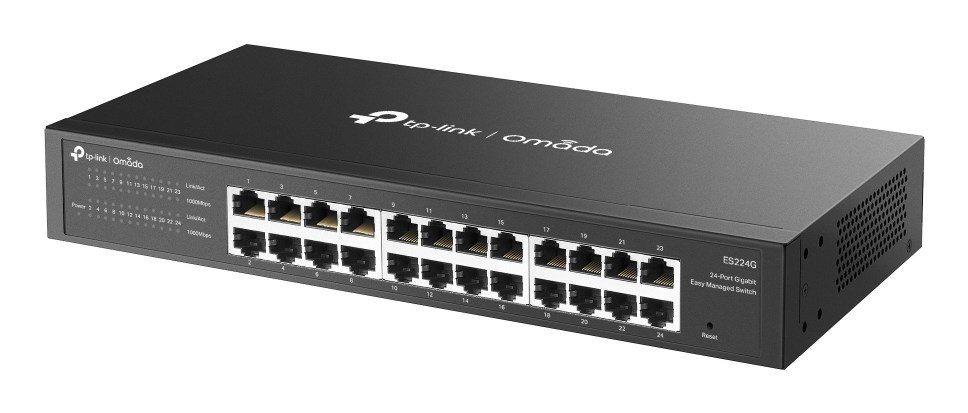

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black – photo 1

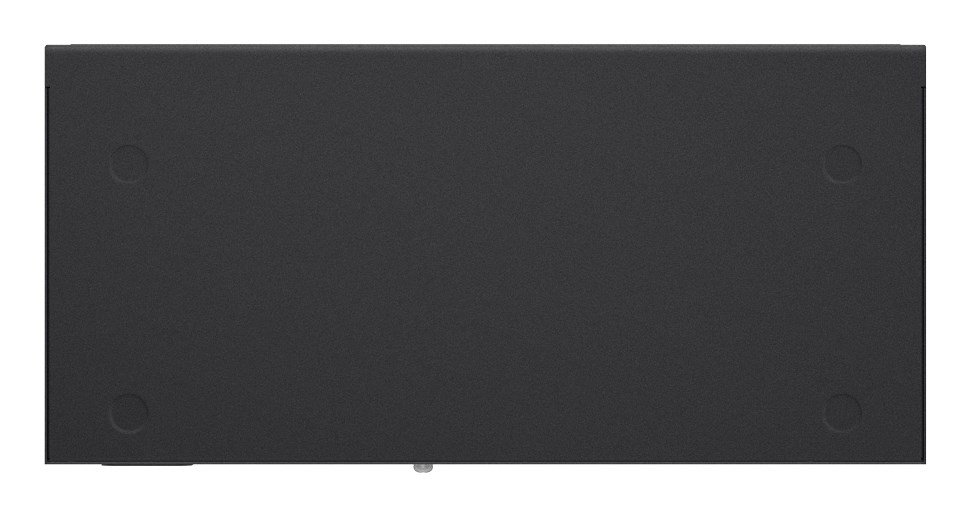

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black – photo 2

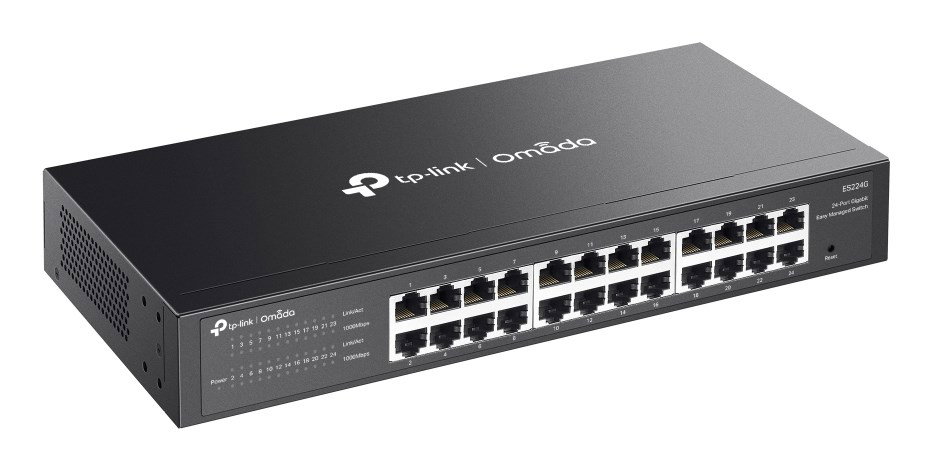

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black – photo 3

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black – photo 4

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black – photo 5

Out of Stock / Please Enquire ETA

TP-LINK

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

R2,476

incl. VAT: R2,847

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: ES224G
Weight: 1.97 kg
Dimensions: 24 × 9 × 35 cm
EAN: 1210002600705
Product code: 375633

TP-LINK

Please Inquire

R2,476 incl. VAT: R2,847

We will email you when the product is back in stock.

Key features

24× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/rack mounting design

Tags: tp-link switches , tp-link switche

Description
Specifications

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Unified static configuration	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Network
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN
Number of VLANs	32
Data transmission
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Performance
Firmware upgradeable	Yes
Fanless	Yes
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Surge protection voltage	6 kV
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	294 mm
Depth	140 mm
Height	44 mm
Packaging content
Cables included	AC
User guide	Yes
Rack mount kit	No
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
