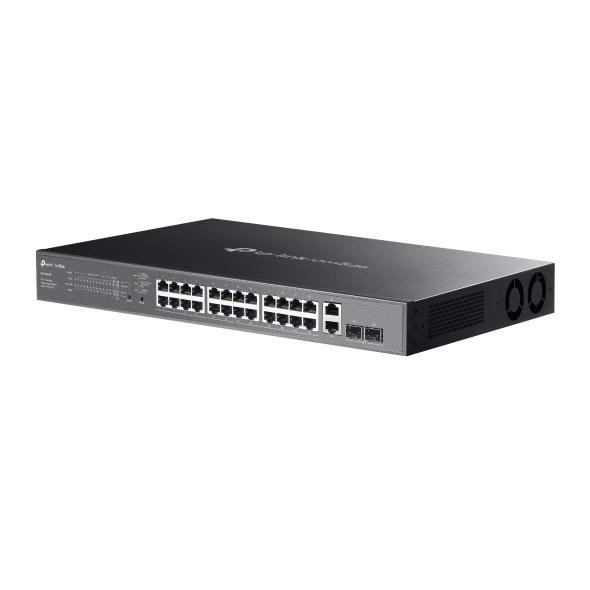

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black – photo 1

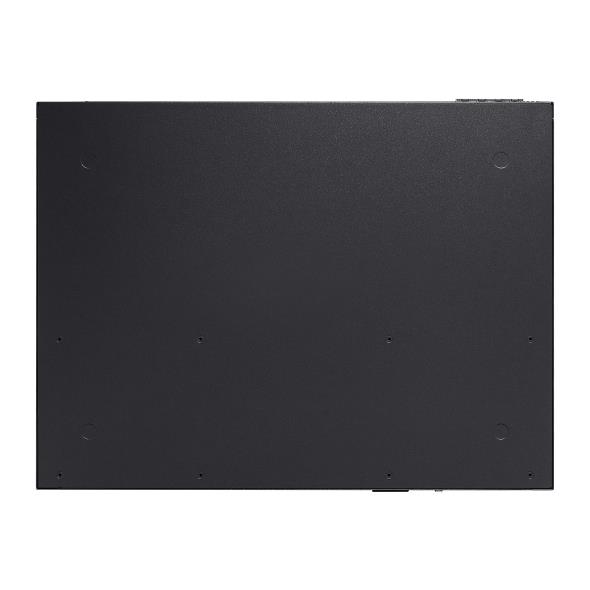

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black – photo 2

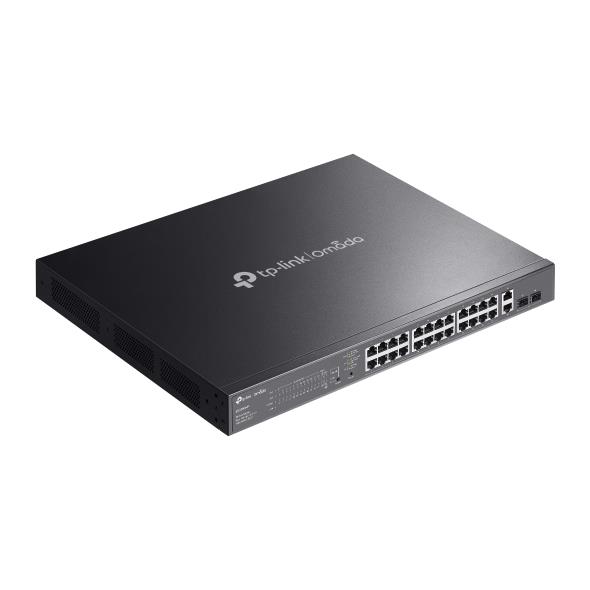

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black – photo 3

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black – photo 4

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black – photo 5

Out of Stock / Please Enquire ETA

TP-LINK

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

R6,542

incl. VAT: R7,523

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: ES228GMP
Weight: 6.1 kg
Dimensions: 53 × 10 × 47 cm
EAN: 1210002600989
Product code: 332990

TP-LINK

Please Inquire

R6,542 incl. VAT: R7,523

We will email you when the product is back in stock.

Key features

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Tags: tp-link switches , tp-link switche

Description
Specifications

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Unified static configuration	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	26
SFP module slots quantity	2
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	32
Data transmission
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Yes
Number of fans	2 fan(s)
Performance
Flash memory	64 MB
Noise level	46.2 dB
Firmware upgradeable	Yes
Fanless	No
Mean time between failures (MTBF)	224143 h
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	454.8 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	384 W
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1546.15 BTU/h
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Manual	Yes
Rack mount kit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, CE, RoHS
