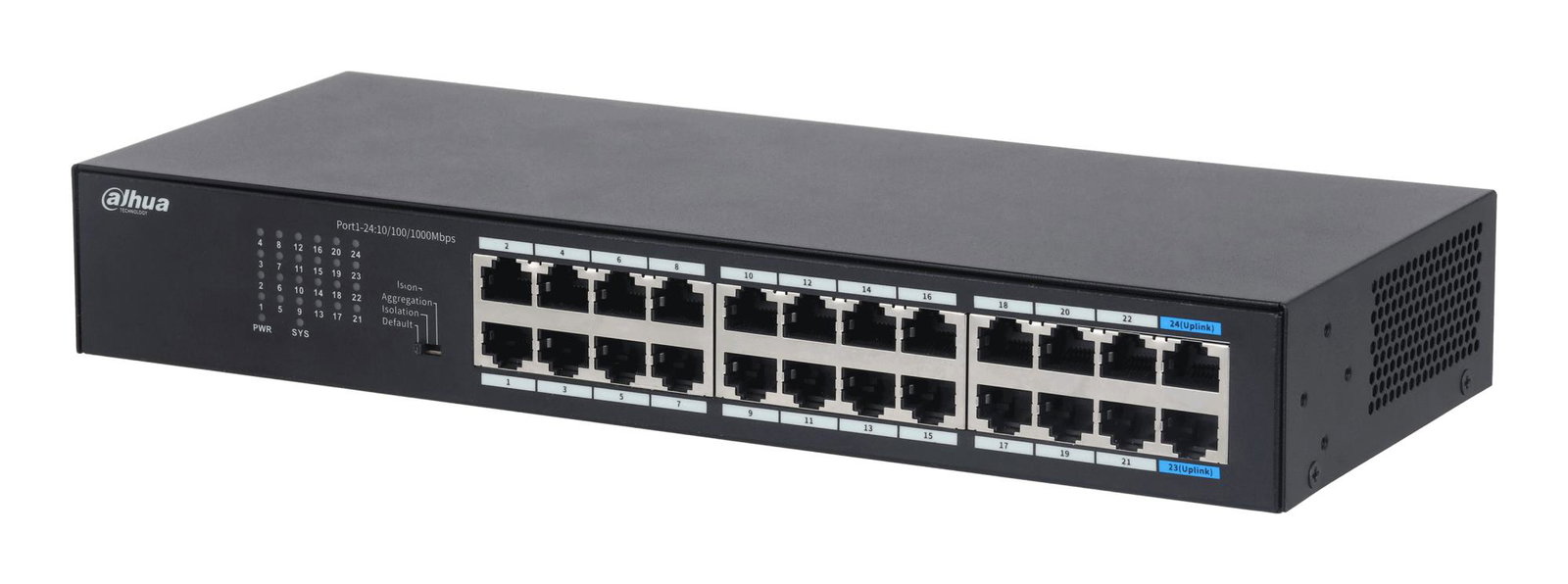

Dahua Technology DH-S3024-24GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black – photo 1

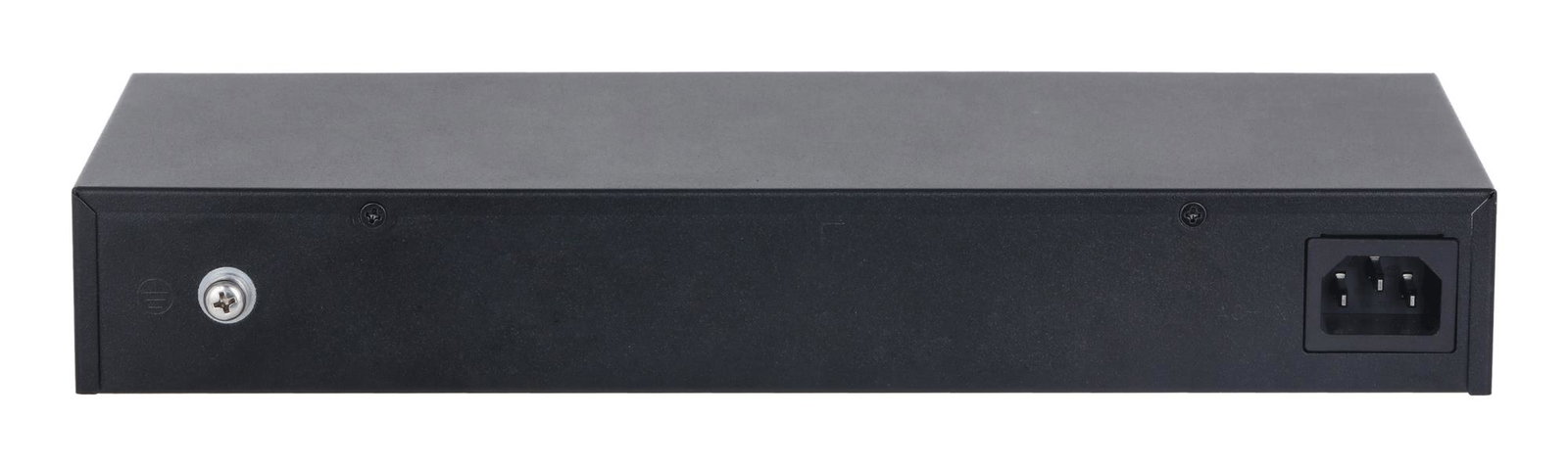

Dahua Technology DH-S3024-24GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black – photo 2

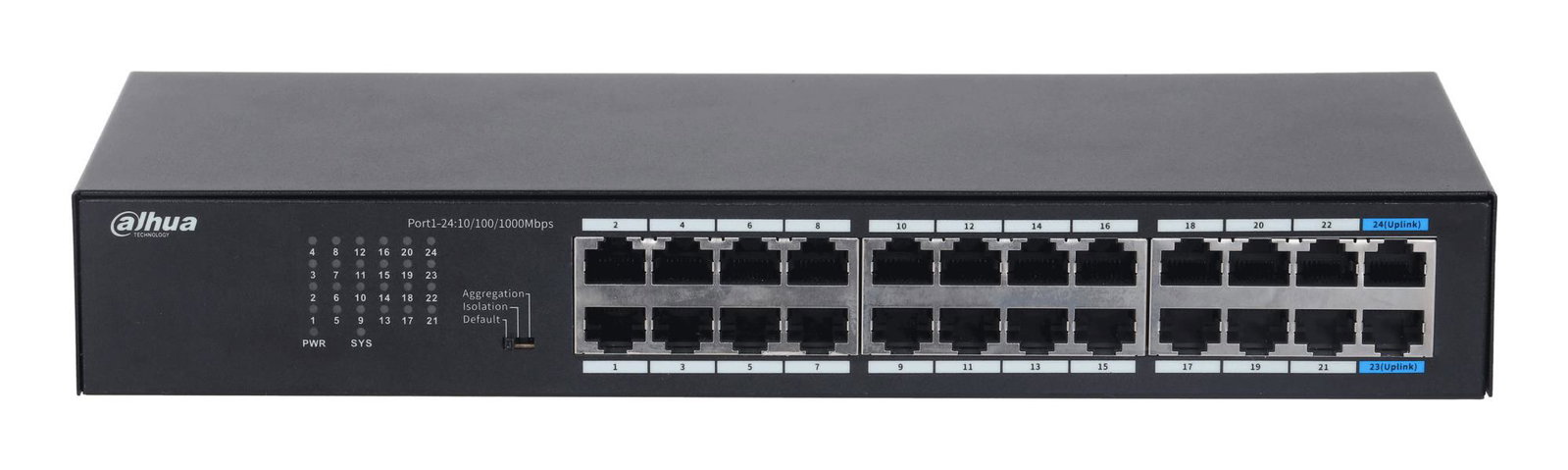

Dahua Technology DH-S3024-24GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black – photo 3

✅ In Stock

DAHUA

Dahua Technology DH-S3024-24GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black

R1,741

incl. VAT: R2,003

Stock: Backordered - delivers in 10-15 days
Brand: DAHUA
Model: DH-S3024-24GT
EAN: 6939554932663
Product code: 1182931

DAHUA

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R1,741 incl. VAT: R2,003

Qty

Save PDF

Key features

24 × RJ-45 10/100/1000 ports
The all-gigabit ports transmit data without lag
Features aggregation mode which aggregates uplink ports
Features isolation mode which isolates all the ports from each other
With its solid full metal design, the device has great heat dissipation and no fan
Supports rack mount, wall mount and desktop mount

Tags: dahua switches , dahua switche

Description
Specifications

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is
powered on.

Full Line-rate Forwarding

The ports perform error-free forwarding of frames at high speeds while under a full load.

Easy Installation

Supports desktop, rack mounting and wall mounting, suitable for various scenarios.

Flexible Application

Suitable for use in a wide variety of scenes to meet your requirements.

Port Isolation

Devices under different ports are prevented from communicating with each other, without need of VLAN being configured. Data is also protected from being leaked from the PoE ports and broadcast storms are isolated, making the network safe and easy to use.

Link Aggregation

Combines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.

Management features
Switch type	Unmanaged
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Power connector	AC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x
10G support	No
Flow control support	Yes
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Data transmission
MAC address table	16000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.712 Mpps
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	8.4 MB
Design
Rack mounting	Yes
Stackable	Yes
Form factor	Desktop/Wall-Mounting
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power
Power source	AC
Power supply included	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.4 A
Power consumption (max)	12.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	119 mm
Depth	294 mm
Height	44 mm
Weight	830 g
Packaging content
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Packaging data
Package type	Box
Package width	215 mm
Package depth	353 mm
Package height	75 mm
Package weight	1.34 kg
Certificates
Compliance certificates	CE
