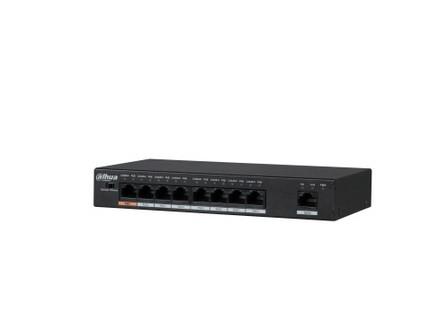

Switch DAHUA Type L2 Desktop/pedestal Rack 1x10Base-T 100Base-TX 1000Base-T PoE ports 8 96 Watts DH-PFS3009-8ET1GT-96-V2

DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

• Layer two commercial switch
• > Supports PoE power management
• > Supports wall-mount installation
• > Supports anti-theft lock hole
• > MAC auto learning and aging, MAC address capacity is 2K
• > Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• > RJ45 port supports 10/100 Mbps self-adaptation
• > Supports 250 meters long distance PoE transmission
• > Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

Summary: Dahua Technology PFS3009-8ET-96. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE) | Vendor Homepage: https://www.dahuasecurity.com/products/productDetail/12971 | Switch type: Unmanaged | Switch layer: L2 | Basic switching RJ-45 Ethernet ports quantity: 8 | Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) | Networking standards: IEEE 802.3af/IEEE 802.3at | 10G support: No | Auto MDI/MDI-X: Yes | Flow control support: Yes | MAC address auto-aging supported: Yes | MAC address auto-learning supported: Yes | Switching capacity: 1.8 | Forwarding rate: 1.34 | MAC address table: 2000 | Packet buffer memory: 0.768 | Rack mounting: No | Stackable: No | Product colour: Black | DC input voltage: 48 - 57 | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) ports quantity: 8 | Total Power over Ethernet (PoE) budget: 96 | Operating temperature (T-T): -10 - 55 | Operating relative humidity (H-H): 10 - 90 | Width: 190 | Depth: 100 | Height: 30 | Weight: 480 | Unit Calculated Weight: 1.25 | Product Net Weight: 0.47 | Unit Calculated Volume: 0.005184 | Units per Shipping Box: 1 | Unit Width: 8 | Shipping Box Height: 24 | Unit Depth: 27 | Unit Height: 24 | Name: NET SWITCH 9PORT 8POE 1000M/PFS3009-8ET1GT-96-V2 DAHUA
