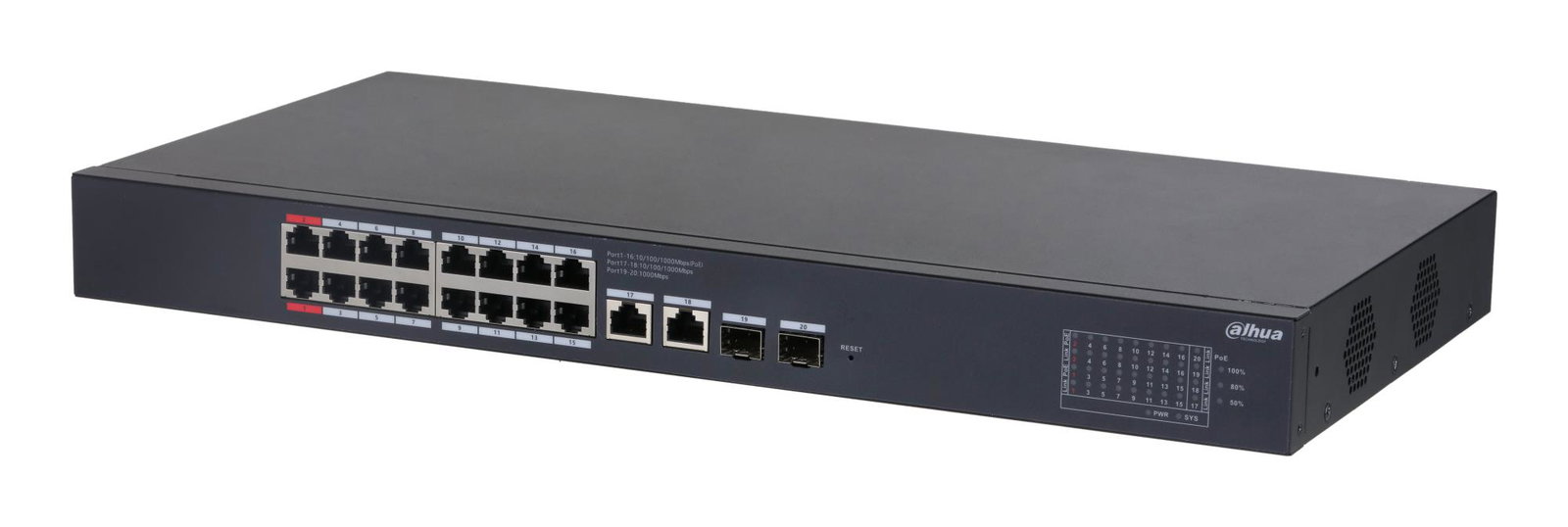

Dahua Technology CS4220-16GT-190 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black – photo 1

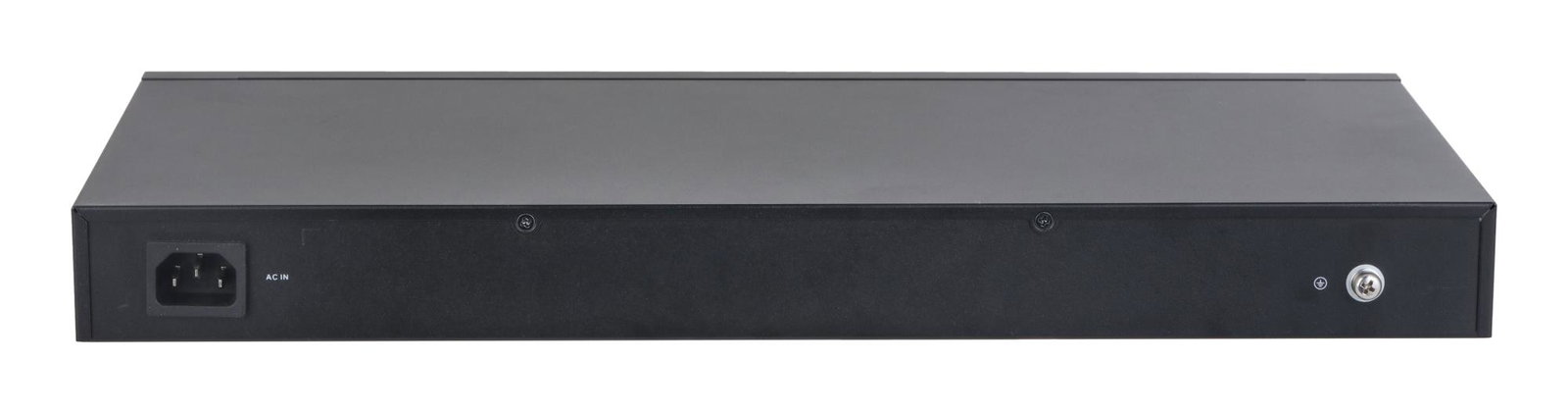

Dahua Technology CS4220-16GT-190 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black – photo 2

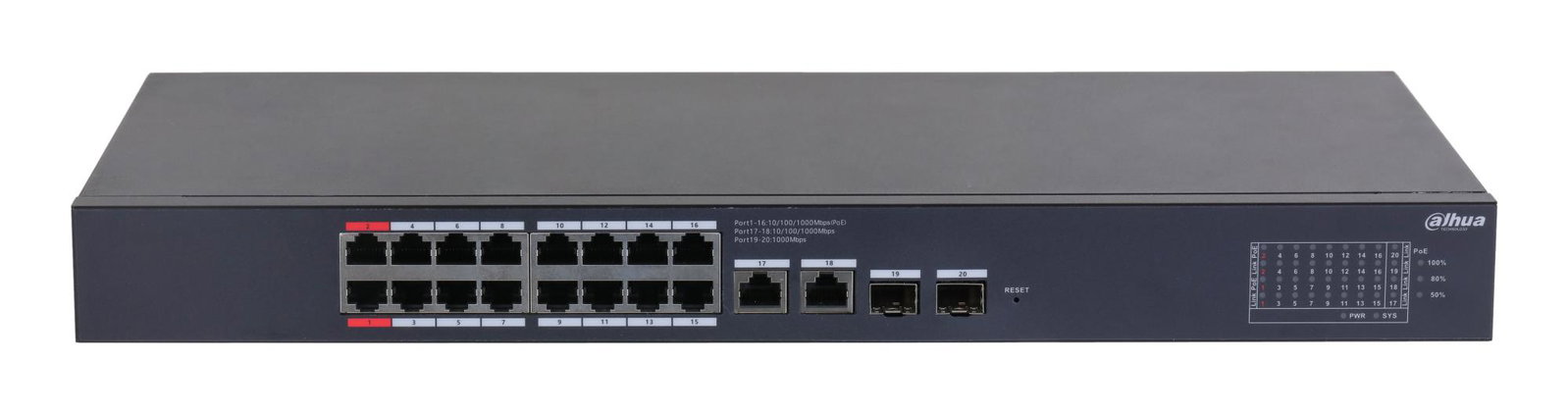

Dahua Technology CS4220-16GT-190 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black – photo 3

Out of Stock / Please Enquire ETA

DAHUA

Dahua Technology CS4220-16GT-190 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

R3,841

incl. VAT: R4,418

Stock: Out of Stock / Please Enquire ETA
Brand: DAHUA
Model: CS4220-16GT-190
EAN: 6937552401921
Product code: 1182922

DAHUA

Please Inquire

R3,841 incl. VAT: R4,418

We will email you when the product is back in stock.

Key features

Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

Tags: dahua switches , dahua switche

Specifications

Management features
Switch type	Managed
Switch layer	L2
Web-based management	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
SFP module slots quantity	2
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
Data transmission
MAC address table	8000 entries
Switching capacity	40 Gbit/s
Forwarding rate	29.76 Mpps
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	0.5 MB
Security
DHCP features	DHCP client
Loop protection	Yes
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Link, PoE, Power, System
Performance
Mean time between failures (MTBF)	762116 h
Power
Power source	AC/DC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	212 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	190 W
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Weight	2.32 kg
Packaging data
Package width	540 mm
Package depth	342 mm
Package height	90 mm
Package weight	2.97 kg
