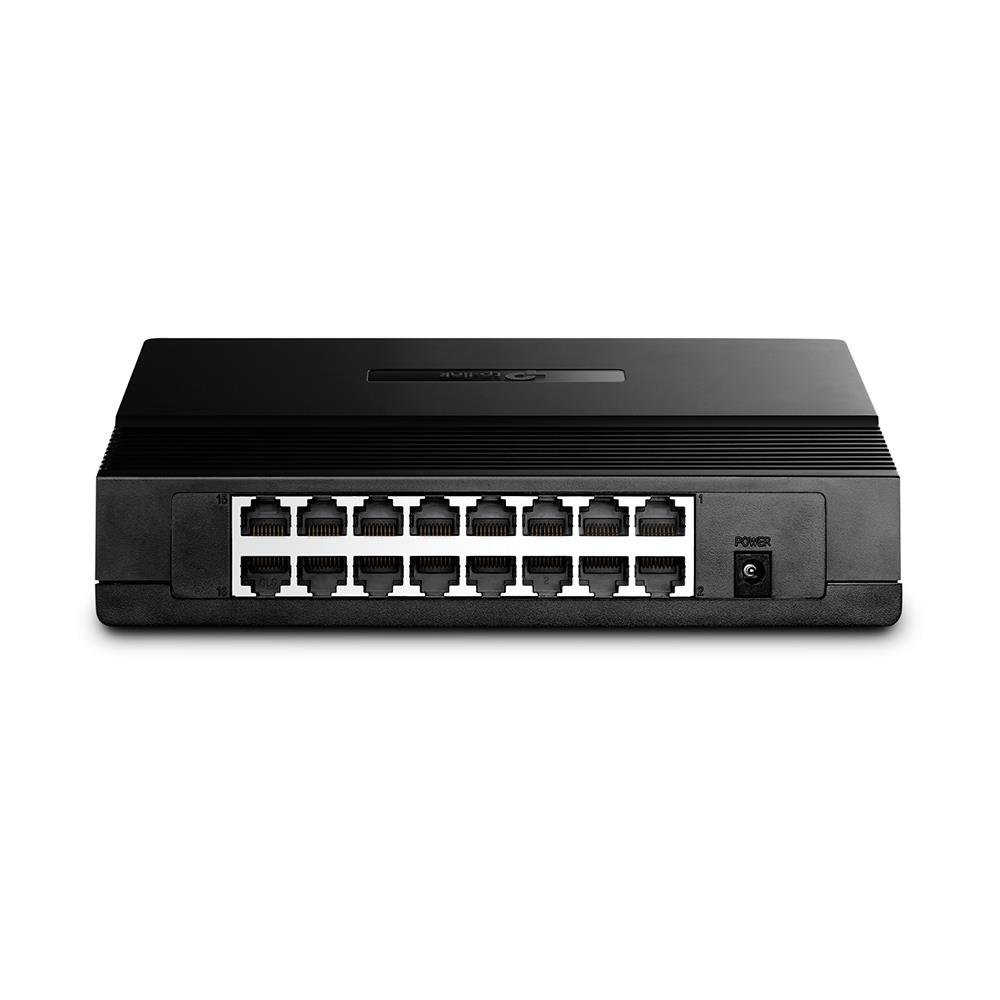

TP-Link 16-Port 10/100Mbps Desktop Switch – photo 1

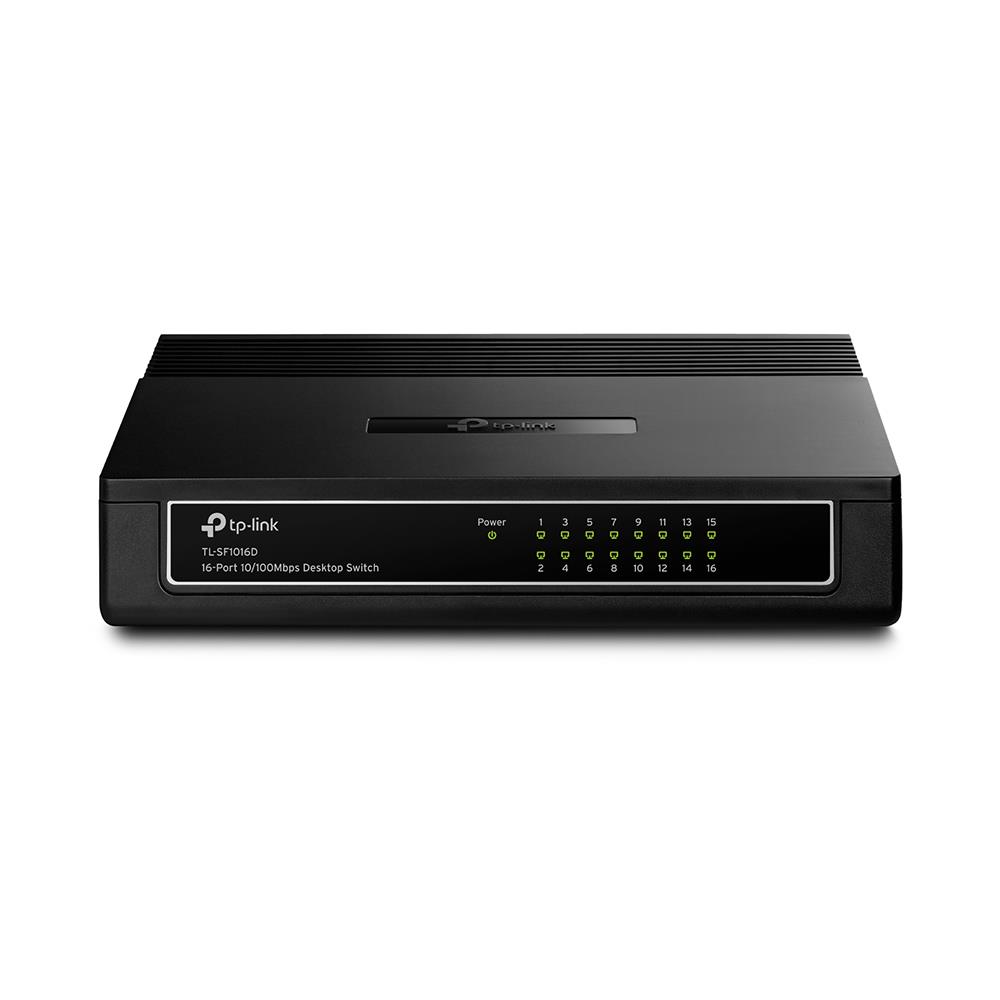

TP-Link 16-Port 10/100Mbps Desktop Switch – photo 2

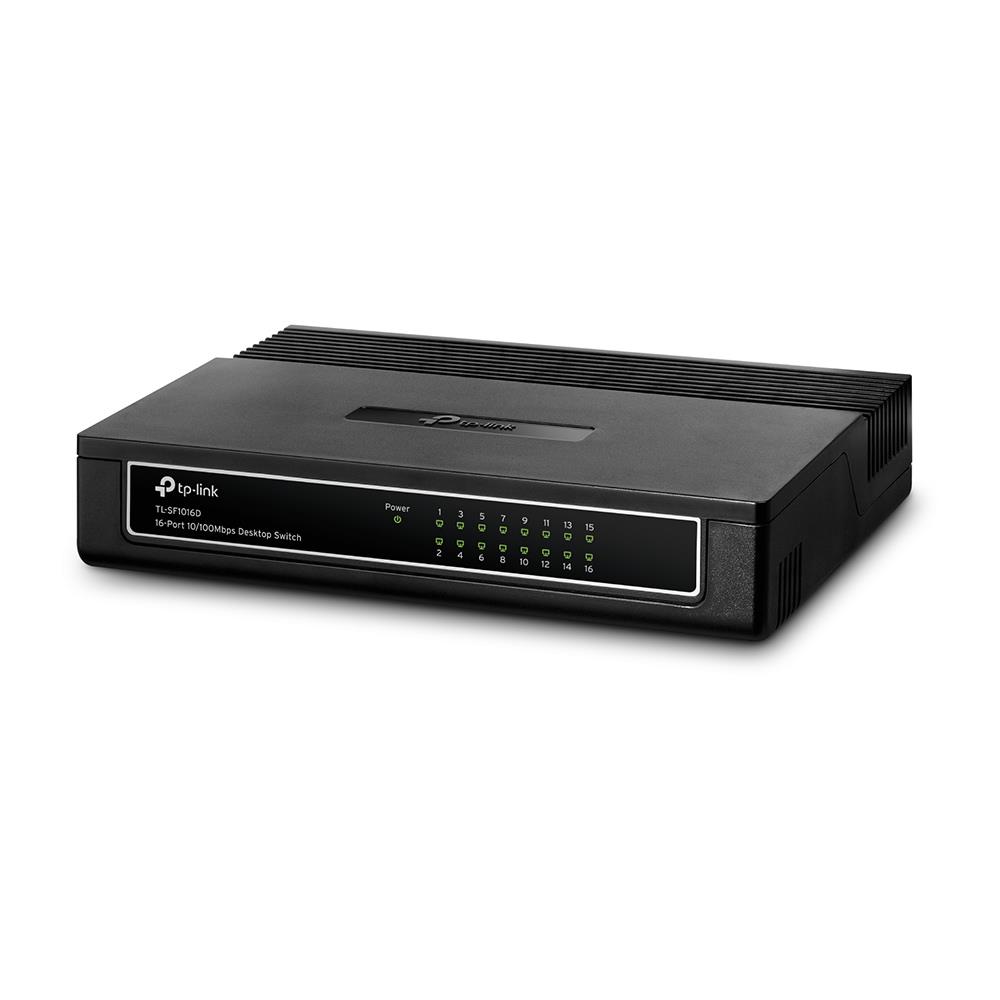

TP-Link 16-Port 10/100Mbps Desktop Switch – photo 3
TP-Link 16-Port 10/100Mbps Desktop Switch – photo 4
Out of Stock / Please Enquire ETA
TP-LINK

TP-Link 16-Port 10/100Mbps Desktop Switch

R1,010
incl. VAT: R1,161
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: TP-LINK
  • Model: TL-SF1016D
  • Weight: 0.61 kg
  • Dimensions: 29 × 23 × 7 cm
  • EAN: 6935364020293
  • Product code: 772890
Please Inquire
R1,010 incl. VAT: R1,161
We will email you when the product is back in stock.
SavePDF

Key features

  • 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

Description

What This Product Does

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

TP-LINK Green Technology

This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Fast Ethernet (copper) ports quantity 16
Power connector DC-in jack
Network
Networking standards IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 100BASE-TX, 10BASE-T
Full duplex Yes
Half duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100 Mbit/s
Auto-negotiation Yes
MAC address auto-learning supported Yes
Data transmission
MAC address table 2000 entries
Switching capacity 3.2 Gbit/s
Store-and-forward Yes
Design
Rack mounting Yes
Stackable No
Product colour Black
LED indicators Yes
Wall mountable Yes
Performance
Fanless Yes
Minimum system requirements Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
Power
Power source DC
Power supply included Yes
DC input voltage 9 V
Input current 0.6 A
Power consumption (max) 3.23 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 11.01 BTU/h
Weight & dimensions
Width 200 mm
Depth 142 mm
Height 40 mm
Packaging content
User guide Yes
Packaging data
AC adapter included Yes
Package type Box
Package width 223 mm
Package depth 285 mm
Package height 68 mm
Package weight 590 g
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance Yes
