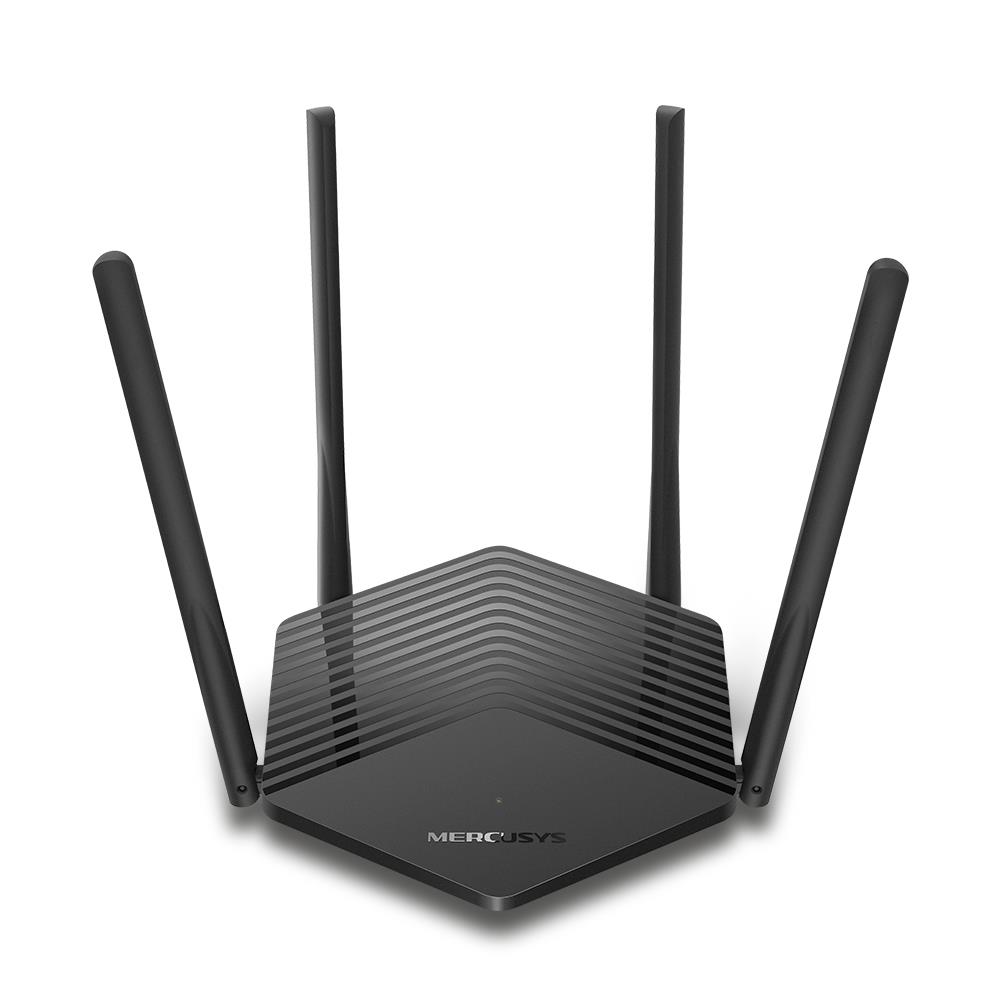

Wireless Router MERCUSYS 1500 Mbps Wi-Fi 6 IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax 3x10/100/1000M LAN \ WAN ports 1 Number of antennas 4 MR60X

WiFi 6 Made Faster and Smarter
AX1500 Wi-Fi 6 Router

Upgrade Your Network with WiFi 6
The latest WiFi 6 standard implements advanced technology designed to deliver more simultaneous stable connections, extend WiFi range, and maintain reliably fast data transmissions, satisfying the demand for a high-performance wireless experience.

Level Up Your Speeds up to 40% Faster
By combining 1024-QAM and a long OFDM symbol, MR60X delivers gigabit fast speeds up to 1500 Mbps for all your WiFi devices – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag.

Connect 4× More Devices at Once
More Streams, More Devices, More Fun
WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR60X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of your whole network under the same conditions.

Broader, Stronger Coverage
Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

Overall Security Protection
The latest security standard, WPA3, provides improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.△

Protection Against Brute-Force Attacks

Prevents password-guessing attacks and delivers robust protections even when you are using a weak password

Your Data Is Safer

Forward Secrecy support prevents any captured data from being snooped even if a cracker compromises a session’s secret keys

Advanced Encryption Security

128-Bit Encryption, which is considered to be logically unbreakable, creates an active defense against security threats and intruders

Less WiFi Interference
BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.

Eco-Friendly
Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life.

Smart Connect Combines Two Bands in One
Equipped with next-gen WiFi 6, both 5 GHz and 2.4 GHz are upgraded to the latest generation. Smart Connect combines the 2.4 GHz and 5 GHz bands into a single WiFi SSID and helps your devices intelligently choose the best available band that has the stronger signal and faster speed. This keeps your devices always running optimally when you walk around your home.

Easy Setup and Management via the MERCUSYS App
Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your WiFi at home or away through your iOS or Android devices.

• Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions
• Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
• Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency

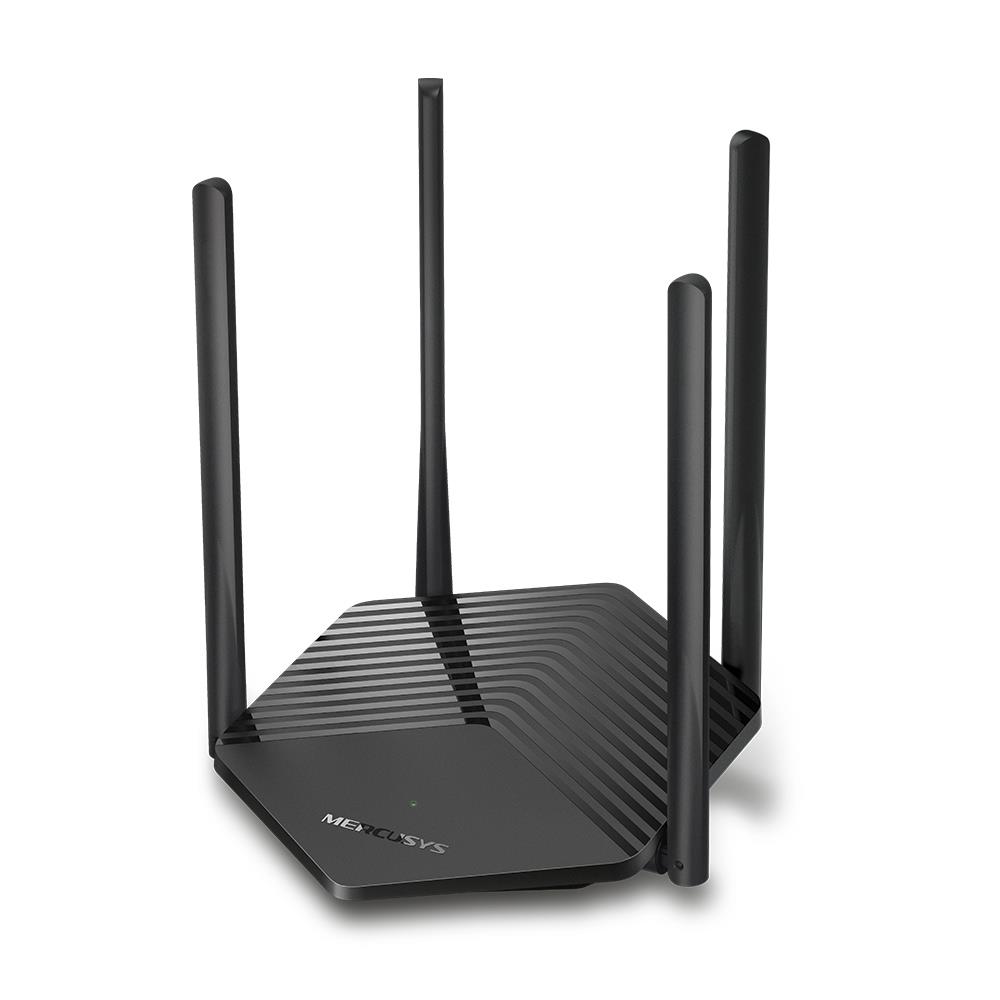

• Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

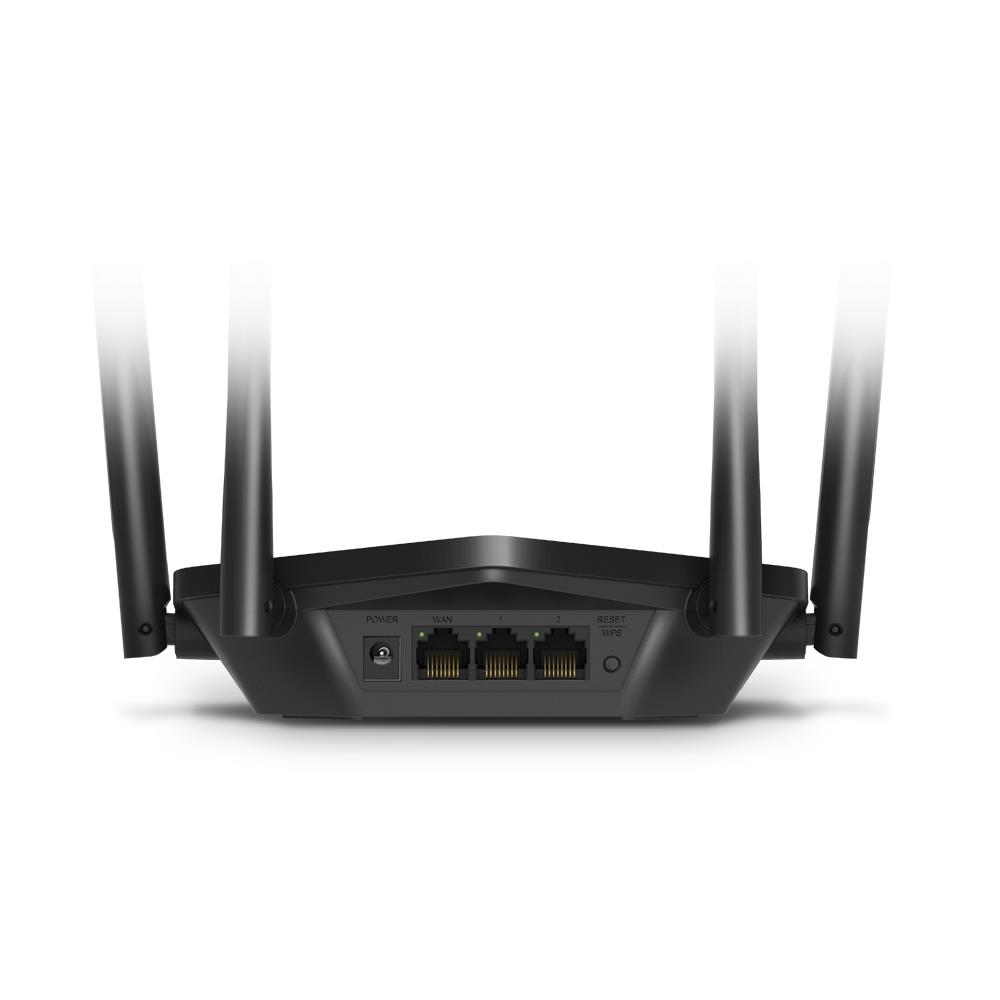

• Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
• Overall Security Protection – The latest WPA3 provides improved WiFi security
• Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
• Smart Connect– Intelligently chooses the best available band for each device

Summary: Mercusys AX1800 Dual-Band WiFi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1500 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA3, Firewall security: SPI Firewall, IP and MAC Address Binding. Product type: Tabletop router, Product colour: Black, LED indicators: Power, WLAN | Vendor Homepage: https://www.mercusys.com/en/product/details/mr60x#overview | Wi-Fi band: Dual-band (2.4 GHz / 5 GHz) | Top Wi-Fi standard: Wi-Fi 6 (802.11ax) | WLAN data transfer rate (max): 1500 | Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) | WLAN data transfer rate (first band): 1201 | WLAN data transfer rate (second band): 300 | Ethernet WAN: Yes | DSL WAN: No | SIM card slot: No | 3G/4G USB modem compatibility: No | WAN connection type: RJ-45 | Ethernet LAN: Yes | Ethernet LAN interface type: Gigabit Ethernet | Ethernet LAN data rates: 10/100/1000 | Cabling technology: 10/100/1000Base-T(X) | Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n | Port forwarding: Yes | Port triggering: Yes | Number of guest networks (2.4 GHz): 1 | Number of guest networks (5 GHz): 1 | Ethernet LAN (RJ-45) ports: 3 | USB port: No | Wi-Fi Multimedia (WMM)/(WME): Yes | Reset button: Yes | WPS push button: Yes | MU-MIMO technology: Yes | Security algorithms: WPA/WPA2/WPA3 | Firewall: Yes | Access Control List (ACL): Yes | Firewall security: SPI Firewall, IP and MAC Address Binding | DMZ support: Yes | Network address translation (NAT): Yes | DHCP client: Yes | DHCP server: Yes | Product colour: Black | Wall mountable: Yes | LED indicators: Power,WLAN | Product type: Tabletop router | Cables included: LAN (RJ-45) | AC adapter included: Yes | Quick installation guide: Yes | Antenna design: External | Antenna gain level (max): 5 | Antennas quantity: 4 | Detachable antenna(s): No | Power source type: DC | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): 0 - 40 | Storage relative humidity (H-H): 5 - 90 | Depth: 157.2 | Height: 45 | Width: 175.6 | Unit Calculated Weight: 0.75 | Product Net Weight: 0.5 | Unit Calculated Volume: 0.007168 | Units per Shipping Box: 10 | Unit Width: 27 | Shipping Box Height: 40 | Unit Depth: 30 | Unit Height: 7 | Name: WRL ROUTER 1500MBPS/3PORT MR60X MERCUSYS | Model name: MR60X
