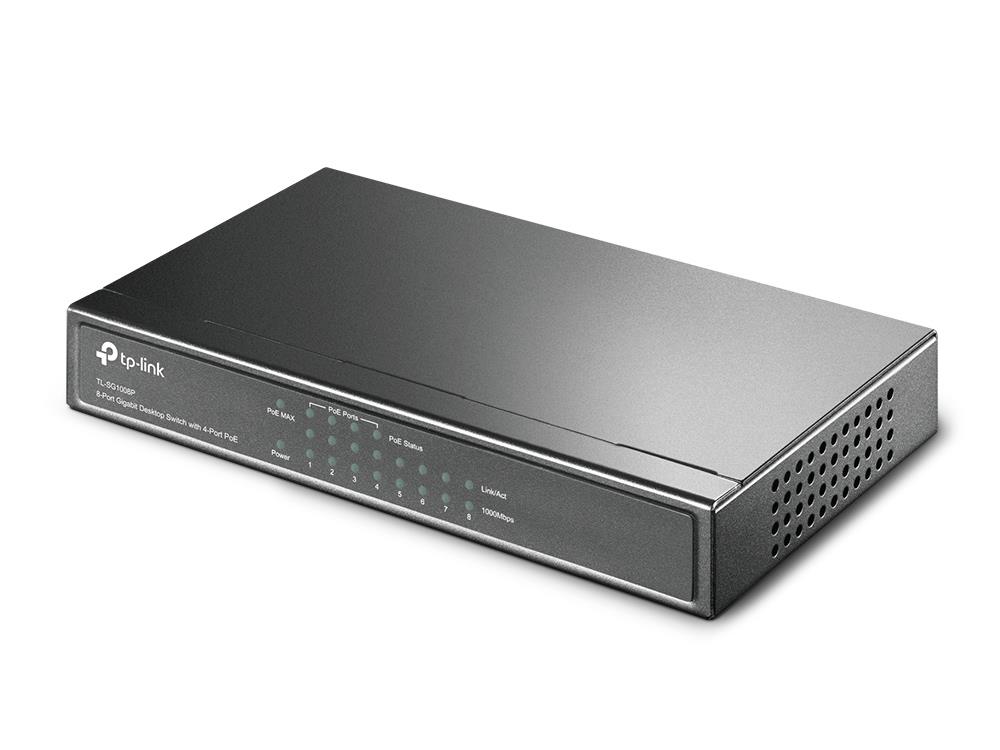

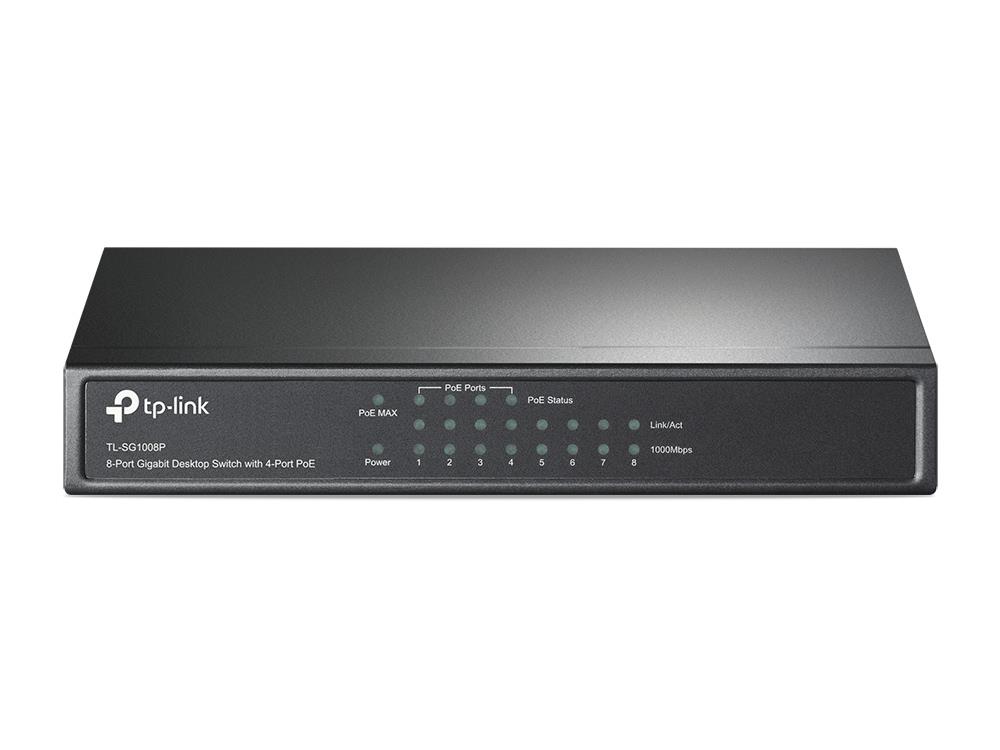

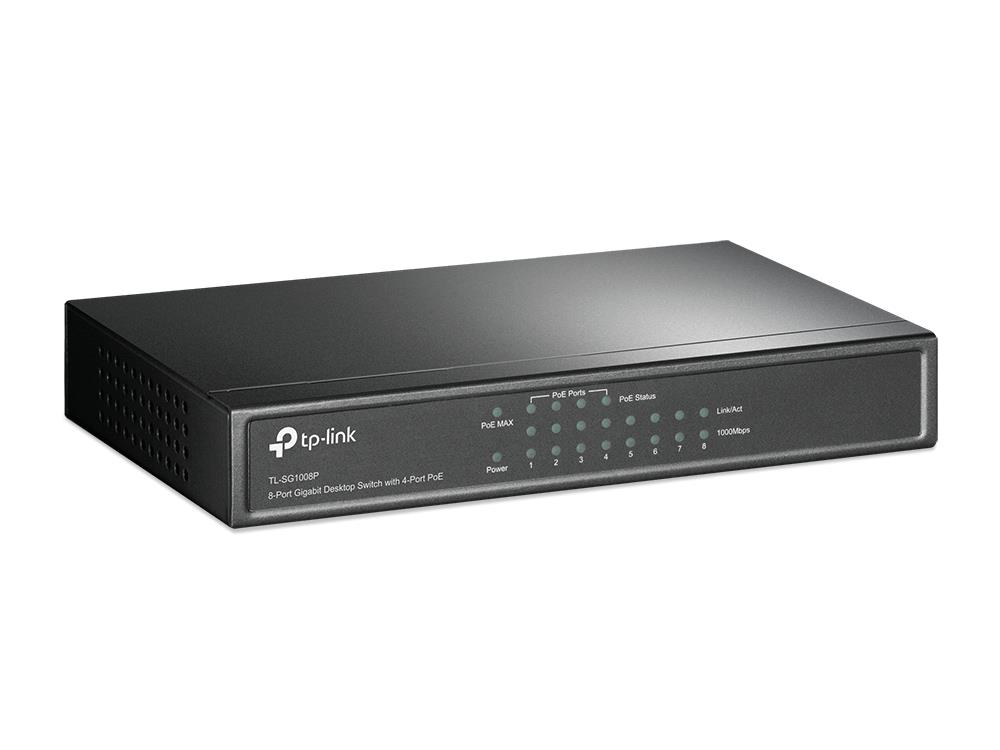

Switch TP-LINK 8x10Base-T 100Base-TX 1000Base-T TL-SG1008P

PoE Switches for Your Ultra Convenience
8-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

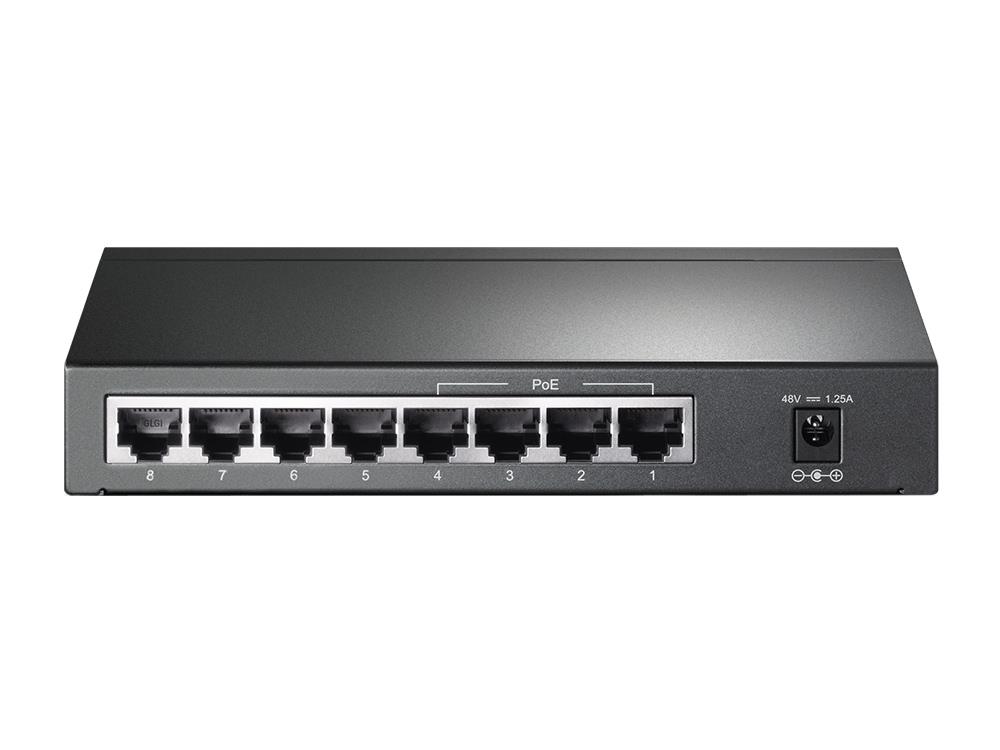

• 8 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE power up to 15.4W for each PoE port
• Supports PoE power up to 55W for all PoE ports
• Requires no configuration and installation

Summary: TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE) | Vendor Homepage: https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1008p/ | Switch type: Managed | Quality of Service (QoS) support: No | Basic switching RJ-45 Ethernet ports quantity: 8 | Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (copper) ports quantity: 8 | Power connector: DC-in jack | Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x | 10G support: No | Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T | Cable types supported: Cat3/Cat4/Cat5/Cat5e | Auto MDI/MDI-X: Yes | Auto-negotiation: Yes | Flow control support: Yes | MAC address auto-aging supported: Yes | MAC address auto-learning supported: Yes | Switching capacity: 16 | Forwarding rate: 11.904 | MAC address table: 4000 | Store-and-forward: Yes | Jumbo frames support: Yes | Jumbo frames: 16000 | IGMP snooping: Yes | Rack mounting: No | Stackable: No | Product colour: Grey | Housing material: Metal | LED indicators: Yes | Maximum cable length: 100 | Fanless: Yes | Power source: DC/PoE | Power supply included: Yes | Number of power supply units: 1 | AC input voltage: 100 - 240 | AC input frequency: 50/60 | DC input voltage: 53.5 | Input current: 1.31 | Power consumption (max): 75 | Power over Ethernet (PoE): Yes | Power over Ethernet (PoE) ports quantity: 4 | Total Power over Ethernet (PoE) budget: 64 | Operating temperature (T-T): 0 - 40 | Storage temperature (T-T): -40 - 70 | Operating relative humidity (H-H): 10 - 90 | Storage relative humidity (H-H): 5 - 90 | Heat dissipation: 225.75 | Width: 171 | Depth: 98 | Height: 27 | Cables included: AC | User guide: Yes | Package type: Box | Package width: 223 | Package depth: 280 | Package height: 68 | Package weight: 1250 | Sustainability compliance: Yes | Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS | Unit Calculated Weight: 1.08 | Product Net Weight: 0.52 | Unit Calculated Volume: 0.005384 | Units per Shipping Box: 12 | Unit Width: 22.5 | Units per Pallet: 0 | Shipping Box Height: 23.5 | Unit Depth: 28 | Unit Height: 7 | Name: NET SWITCH 8PORT 10/100/1000M/POE TL-SG1008P TP-LINK | Model name: 8-Port Gigabit Desktop PoE Switch with 4-Port
