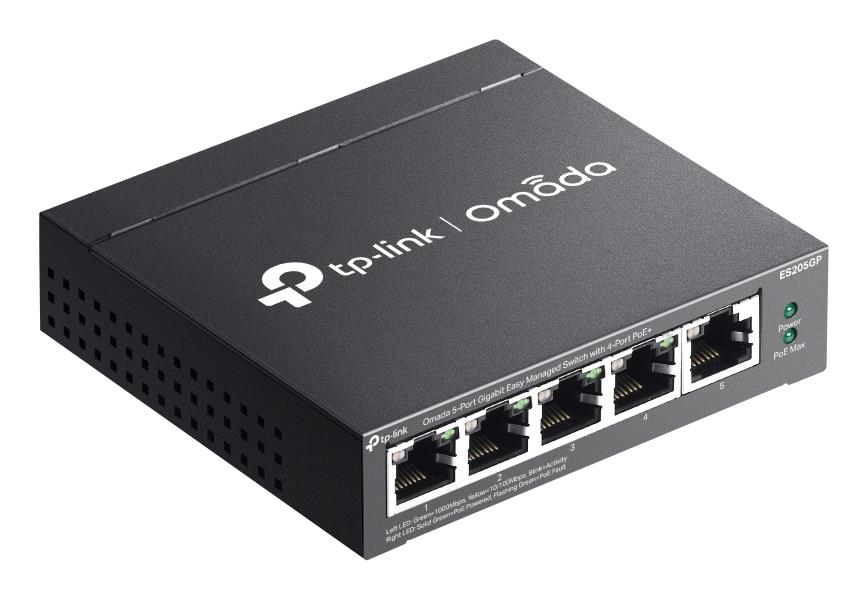

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ – photo 1

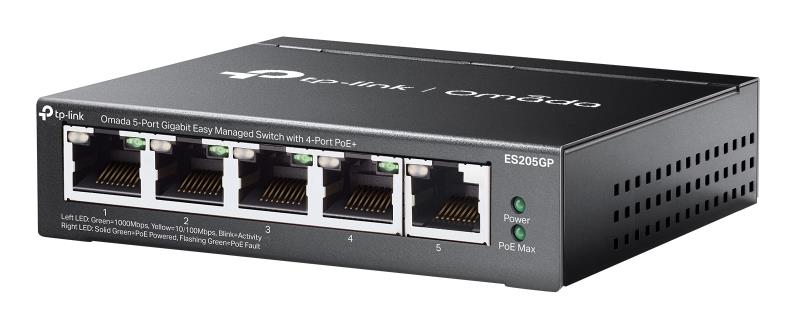

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ – photo 2

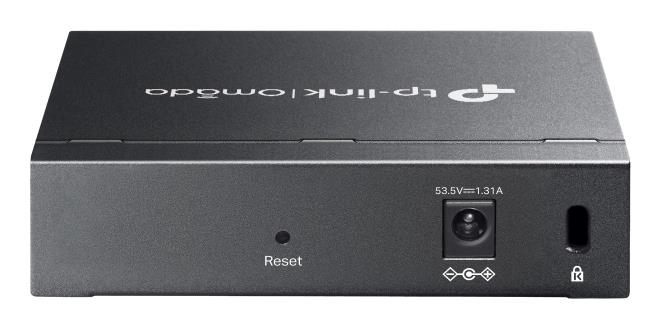

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ – photo 3

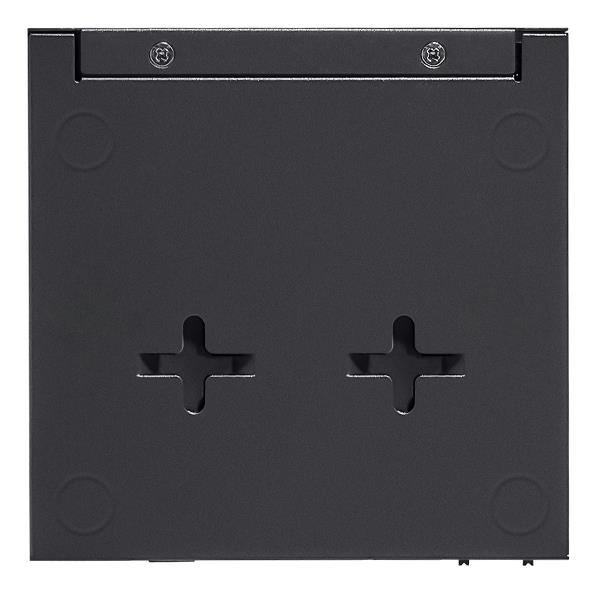

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ – photo 4

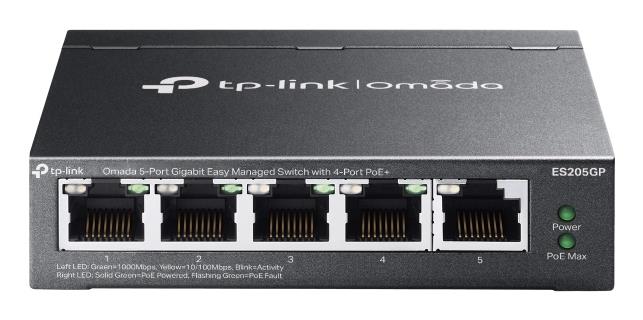

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ – photo 5

Out of Stock / Please Enquire ETA

TP-LINK

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

R1,414

incl. VAT: R1,627

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: ES205GP
Weight: 0.78 kg
Dimensions: 20 × 12 × 13 cm
EAN: 8885020620931
Product code: 772468

TP-LINK

Please Inquire

R1,414 incl. VAT: R1,627

We will email you when the product is back in stock.

Key features

5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Tags: tp-link switches , tp-link switche

Description
Specifications

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)

Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
MAC address table	8000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Design
Product colour	Black
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes
Performance
Fanless	Yes
Power
Power source	AC/DC
Power supply included	Yes
DC input voltage	53.5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
Package type	Box
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
