Out of Stock / Please Enquire ETA

TP-LINK

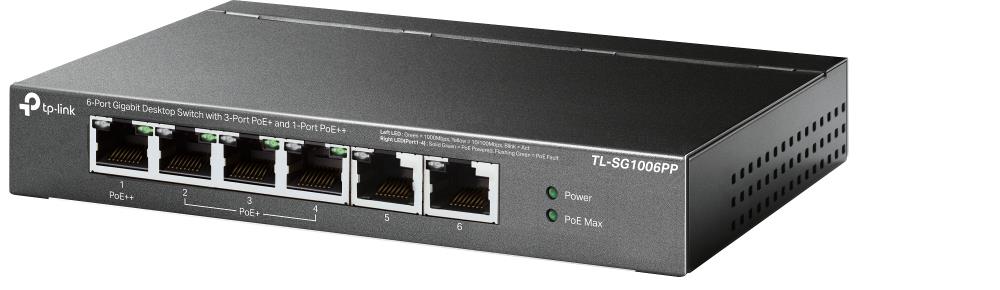

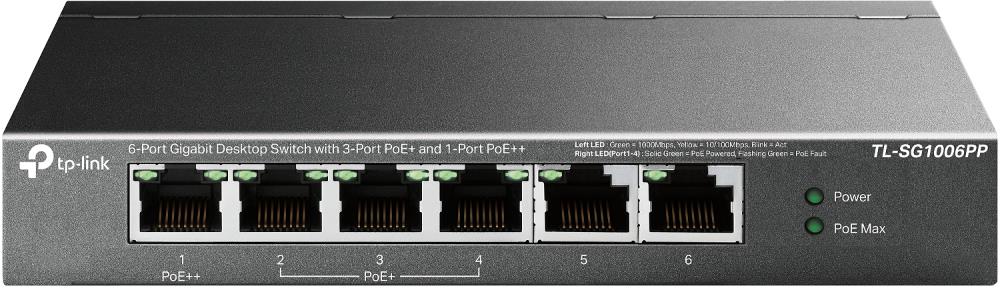

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

R1,618

incl. VAT: R1,861

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: TL-SG1006PP
Weight: 1.06 kg
Dimensions: 20 × 12 × 13 cm
EAN: 4895252500325
Product code: 772419

TP-LINK

Please Inquire

R1,618 incl. VAT: R1,861

We will email you when the product is back in stock.

Key features

6× 10/100/1000 Mbps RJ45 ports

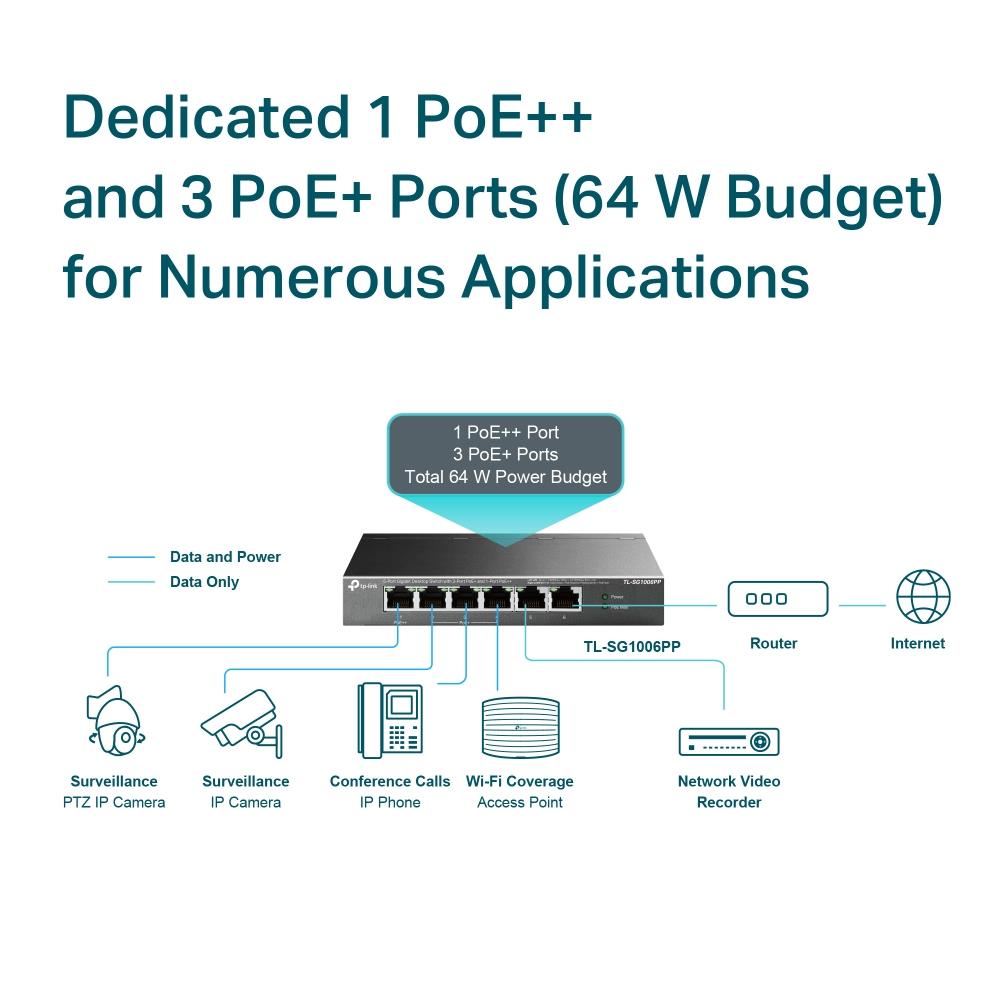

With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
Supports PoE Power up to 64 W for all PoE ports*

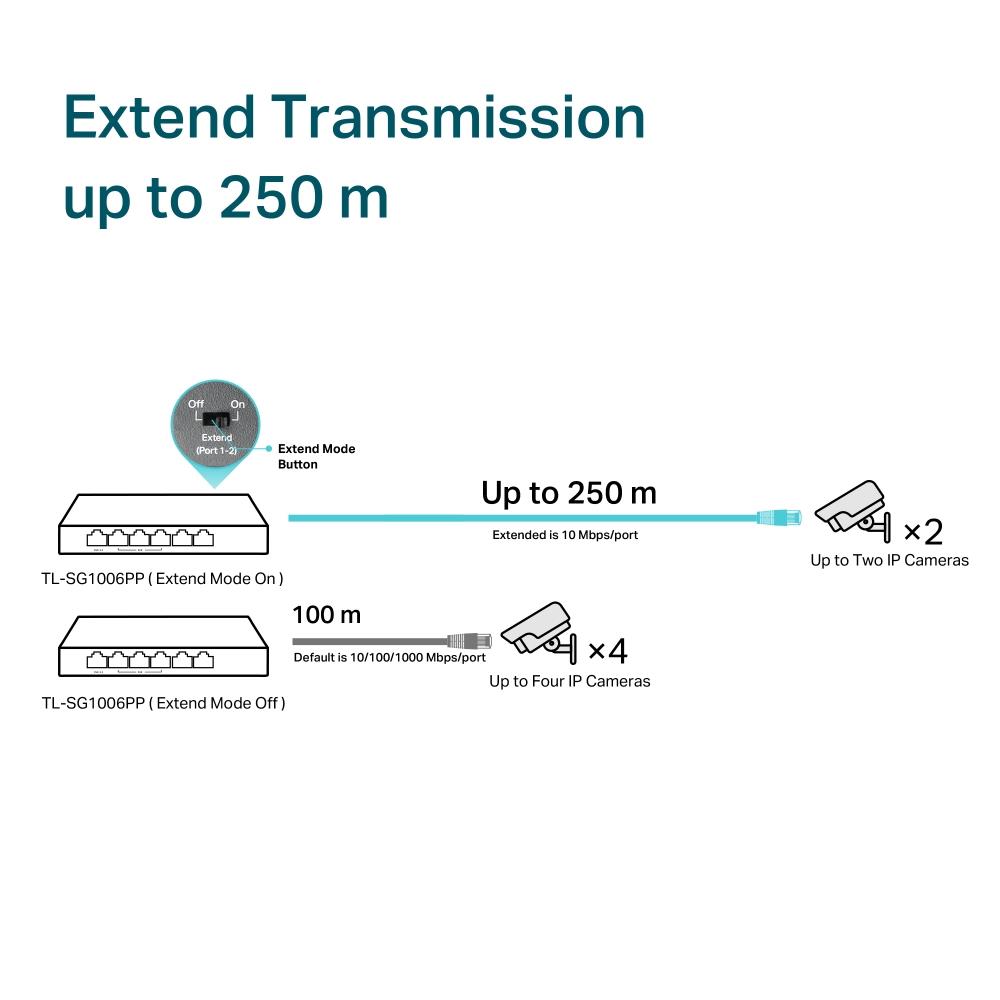

Up to 250m data and power transmitting range under Extend Mode**
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play, no configuration and installation required

Tags: tp-link switches , tp-link switche

Description
Specifications

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	12 Gbit/s
Forwarding rate	8.928 Mpps
Store-and-forward	Yes
Security
IGMP snooping	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Performance
Fanless	Yes
Power
Power source	DC/PoE
Power supply included	Yes

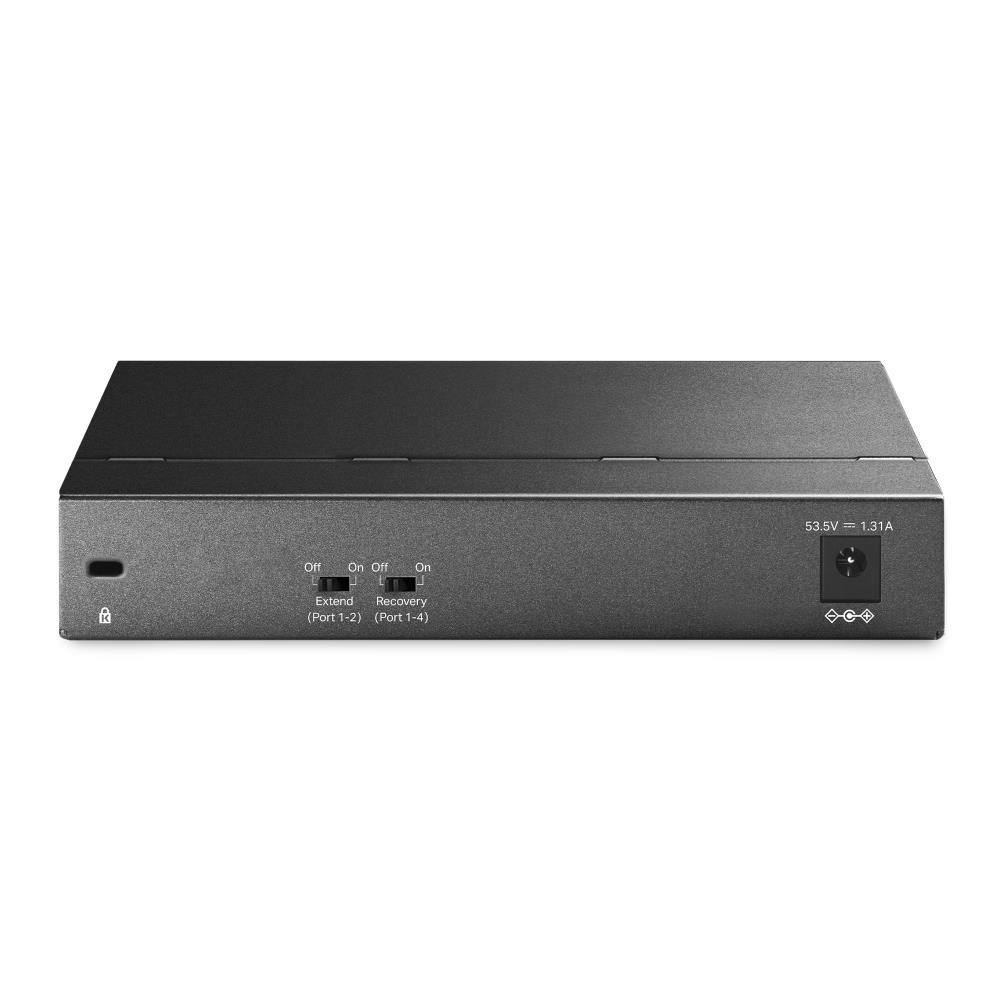

DC input voltage	53.5 V
Input current	1.31 A
Power consumption (typical)	4.75 W
Power consumption (max)	71.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	64 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	16.2 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Certificates
Certification	FCC, CE, RoHS
