TP-Link 16-Port Gigabit Rackmount Network Switch – photo 1
TP-Link 16-Port Gigabit Rackmount Network Switch – photo 2
TP-Link 16-Port Gigabit Rackmount Network Switch – photo 3
✅ In Stock
TP-LINK

TP-Link 16-Port Gigabit Rackmount Network Switch

R1,822
incl. VAT: R2,095
  • Stock: Backordered - delivers in 10-15 days
  • Brand: TP-LINK
  • Model: TL-SG1016
  • Weight: 1 kg
  • Dimensions: 53 × 22 × 8 cm
  • EAN: 6935364020095
  • Product code: 772301
Backordered goods Delivery in 10–15 working days

Available Options

R1,822 incl. VAT: R2,095
SavePDF

Key features

  • 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

Description

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-Link Green Technology

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 16

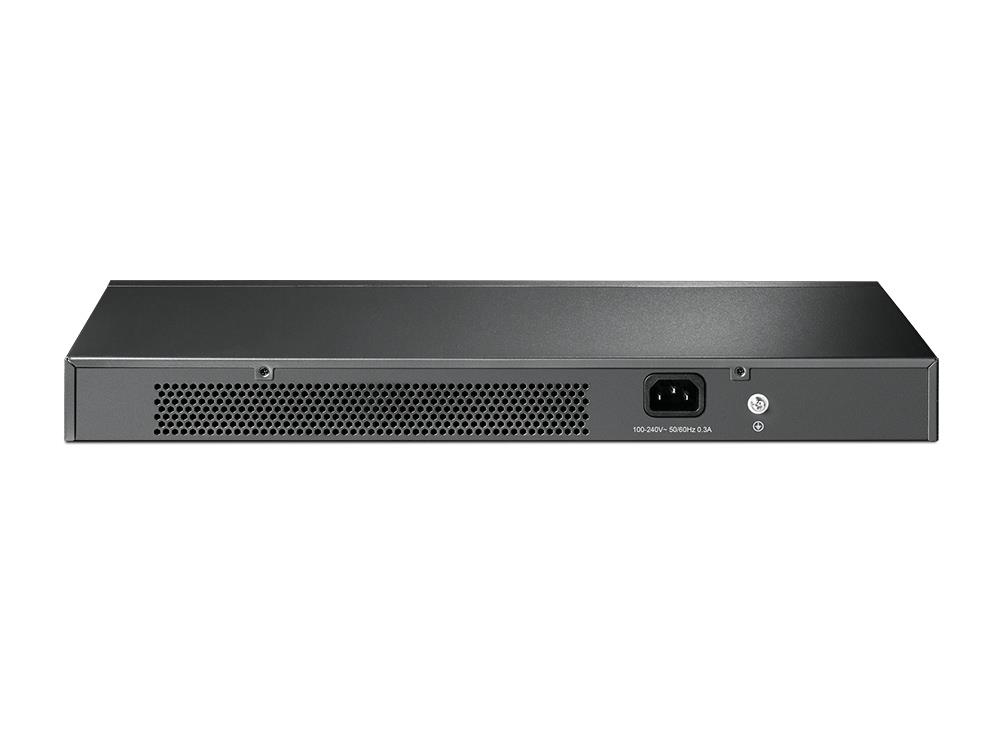

Power connector AC-in jack
Network
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e
Full duplex Yes
Half duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Data transmission
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Forwarding rate 23.8 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 10000
Design
Rack mounting Yes
Form factor 1U
Product colour Black
Housing material Metal
LED indicators Yes
Performance
Compatible operating systems Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Maximum cable length 100 m
Fanless Yes
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 10.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 35.6 BTU/h
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging content
Cables included AC
User guide Yes
Rack mount kit Yes
Packaging data
Package type Box
Package width 250 mm
Package depth 528 mm
Package height 80 mm
Package weight 2.04 kg
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code 85176990
Sustainability
Sustainability compliance Yes
