Out of Stock / Please Enquire ETA

TP-LINK

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

R1,875

incl. VAT: R2,156

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: EAP235-WALL
Weight: 0.41 kg
Dimensions: 19 × 12 × 3 cm
EAN: 6935364088972
Product code: 772165

TP-LINK

Please Inquire

R1,875 incl. VAT: R2,156

We will email you when the product is back in stock.

Key features

Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
Cloud management and Omada app supported for ultra-convenience and easy management
Enterprise class Wi-Fi security helps to decrease network security threats
Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology

Tags: tp-link wifi access points , tp-link wifi access point

Description
Specifications

Dedicated Complete, Private Wi-Fi Network in Each Room

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More

802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

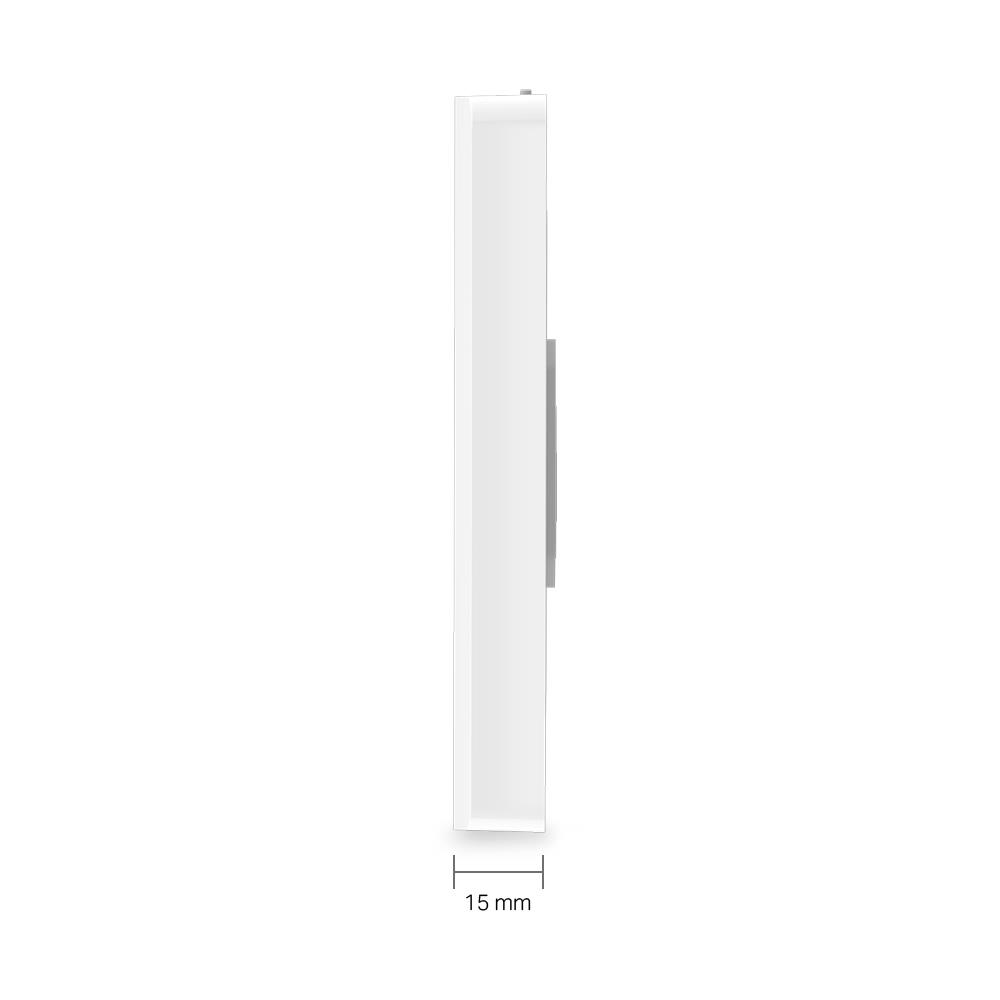

Absolute Thinnest, Inconspicuous Design

The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered

With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation

EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network

Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, VLAN mapping
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	21 dBm
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Protocols
Universal Plug and Play (UPnP)	Yes
Management features
Web-based management	Yes
Syslog	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
WAN connection	Ethernet (RJ-45)
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Power consumption (typical)	24.4 W
Design
Placement	Wall
Product colour	White
Cable lock slot	Yes
Reset button	Yes
LED indicators	LAN, Power, Status, WAN, WLAN
Antenna
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	143 mm
Depth	86 mm
Height	20 mm
Packaging data
Package width	117 mm
Package depth	184 mm
Package height	33 mm
Package weight	300 g
Package type	Box
Packaging content
Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
Sustainability
Sustainability compliance	Yes
