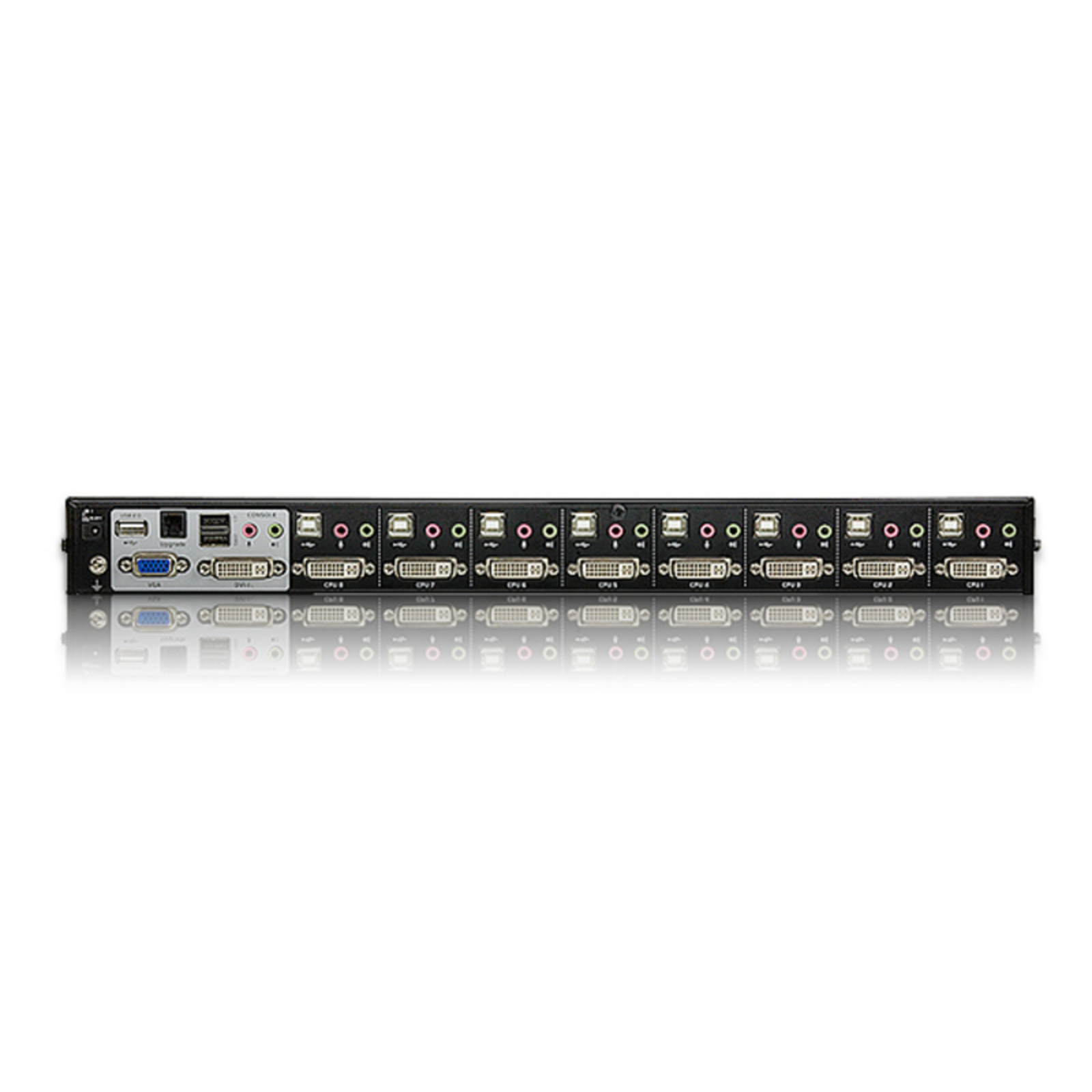

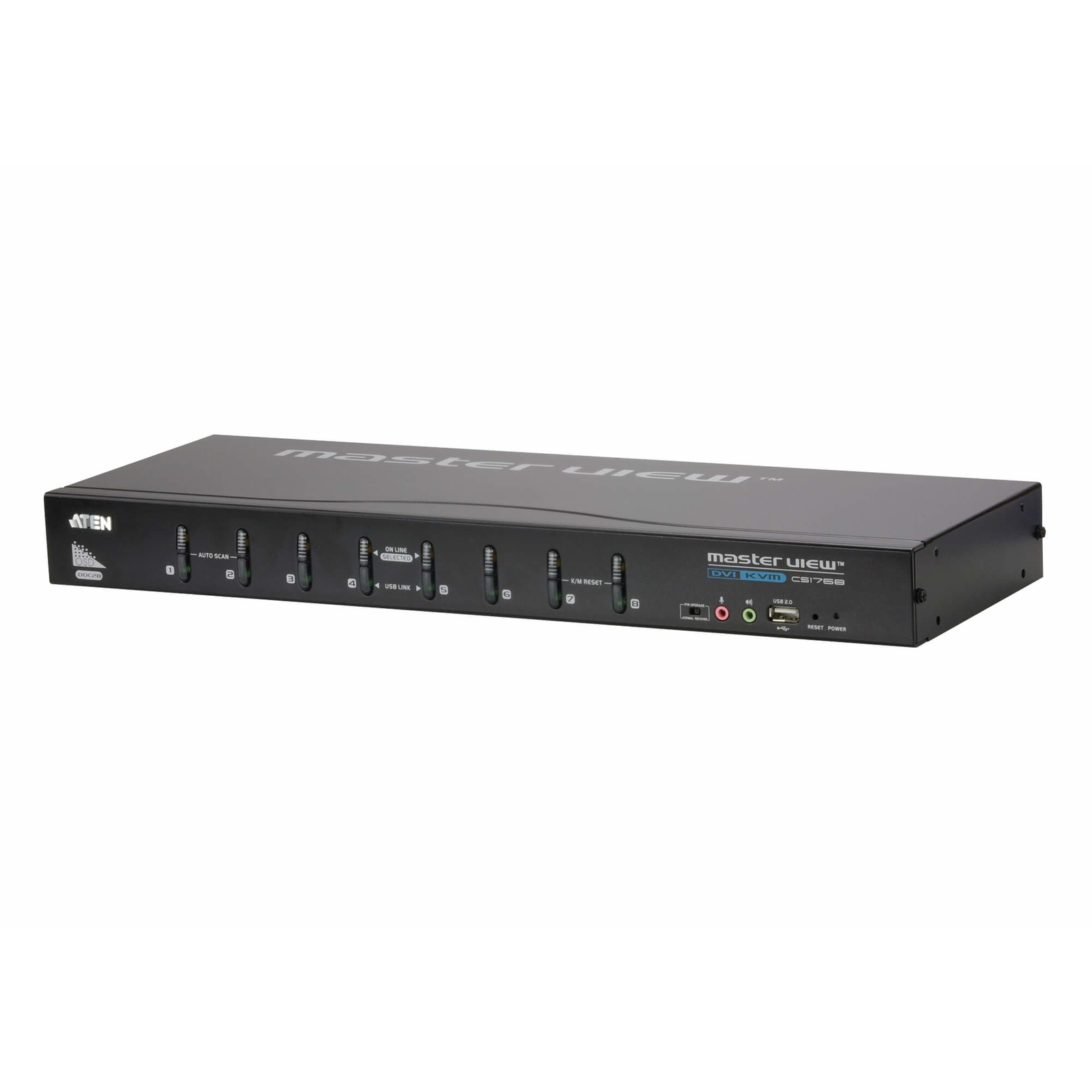

ATEN 8-Port USB DVI KVM Switch with Audio

ATEN 8-Port USB DVI KVM Switch with Audio
ATEN 8-Port USB DVI KVM Switch with Audio
✅ In Stock
ATEN 8-Port USB DVI KVM Switch with Audio
ATEN 8-Port USB DVI KVM Switch with Audio


Backordered goods
Arrives by 19 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
ATEN 8-Port USB DVI KVM Switch with Audio
incl. VAT: R16,239
R14,121
  • Stock: In Stock
  • Brand: ATEN
  • Model: CS1768
  • EAN: 4710423774438
  • Warranty: 1 year
ATEN

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
  • Supports a digital (DVI) or analog (VGA) video output; Cascadable to three levels – control up to 512 computers
  • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
  • Multi-Display feature – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)
Tags: aten switches , aten switche
The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management.
1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02U USB DVI-D KVM Cable Sets
1x Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1400][-837]
Ports & interfaces
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type DVI-I
Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
DVI-I ports quantity 8
USB 2.0 Type-B ports quantity 8
Console USB ports quantity 2
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 10
Number of microphone inputs 10
DC-in jack Yes
Performance
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Video bandwidth 60 Hz
Scan interval 1,5,255 s
DDC2B support Yes
Design
Product colour Black
Housing material Metal
LED indicators Yes
Push button Yes
Hot keys Yes
Display
Built-in display No
Power
Power source DC
Input voltage 5.3 V
Power consumption (typical) 4.53 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 437.2 mm
Depth 161.2 mm
Height 44 mm
Weight 3.61 kg
Packaging data
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 4.07 kg
Packaging content
Quick installation guide Yes
Manual Yes
Logistics data
Master (outer) case net weight 10.8 kg
Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 13.6 kg
Products per master (outer) case 3 pc(s)
