Access Point TP-LINK 15000 Mbps EAP787

- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity

Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M

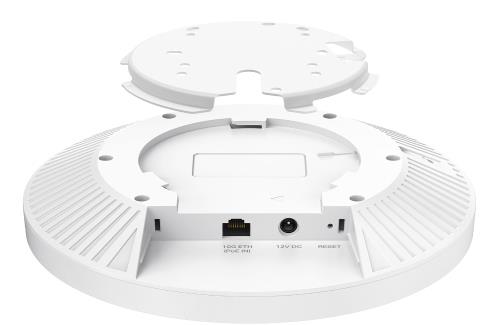

Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.

Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

• Tri-Band 8-Stream Wi-Fi 7
• Wi-Fi Speeds up to 15.0 Gbps†
• Dedicated Spectral Analyzer Radio
• 1× 10G/2.5G Port
• 802.3bt/at PoE
• Omada Mesh & Seamless Roaming△
• Centralized Management
• Easy, Quick Setup

Summary: OMADA EAP787. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: WPA, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White | Vendor Homepage: https://www.omadanetworks.com/my/business-networking/omada-wifi-ceiling-mount/eap787/ | 2.4 GHz: Yes | 5 GHz: Yes | 6 GHz: Yes | Maximum data transfer rate (2.4 GHz): 688 | Maximum data transfer rate (5 GHz): 8648 | Maximum data transfer rate (6 GHz): 5765 | Frequency band: 2.4 - 6 | Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n | Coverage area: 1750 | Number of users: 510 | Bluetooth: Yes | Automatic channel scanning: Yes | Automatic channel selection: Yes | MIMO: Yes | MIMO type: Multi User MIMO | VLAN support: Yes | Rate limiting: Yes | Flow control support: Yes | Band steering: Yes | Airtime Fairness (ATF): Yes | Quality of Service (QoS) support: Yes | BeamForming: Yes | Security algorithms: WPA/WPA2/WPA3 | Access Control List (ACL): Yes | DC-in jack: Yes | Power over Ethernet (PoE): Yes | DC voltage range: 12 | Input current: 2.5 | Placement: Ceiling,Wall | Product colour: White | Reset button: Yes | LED indicators: Yes | Antenna type: Internal | Certification: CE, FCC, RoHS, IC | Width: 220 | Depth: 220 | Height: 38.8 | Package type: Box | Quantity per pack: 1 | Mounting kit: Yes | Quick start guide: Yes | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): 0 - 40 | Storage temperature (T-T): -40 - 70 | Storage relative humidity (H-H): 5 - 90 | Unit Calculated Weight: 2.5 | Product Net Weight: 1 | Unit Calculated Volume: 0.01096 | Name: WRL ACCESS POINT 15000MBPS/TRI-BAND EAP787 TP-LINK | Model: EAP787 | Model name: EAP787
