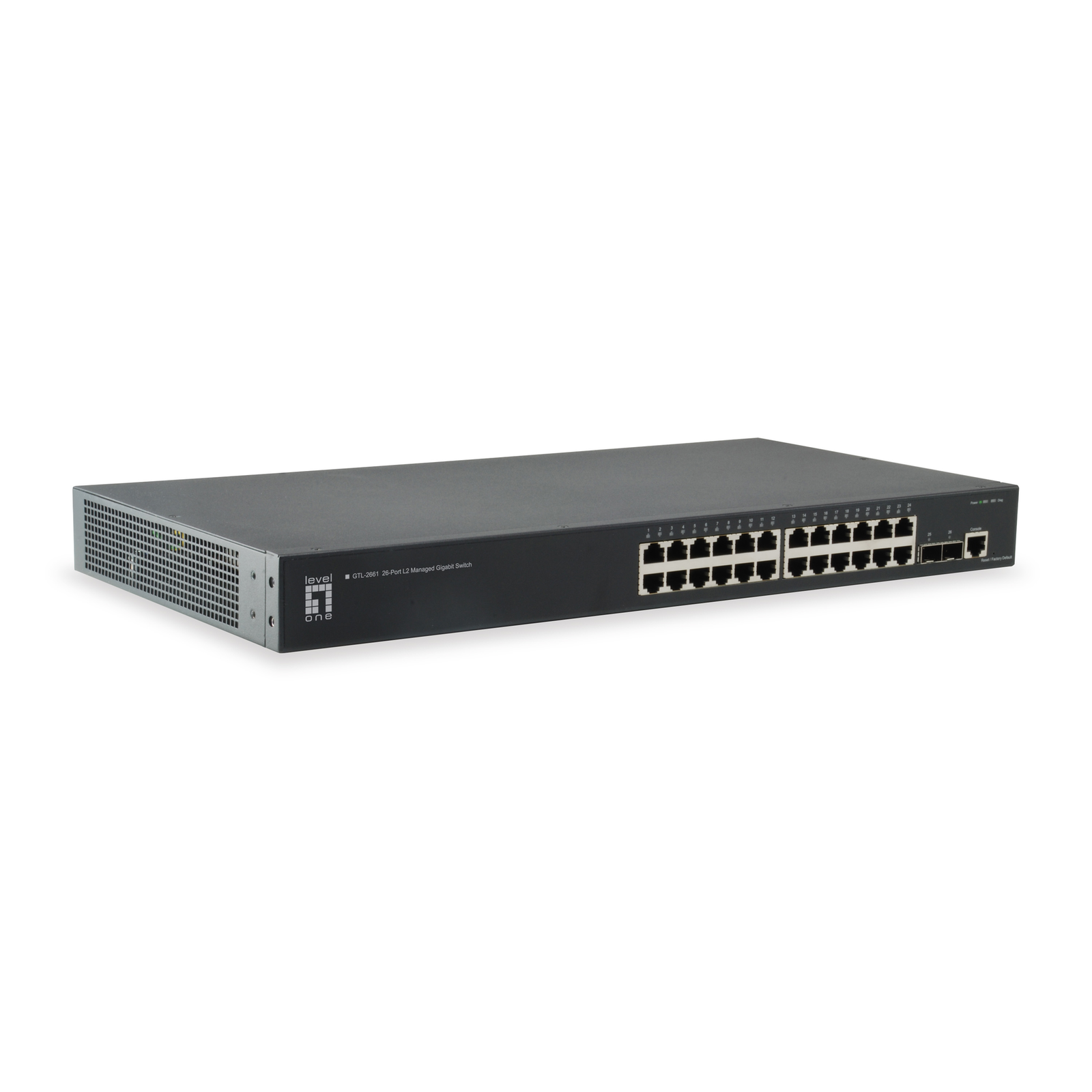

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+
✅ In Stock


Backordered goods
Arrives by 19 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+
incl. VAT: R7,181
R6,244
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: GTL-2661
  • EAN: 4015867203057
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • 24 Gigabit Ethernet ports and 2 10-Gigabit SFP+ slots
  • IEEE 802.3ad LACP for auto port aggregation
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
  • MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
  • Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Supports IPv4/IPv6 network operation
Tags: levelone switches , levelone switche
The GTL-2661 series includes high performance Gigabit Ethernet Layer2 switches featuring 26 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual port module. The switch is ideal for high performance server aggregations, such as enterprise data centers, where it can connect high end or network attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit to the desktop for power users. This switch is packed with features and is a cost effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1488][-844]
Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Traffic classification Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 2
Console port RJ-45
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Cable length detection Yes
VLAN support Yes
Virtual LAN features Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Data transmission
MAC address table 16000 entries
Switching capacity 88 Gbit/s
Forwarding rate 65.5 Mpps
Store-and-forward Yes
Number of queues 8
Static route Yes
Jumbo frames support Yes
Jumbo frames 10000
Packet buffer memory 12 MB
Security
DHCP features DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
Access Control List (ACL) Yes
Static port security Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
Password protection Yes
DoS attack prevention Yes
Protocols
Management protocols MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP
Supported network protocols IPv4/IPv6
Design
Rack mounting Yes
Product colour Black
Reset button Yes
LED indicators Activity, Link, Power
Safety UL
Performance
Internal memory 32 MB
Firmware upgradeable Yes
Telnet Yes
Fanless Yes
Mean time between failures (MTBF) 636219 h
Power
Power source AC
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 20 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 68.242 BTU/h
Weight & dimensions
Width 220 mm
Depth 440 mm
Height 44 mm
Weight 2.29 kg
Packaging content
Cables included AC, LAN (RJ-45)
Quick start guide Yes
Rack mount kit Yes
Packaging data
Package type Box
Resource CD Yes
Package width 405 mm
Package depth 580 mm
Package height 80 mm
Package weight 3.02 kg
Certificates
Certification CE class A, FCC, VCCI, BSMI
Logistics data
Country of origin China
Master (outer) case width 340 mm
Master (outer) case length 600 mm
Master (outer) case height 435 mm
Harmonized System (HS) code 85176990
Master (outer) case gross weight 11 kg
Products per master (outer) case 4 pc(s)
