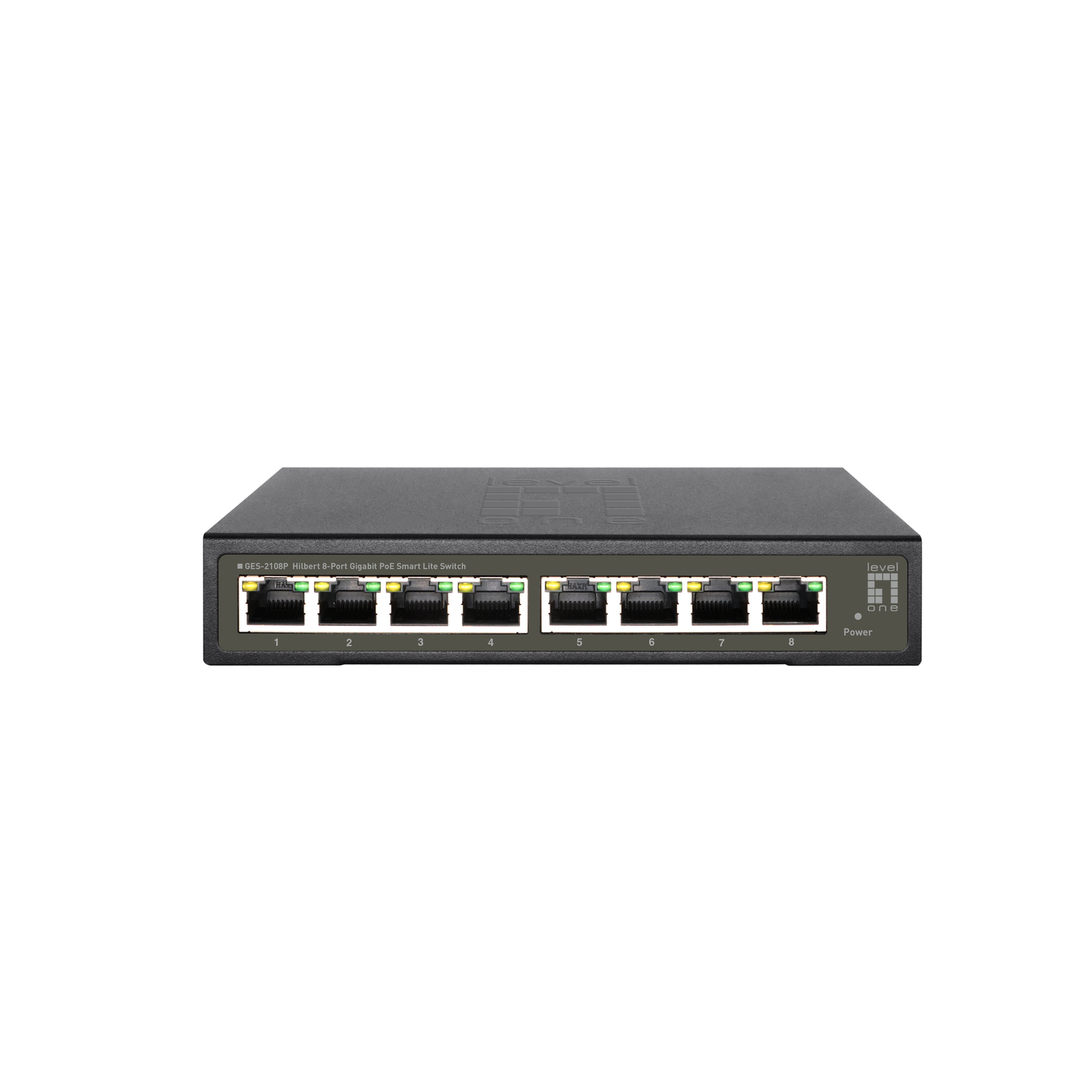

LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget

LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget
✅ In Stock


Backordered goods
Arrives by 21 September (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne Hilbert 8-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 8 PoE Outputs, 112.8W PoE Power Budget
incl. VAT: R3,870
R3,365
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: GES-2108P
  • EAN: 4015867229200
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • 8 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog
  • Total PoE power budget: 112.8W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 4K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management
Tags: levelone switches , levelone switche
The LevelOne GES-2108P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2108P delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 112.8W) ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2108P provides high HW performance and environment flexibility for Enterprises. GES-2108P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership."
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1488][-844]
Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 8
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring Yes
Full duplex Yes
Half duplex Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
VLAN support Yes
Virtual LAN features Tagged VLAN
Number of VLANs 32
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Number of queues 4
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 1.5 MB
Security
IGMP snooping Yes
Multicast features
Multicast support Yes
Design
Rack mounting No
Product colour Black
LED indicators Activity, Link, PoE
Performance
Flash memory 2 MB
Noise level 0 dB
Fanless Yes
Mean time between failures (MTBF) 43800 h
Power
Power source DC/PoE
Power supply included Yes
DC input voltage 54 V
Input current 2.2 A
Power consumption (max) 120 W
Surge protection Yes
Surge protection voltage 8 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 112.8 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 27.3 BTU/h
Weight & dimensions
Width 160 mm
Depth 95 mm
Height 29 mm
Weight 400 g
Packaging content
Cables included AC
Packaging data
AC adapter included Yes
Package type Box
Package width 310 mm
Package depth 230 mm
Package height 65 mm
Package weight 1.3 kg
Technical details
Master (outer) cases per pallet (air) 18 pc(s)
Pallet gross length 80 cm
Pallet gross width 120 cm
Pallet height (air) 158.4 cm
Certificates
Compliance certificates CE, RoHS
Certification UKCA, FCC Class A
Logistics data
Master (outer) case net weight 600 g
Country of origin China
Master (outer) case width 350 mm
Master (outer) case length 330 mm
Master (outer) case height 480 mm
Master (outer) case gross weight 13.6 kg
Products per master (outer) case 10 pc(s)
Sustainability
Sustainability compliance Yes
