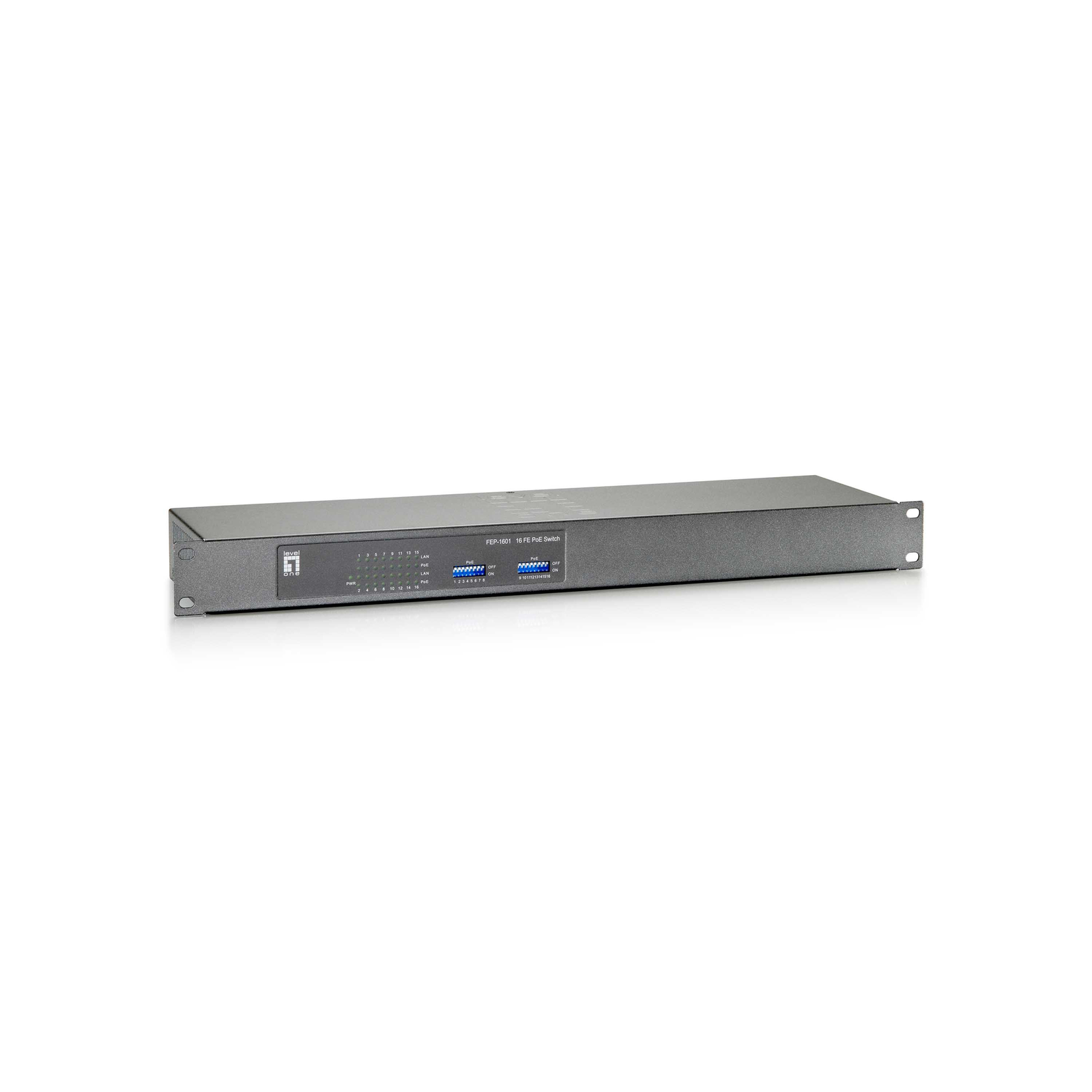

LevelOne 16-Port Fast Ethernet PoE Switch, 120W

LevelOne 16-Port Fast Ethernet PoE Switch, 120W
✅ In Stock


Backordered goods
Arrives by 19 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne 16-Port Fast Ethernet PoE Switch, 120W
incl. VAT: R8,467
R7,363
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: FEP-1601W120
  • EAN: 4015867199848
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • 10BASE-T, 100BASE-TX
  • MAC address table: 4000 entries Switching capacity: 3.2 Gbit/s
  • Rack mounting
  • Power over Ethernet (PoE)
Tags: levelone switches , levelone switche
FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports

Key Features
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- PoE on/off control per port by dip switches
- 19-inch metal housing
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1477][-881]
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Network
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Full duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Data transmission
MAC address table 4000 entries
Switching capacity 3.2 Gbit/s
Store-and-forward Yes
Packet forwarding rate (100 Mbps) 148000 pps
Packet forwarding rate (10 Mbps) 14880 pps
Design
Rack mounting Yes
Product colour Grey
LED indicators Activity, PoE, Power
On/off switch Yes
Performance
Buffer size 160 KB
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 5 A
Power consumption (typical) 120 W
Power protection features Over current
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 112 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 480 mm
Depth 118 mm
Height 44 mm
Weight 2.2 kg
Packaging content
Cables included AC
Manual Yes
Packaging data
Package type Box
Package width 222 mm
Package depth 146 mm
Package height 78 mm
Package weight 400 g
Certificates
Certification FCC, CE, RoHS
Logistics data
Country of origin Taiwan
Master (outer) case width 420 mm
Master (outer) case length 310 mm
Master (outer) case height 260 mm
Harmonized System (HS) code 85176990
Master (outer) case gross weight 17 kg
Products per master (outer) case 10 pc(s)
