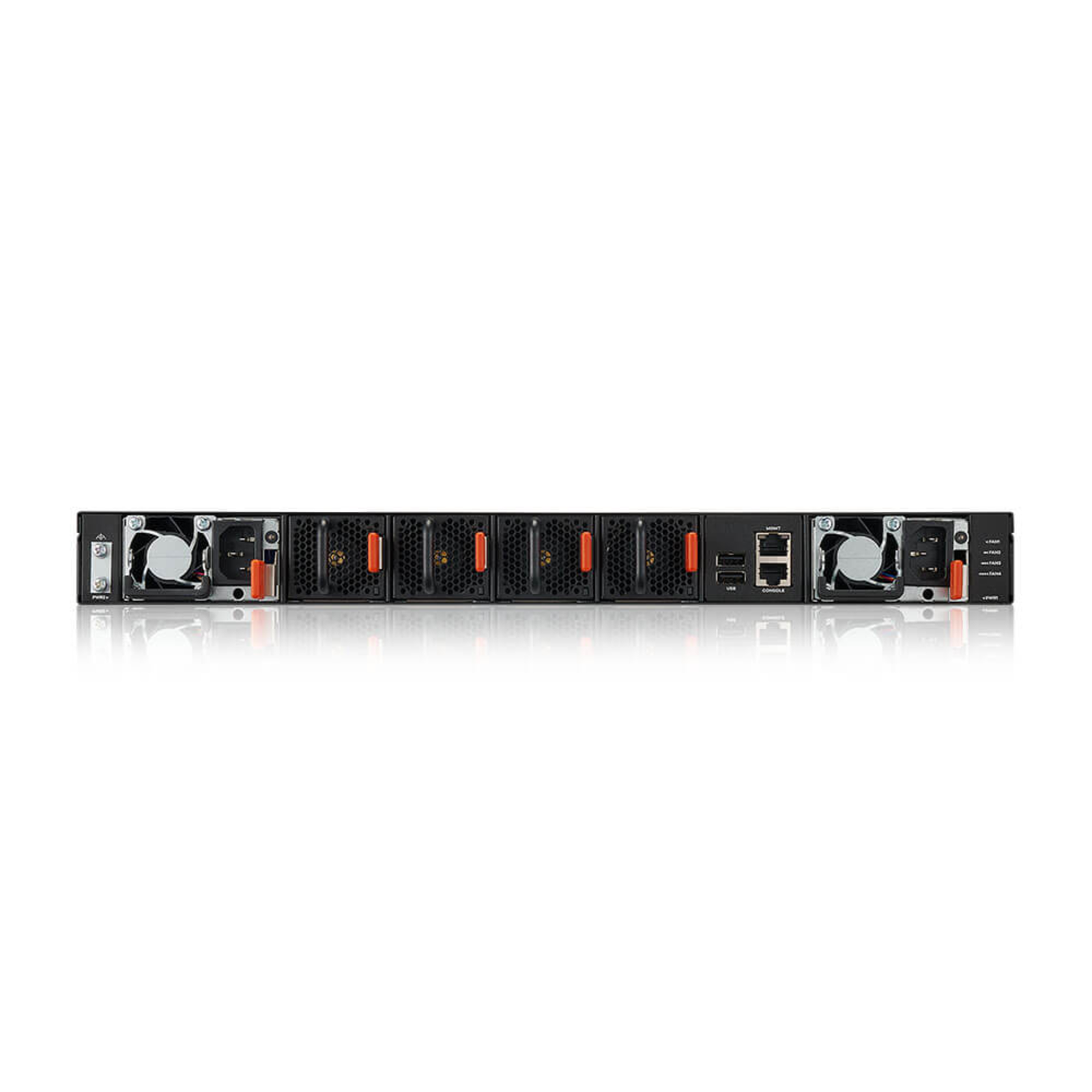

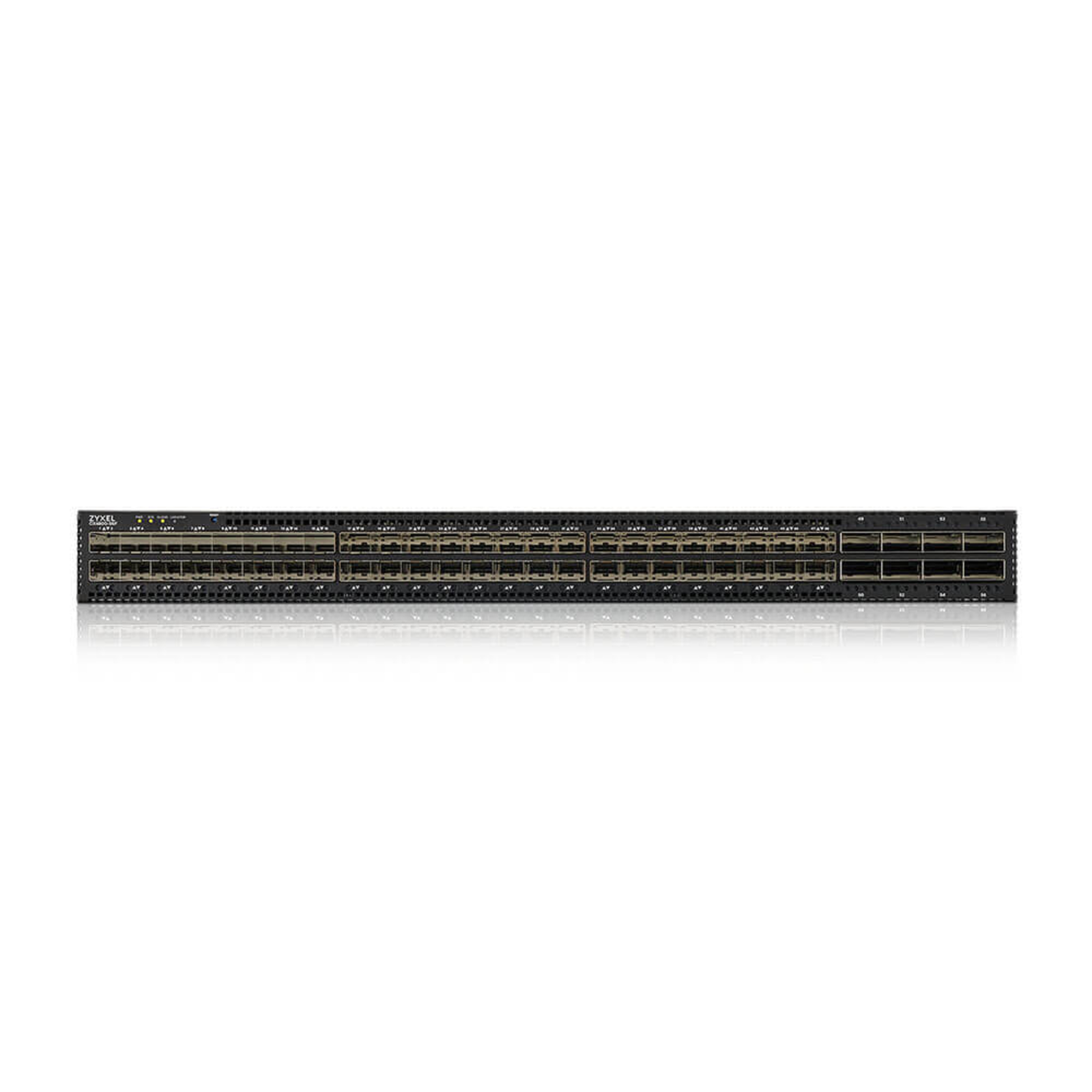

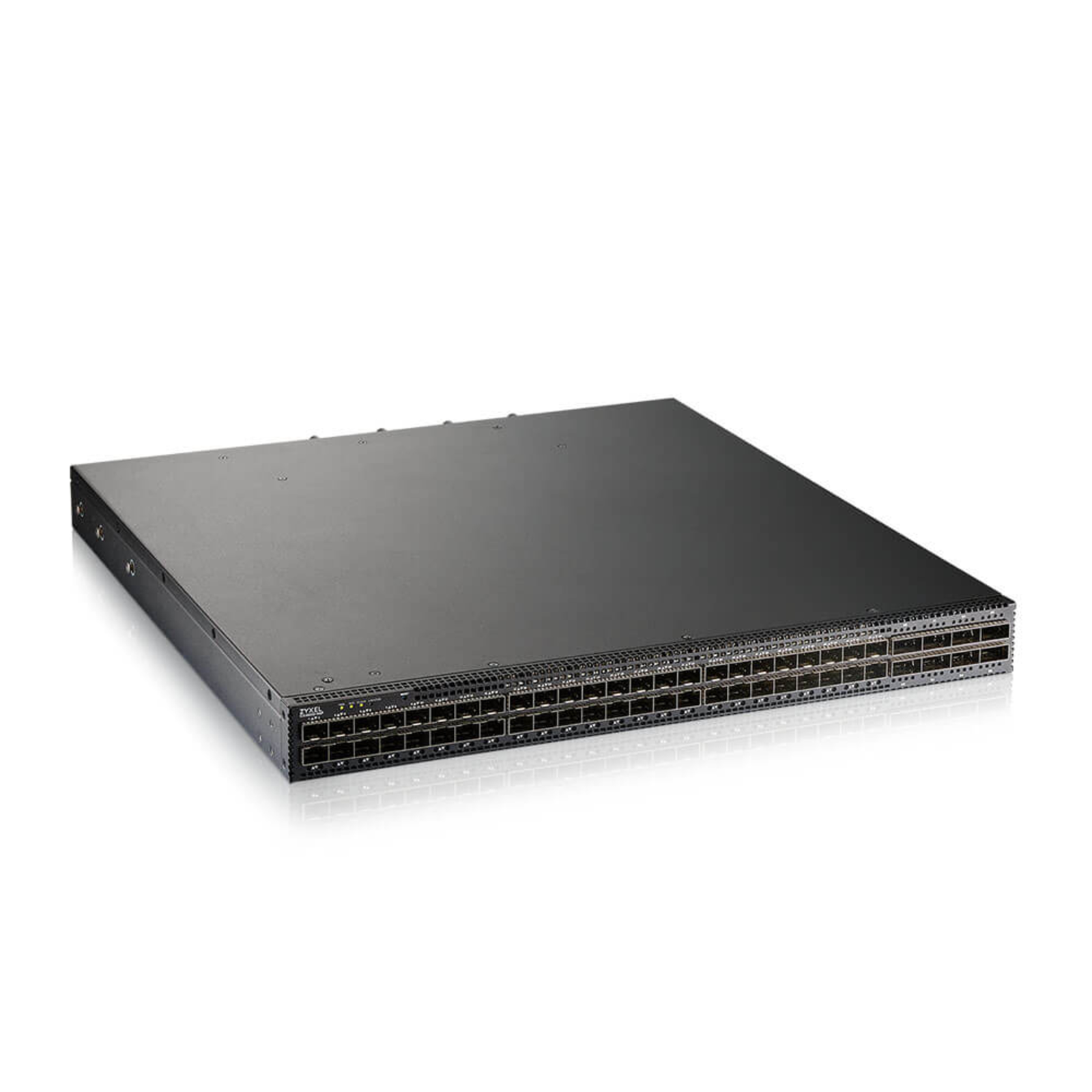

Zyxel CX4800-56F Managed L3 1U Black

Zyxel CX4800-56F Managed L3 1U Black
Zyxel CX4800-56F Managed L3 1U Black
Zyxel CX4800-56F Managed L3 1U Black
✅ In Stock
Zyxel CX4800-56F Managed L3 1U Black
Zyxel CX4800-56F Managed L3 1U Black
Zyxel CX4800-56F Managed L3 1U Black


Backordered goods
Arrives by 19 October (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
Zyxel CX4800-56F Managed L3 1U Black
incl. VAT: R177,653
R154,481
  • Stock: In Stock
  • Brand: ZYXEL
  • Model: CX4800-56F-EU0101F
  • EAN: 4718937637034
  • Warranty: 1 year

Available Options

Key features

  • Supports NebulaFlex Pro to switch between standalone and 1-year Pro Pack Nebula cloud
  • High-density 48-port 10G/25G SFP28, and 8-port 100G QSFP28 uplinks
  • Advanced Layer 2 switching and static routing
  • High-resiliency, hot-swappable dual power modules and four fan trays
  • Networked AV mode brings efficiency to setup professional 4K streaming AVoIP networks
Future Proof Aggregation & Core Switch

The CX4800-56F supports a full suite of Layer 2 features, including VLAN, ACL, port aggregation, and 802.1X, to enhance security by preventing unauthorized access to cloud resources and AI workloads, optimize bandwidth for high-speed GPU data transfers, and enable dynamic, isolated workload environments in large-scale AI and cloud deployments.

Nebula, The Intelligent Cloud Management

Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.

Dedicated Networked AV Mode

The CX4800-56F features a custom-designed networked AV mode for standalone operation. It supports 10G Ethernet with pixel-perfect 4K60 video streaming in real-time, making it ideal for applications ranging from live events to XR and medical imaging. Leveraging AI intelligence, the switch simplifies the setup process by automatically configuring all necessary parameters, enabling a professional AVoIP deployment within minutes.
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1477][-881]
Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 0
Basic switching RJ-45 Ethernet ports type No
USB Type-A ports quantity 2
Number of management ports 1 pc(s)
Console port RJ-45
QSFP28 ports quantity 8
SFP28 ports quantity 48
Power connector AC/DC
Network
10G support Yes
Port mirroring Yes
Policy-based routing Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
VLAN support Yes
Data transmission
MAC address table 30000 entries
Switching capacity 4000 Gbit/s
Static route Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 32 MB
Security
DHCP features DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms SSH-2, SSL/TLS
MAC address filtering Yes
SSH/SSL support Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Form factor 1U
Product colour Black
Reset button Yes
LED indicators Yes
Performance
Memory type RAM / Flash
Internal memory 8000 MB
Flash memory 64 MB
Mean time between failures (MTBF) 5900181.1 h
Power
Power source AC/DC
Power supply included Yes
Number of power supply units 2
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Storage relative humidity (H-H) 10 - 95%
Heat dissipation 1122 BTU/h
Weight & dimensions
Width 440 mm
Depth 489 mm
Height 45 mm
Weight 8.62 kg
Packaging content
Cables included AC
Rack mount kit Yes
Packaging data
Package type Box
Package width 595 mm
Package depth 706 mm
Package height 206 mm
Logistics data
Country of origin Taiwan
