✅ In Stock
ATEN

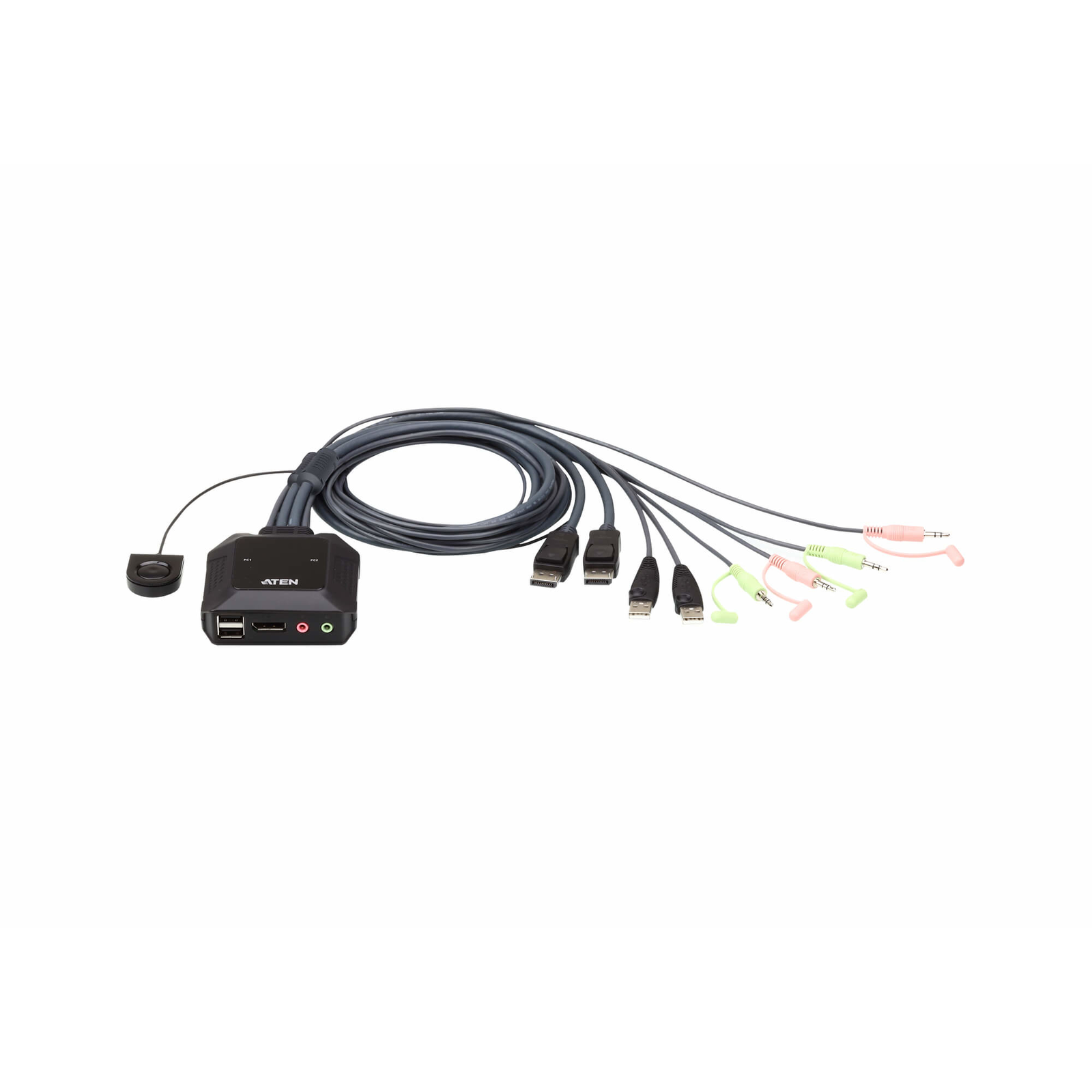

ATEN 2-Port USB DisPlayPort Cable KVM Switch

R1,781
incl. VAT: R2,048
  • Stock: Backordered - delivers in 10-15 days
  • Brand: ATEN
  • Model: CS22DP-AT
  • Weight: 0.42 kg
  • Dimensions: 23 × 6 × 16 cm
  • EAN: 4719264645525
  • Product code: 412468
Backordered goods Delivery in 10–15 working days

Available Options

R1,781 incl. VAT: R2,048
SavePDF

Key features

  • One KVM console controls two USB DisplayPort computers
  • Superior video quality – up to 4096 x 2160 @ 30Hz
  • Multiplatform support – Windows, Mac, and Linux
  • Bus-powered design

Description

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions

Specifications

Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity 1
DisplayPort version 1.1
Console USB ports quantity 2
USB 2.0 ports quantity 2
USB connector type Micro-USB B, USB Type-A
Audio connections Yes
Headphone outputs 1
Number of microphone inputs 1
Network
Ethernet LAN No
Performance
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 30 Hz
HDCP Yes
Hot-Plug support Yes
Design
Rack mounting No
Product colour Black
Housing material Plastic
Wired remote switch Yes
Cable length 1.2 m
Remote switch cable length 1.8 m
LED indicators Yes
Display
Built-in display No
Power
Power source DC
Input voltage 5 V
Power consumption (typical) 1.38 W
USB powered Yes
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Sustainability
Sustainability certificates RoHS
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 84.2 mm
Depth 83.4 mm
Height 30.4 mm
Weight 360 g
Packaging data
Package width 55 mm
Package depth 155 mm
Package height 225 mm
Package weight 435 g
Packaging content
Manual Yes
Logistics data
Master (outer) case net weight 7.2 kg
Harmonized System (HS) code 85176200
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Master (outer) case height 330 mm
Master (outer) case gross weight 9.33 kg
Products per master (outer) case 20 pc(s)
