Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White – photo 1

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White – photo 2

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White – photo 3

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White – photo 4

✅ In Stock Out of Stock / Please Enquire ETA

CUDY

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

R4,313

incl. VAT: R4,960

Stock: Out of Stock / Please Enquire ETA
Brand: CUDY
Model: P4 1.0
Weight: 1.14 kg
Dimensions: 13 × 15 × 32 cm
EAN: 6971690793562
Product code: 377222

Please Inquire

R4,313 incl. VAT: R4,960

We will email you when the product is back in stock.

Key features

5G Rel. 16 with Max 3.4 Gbps DL
NR 2CA, LTE 4CA, ENDC, 4×4 MIMO
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi
3× Gigabit Ethernet Ports
1× Nano SIM Slot
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control

Tags: cudy wired routers , cudy wired router

Description
Specifications

A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features dual Qualcomm chipsets, one SIM slot, and a high-capacity AX3000 WiFi 6.

Qualcomm X62 5G Modem

5G. Max 3.4 Gbps Download.
Equipped with the advanced 5G Rel. 16 standard, P4 pushes cellular download speed up to 3.4 Gbps that rivals a broadband.

Qualcomm Wi-Fi 6 Chipset

150% Faster Wi-Fi Speed

The super-fast AX3000 Wi-Fi 6 built on powerful Qualcomm dual-core CPU provides high-capacity connectivity. Stream 4K live feed and download at full speed with ease.

Plug in a SIM Card to Enjoy the Network

Home

Plug and play easy-to-install WiFi for every home—no rigid broadband subscription.

Automobile

Provide decent networks for all devices on your road journey.

Surveillance

Make sure the network is always on with the backup function.

Booth

Utilize the flexible pay-as-you-go SIM card plan to equip your temporary booth with a fast network. (SIM card is not included)

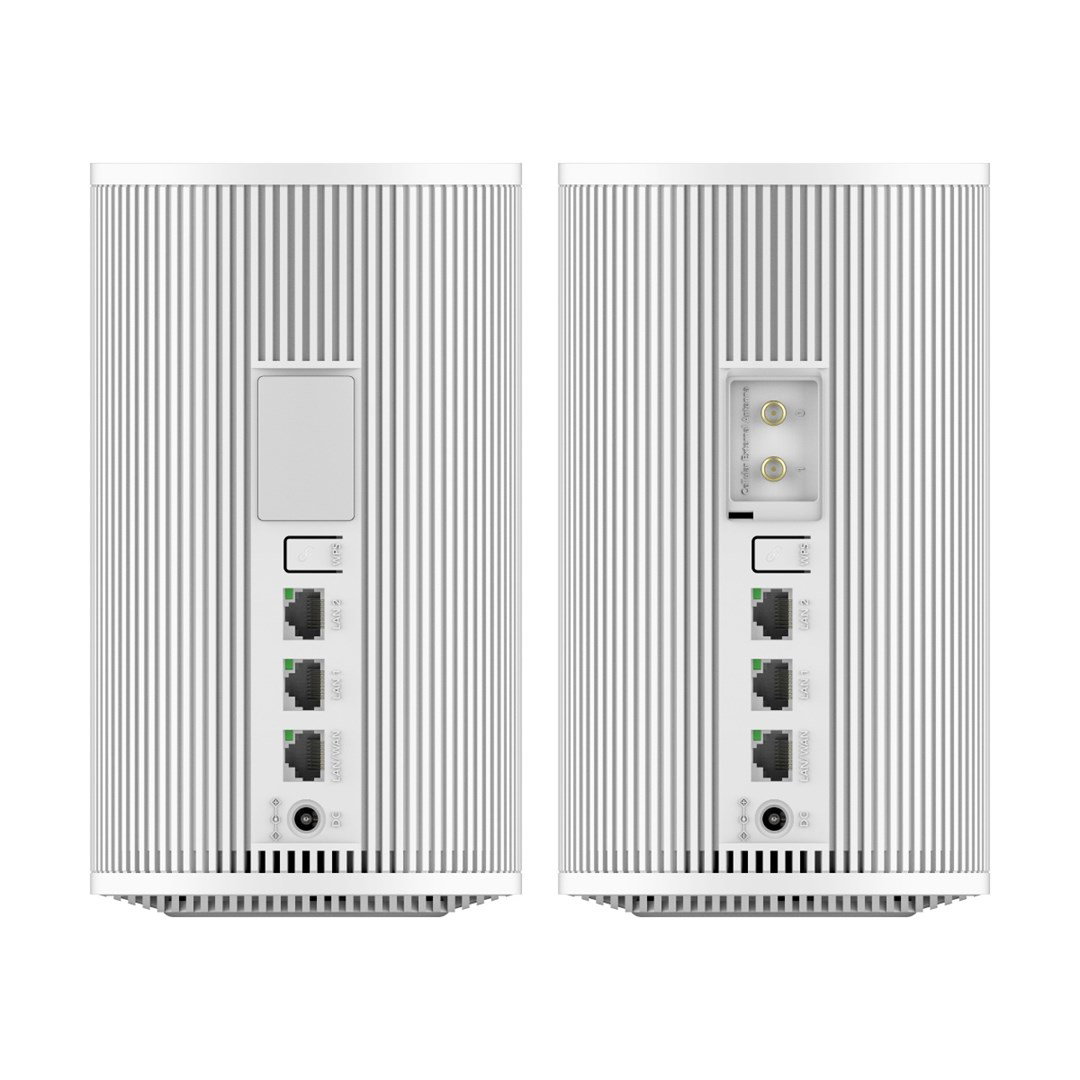

Multiple Ports

Abundant Wired Connectivity

Three Gigabit Ethernet ports provide stable wired network sharing. Two SMA connectors allow you to install customized extension cellular antennas.

Tools for a Customized Network

Secure VPN Access

In addition to the management via Cudy cloud, this router supports multiple VPN protocols to enable remote Work-From-X, or sharing a commercial VPN for all.

Keep You Connected

Set the WAN/LAN port as WAN mode, connect your network to broadband service, then back it up with a 5G connection.

WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	3400 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Modulation	1024-QAM, OFDMA
Channel bandwidth	120 MHz
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port forwarding	Yes
Port triggering	Yes
VPN server	Y
Ping check	Yes
PPPoE/PPTP/L2TP pass-through	Yes
Mobile network
Mobile network generation	5G
3G standards	WCDMA
4G standard	LTE-TDD & LTE-FDD
5G standard	Sub6, NR
SIM card type	NanoSIM + eSIM
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
USB port	No
DC-in jack	Yes
Management features
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
Number of data streams	4x4
Security
Security algorithms	WPA, WPA2, WPA3
Firewall	Yes
Guest access	Yes
Parental control	Yes
DDoS protection	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
System event log	Yes
IGMP snooping	Yes
DMZ support	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Design
Product type	Desktop/pole router
Product colour	White
LED indicators	Power, WLAN
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE

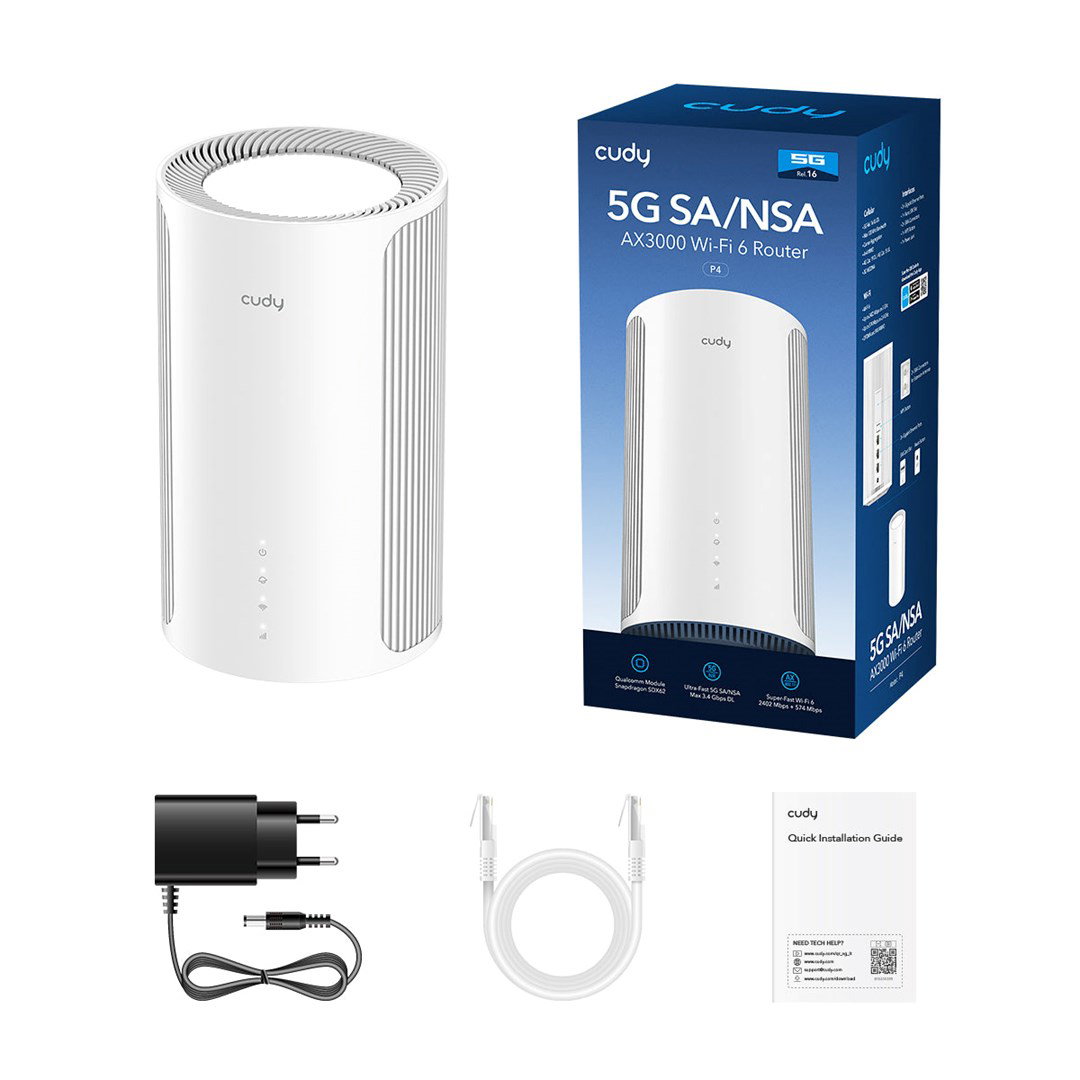

Packaging content
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	Internal
Antenna connector type	SMA
Antennas quantity	6
Features
Built-in processor	Yes
Processor architecture	ARM Cortex-A53
Processor frequency	1000 MHz
Processor cores	2
Internal memory	512 MB
Internal memory type	DDR3
Flash memory	128 MB
Languages support	Multi
Firmware upgradeable	Yes
Power
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	2.5 A
Power consumption (typical)	21.7 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	116 mm
Depth	116 mm
Height	202 mm
Weight	656 g
Packaging data
Package width	313 mm
Package depth	152 mm
Package height	132 mm
Package weight	1.12 kg
Logistics data
Master (outer) case width	554 mm
Master (outer) case length	321 mm
Master (outer) case height	332 mm
Master (outer) case gross weight	9.8 kg
Other features
Number of users	256 user(s)
