✅ In Stock

TP-LINK

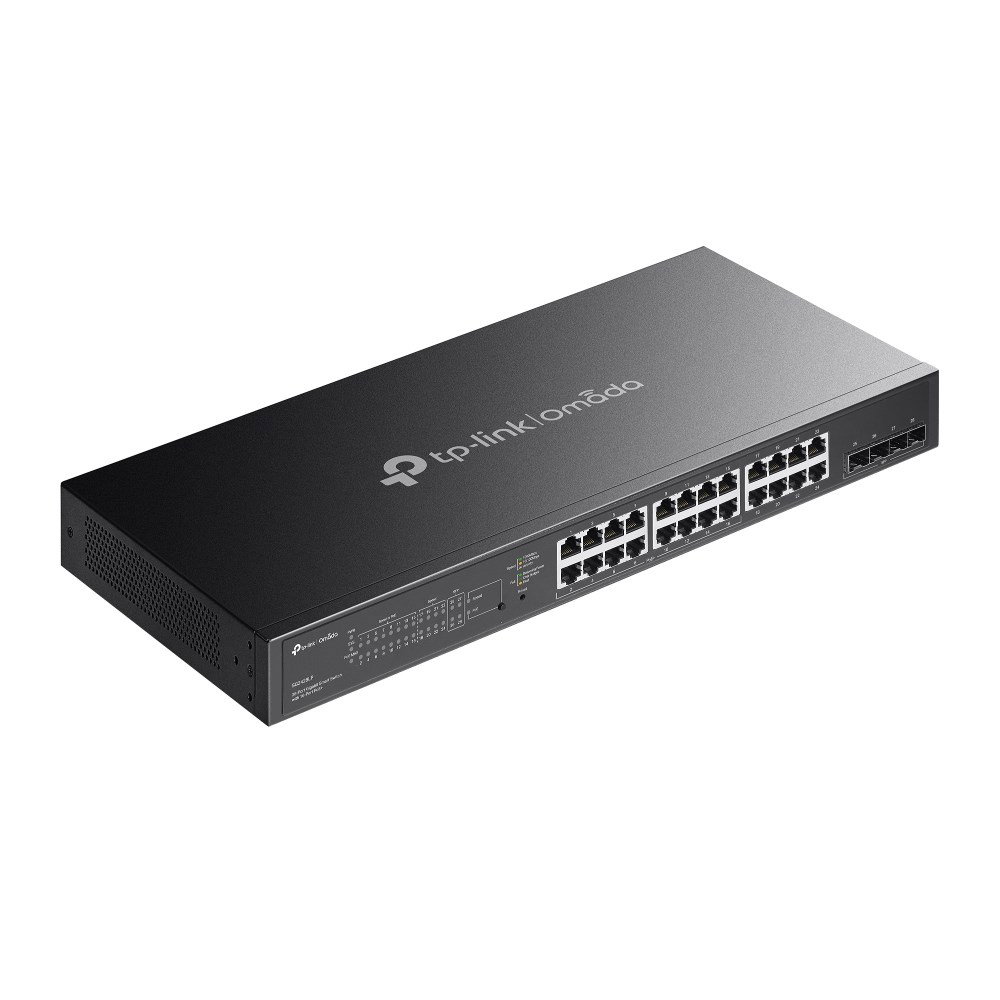

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

R5,499

incl. VAT: R6,324

Stock: Backordered - delivers in 10-15 days
Brand: TP-LINK
Model: SG2428LP
Weight: 4 kg
Dimensions: 34 × 11 × 54 cm
EAN: 8885020620832
Product code: 375700

TP-LINK

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R5,499 incl. VAT: R6,324

Qty

Save PDF

Key features

16× Gigabit 802.3af/at PoE+ ports
8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
150 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for quiet operation
Durable metal casing and rackmountable design

Tags: tp-link switches , tp-link switche

Description
Specifications

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Security
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Password protection	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Performance
Fanless	Yes
Power
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	184.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	628 BTU/h
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
