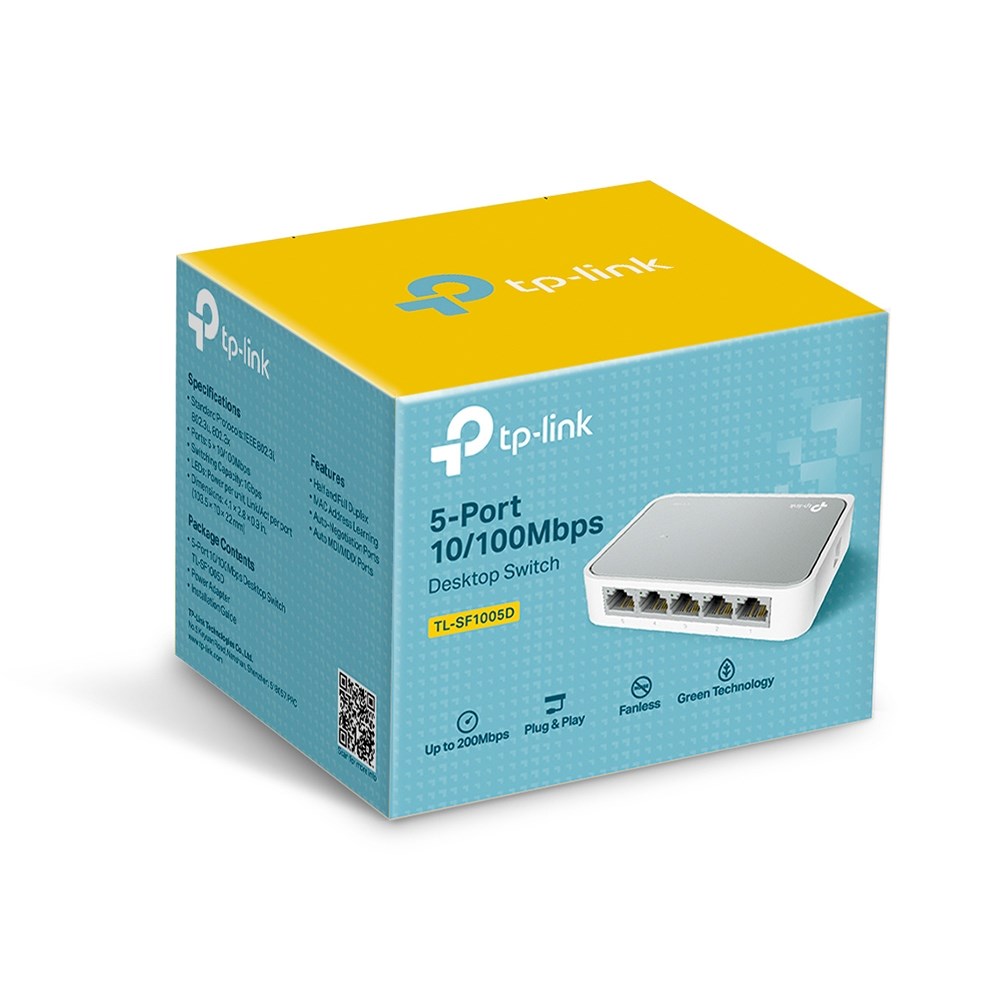

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White – photo 1

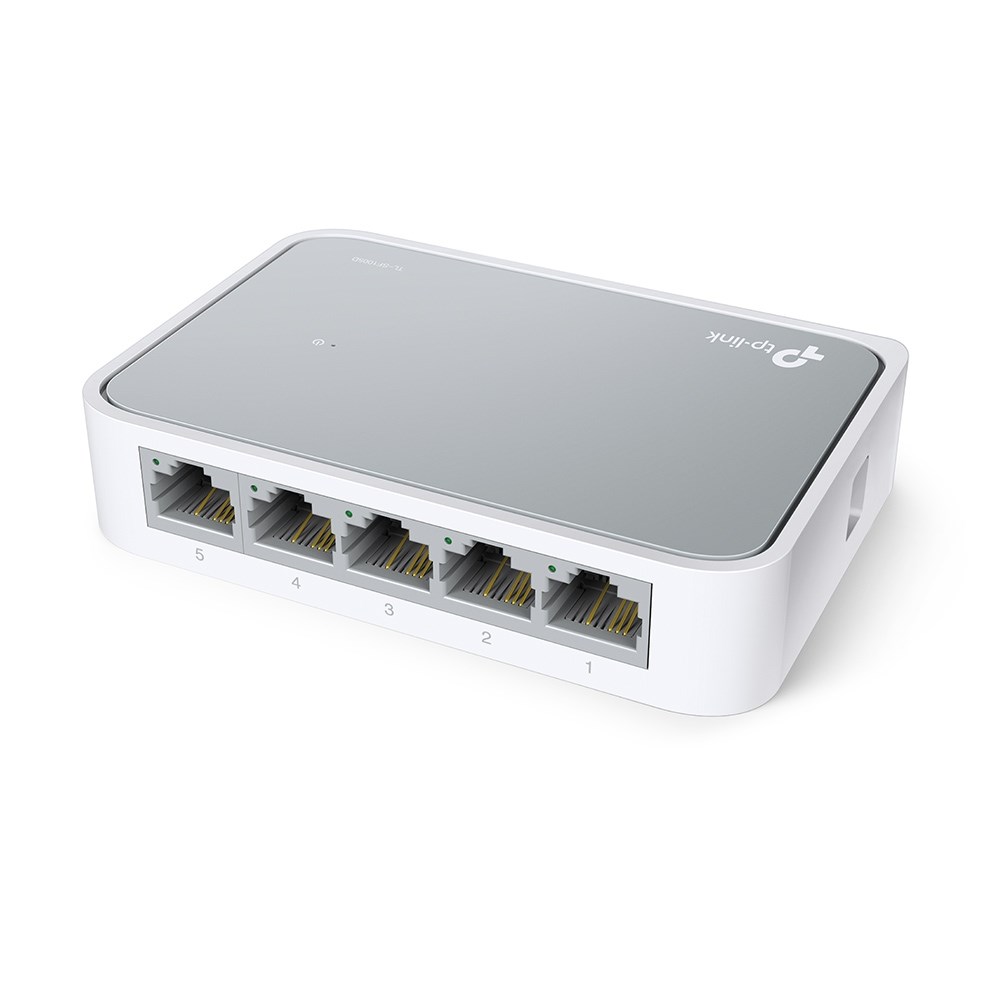

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White – photo 2

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White – photo 3

Out of Stock / Please Enquire ETA

TP-LINK

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

incl. VAT: R743

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: TL-SF1005D
Weight: 0.19 kg
Dimensions: 9 × 11 × 9 cm
EAN: 6935364020064
Product code: 375352

TP-LINK

Please Inquire

R646 incl. VAT: R743

We will email you when the product is back in stock.

Key features

Managed Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
10BASE-T, 100BASE-T
MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
DC

Tags: tp-link switches , tp-link switche

Description
Specifications

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

High Performance

TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto-negotiation	Yes
Data transmission
MAC address table	1000 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Yes
Protocols
Supported network protocols	CSMA/CD, TCP/IP
Design
Rack mounting	No
Product colour	White
LED indicators	Yes
Performance
Fanless	Yes
Power
Power source	DC
Power supply included	No
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	5 V
Input current	0.6 A
Power consumption (typical)	1.87 W
Power consumption (max)	1.87 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	6.38 BTU/h
Weight & dimensions
Width	103.5 mm
Depth	70 mm
Height	22 mm
Packaging content
Cables included	AC
User guide	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Package width	91 mm
Package depth	108 mm
Package height	85 mm
Package weight	190 g
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, RoHs
Sustainability
Sustainability compliance	Yes
