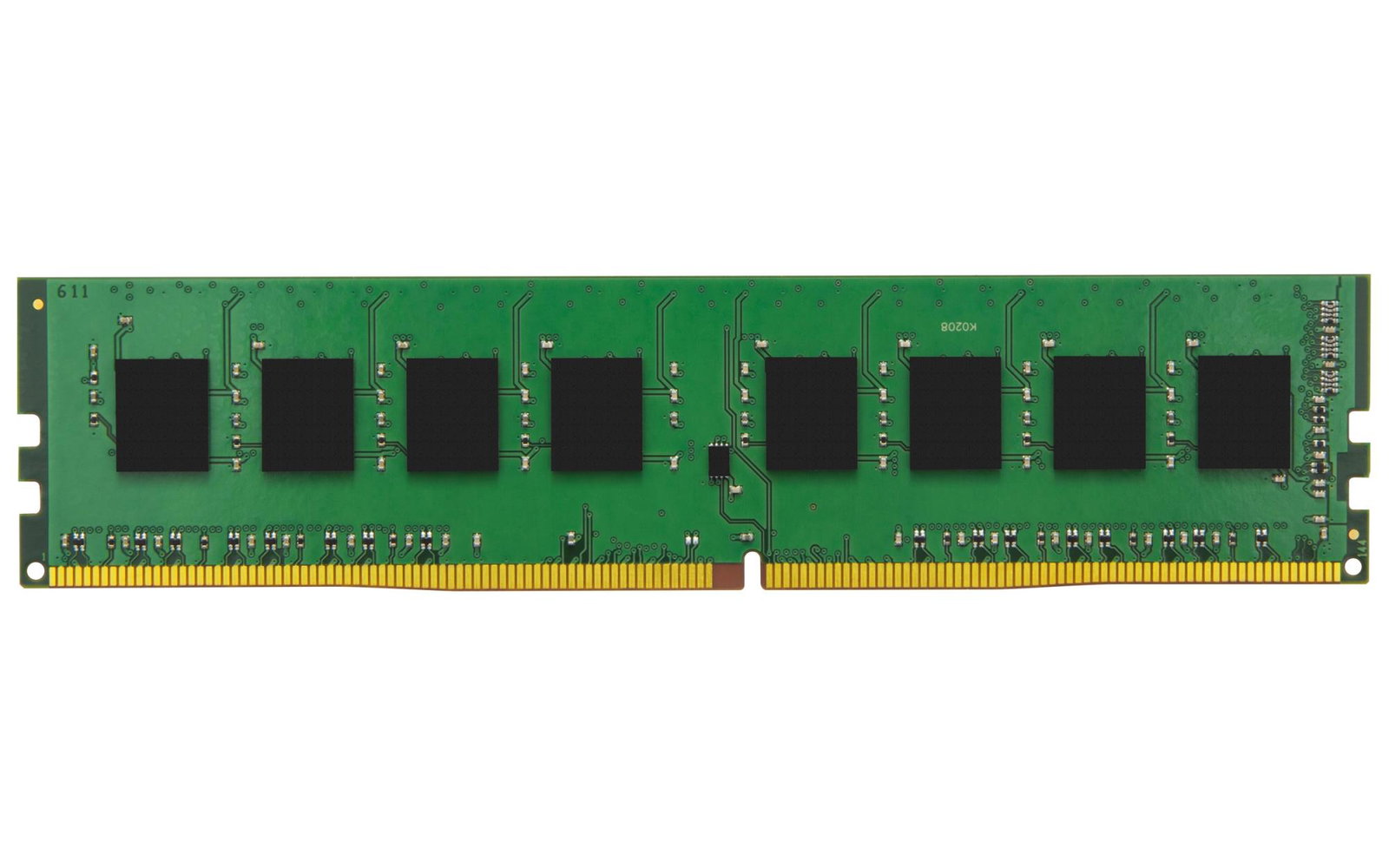

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM – photo 1

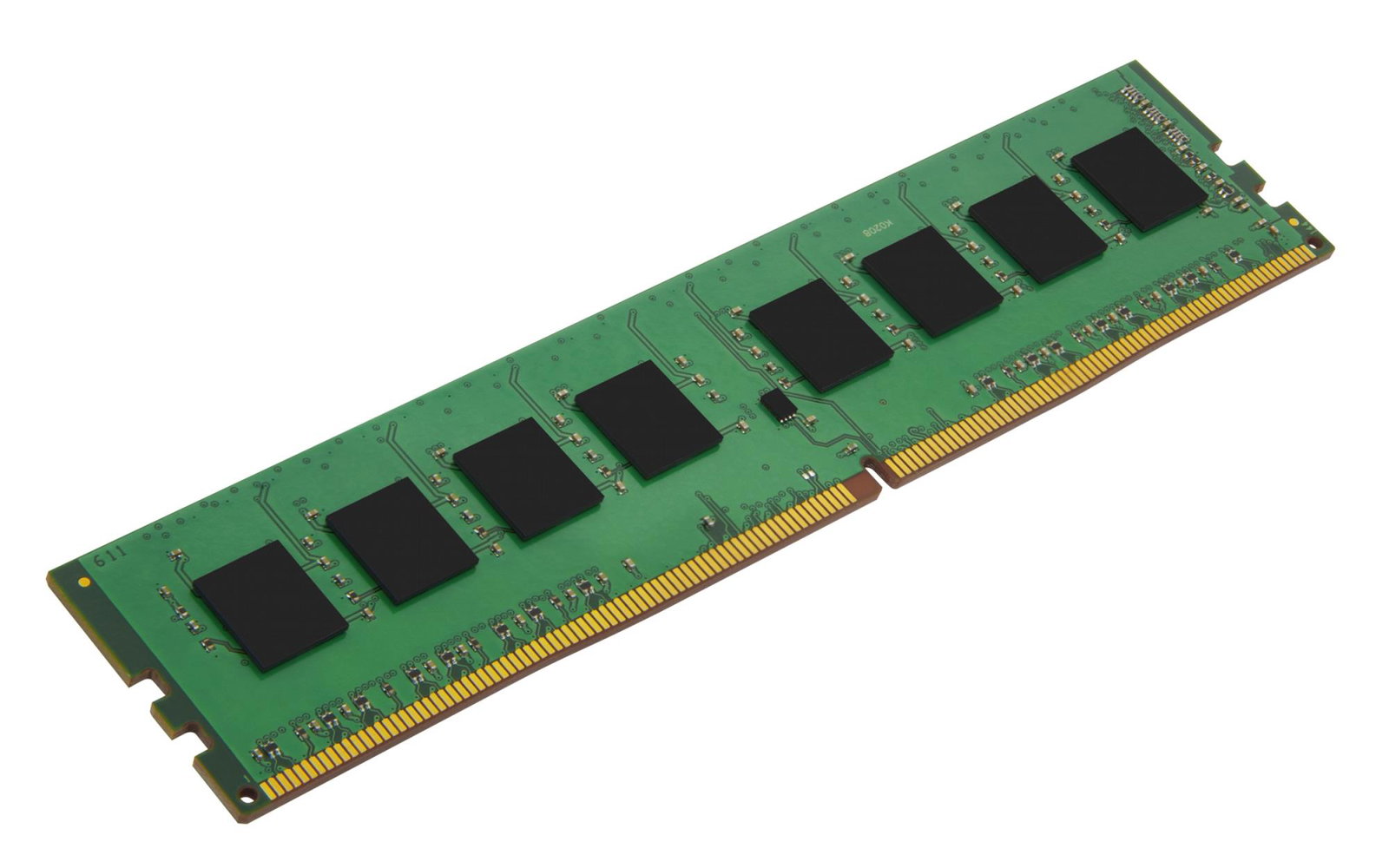

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM – photo 2

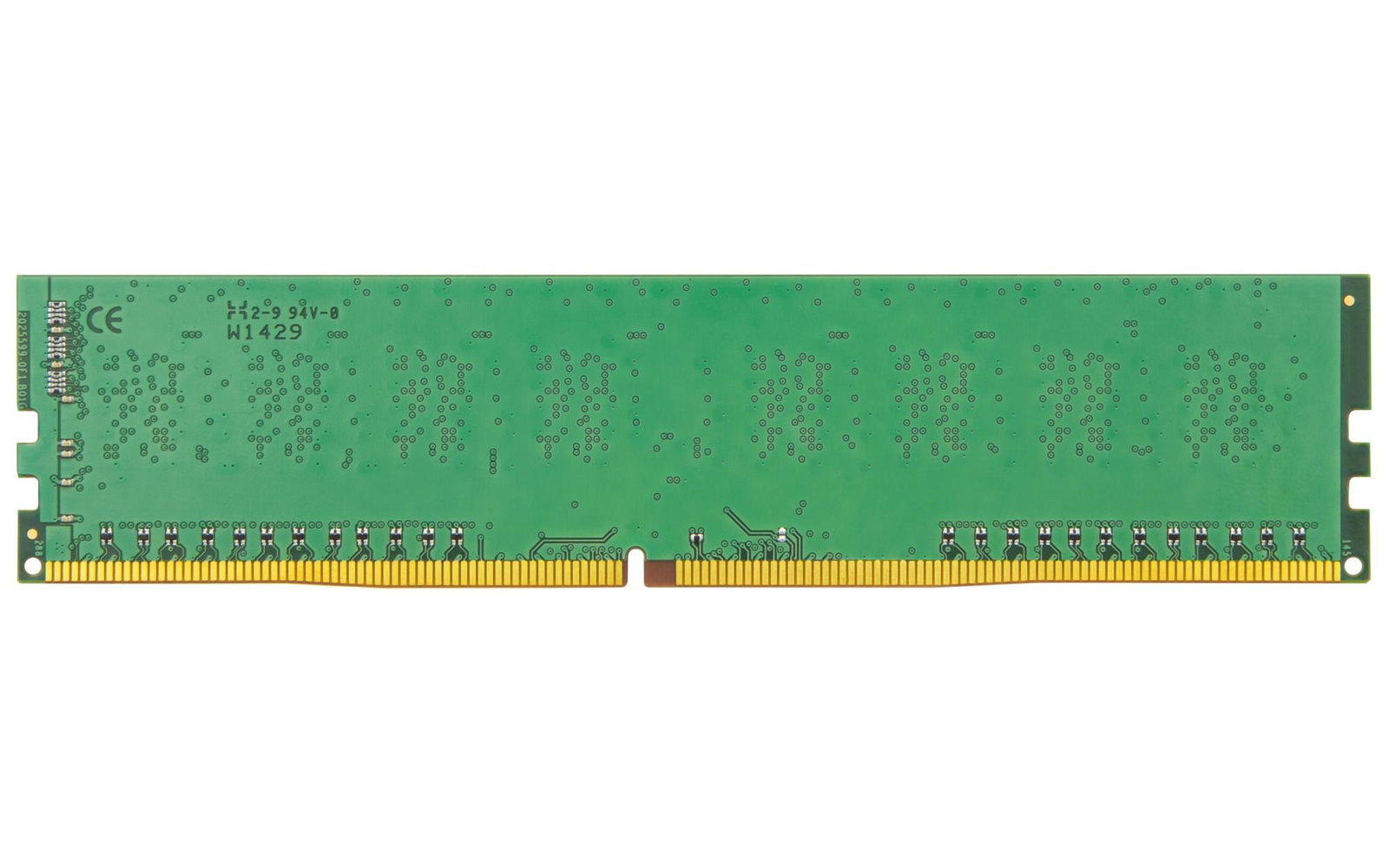

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM – photo 3

Out of Stock / Please Enquire ETA

KINGSTON

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM

R9,938

incl. VAT: R11,428

Stock: Out of Stock / Please Enquire ETA
Brand: KINGSTON
Model: KVR32N22D8/32
Weight: 0.03 kg
Dimensions: 15 × 5 × 1 cm
EAN: 740617305975
Product code: 333850

KINGSTON

Please Inquire

R9,938 incl. VAT: R11,428

We will email you when the product is back in stock.

Key features

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus

Tags: kingston memory , kingston memor

Description
Specifications

Kingston Technology ValueRAM is the best source for industry standard desktop and notebook memory, supplying the most reliable product, supported by an outstanding warranty and free tech support. Kingston Technology’s ValueRAM desktop and notebook memory is recognised and validated on all of the desktop and notebook motherboard manufacturer’s web sites including Asus, MSI, Gigabyte and more. Not all desktop and notebook memory is created equal – Kingston Technology invests $millions to ensure the quality of its modules to reduce your total cost of ownership. All ValueRAM desktop and notebook memory is design proven in functional testing. Kingston Technology’s strong industry alliances make ValueRAM the most reliable desktop and notebook memory you can buy.

Features
Internal memory	32 GB
Memory layout (modules x size)	1 x 32 GB
Internal memory type	DDR4
Memory data transfer rate	3200 MT/s
Component for	PC/Server
Memory form factor	288-pin DIMM
ECC	No
CAS latency	22
Memory ranking	2
Memory voltage	1.2 V
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Programming power voltage (VPP)	2.5 V
Lead plating	Gold
JEDEC standard	Yes
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Sustainability
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
Logistics data
Harmonized System (HS) code	84733020
Other features
Country of origin	Taiwan
Doesn't contain	Halogen
