Out of Stock / Please Enquire ETA

TP-LINK

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+

R4,183

incl. VAT: R4,811

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: TL-SG1218MP
Weight: 3.09 kg
Dimensions: 53 × 8 × 25 cm
EAN: 6935364072155
Product code: 333416

TP-LINK

Please Inquire

R4,183 incl. VAT: R4,811

We will email you when the product is back in stock.

Key features

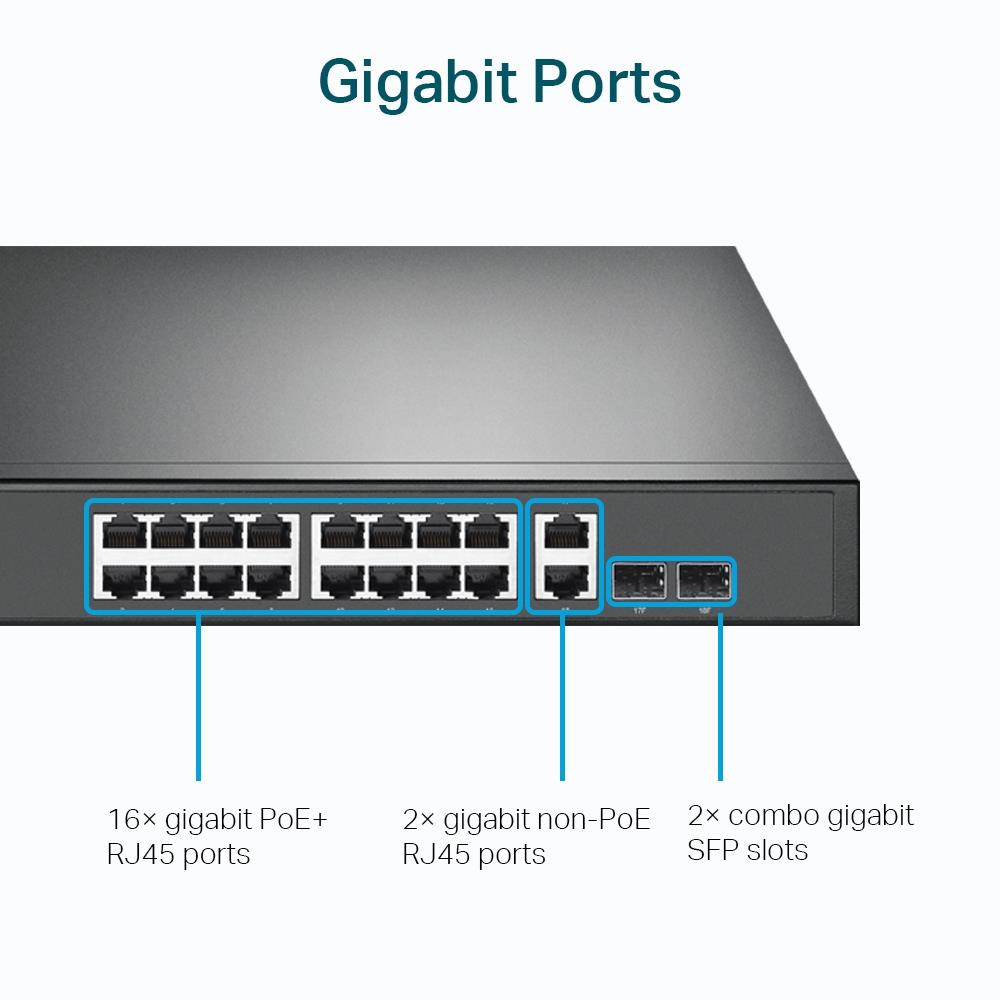

16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

Tags: tp-link switches , tp-link switche

Description
Specifications

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

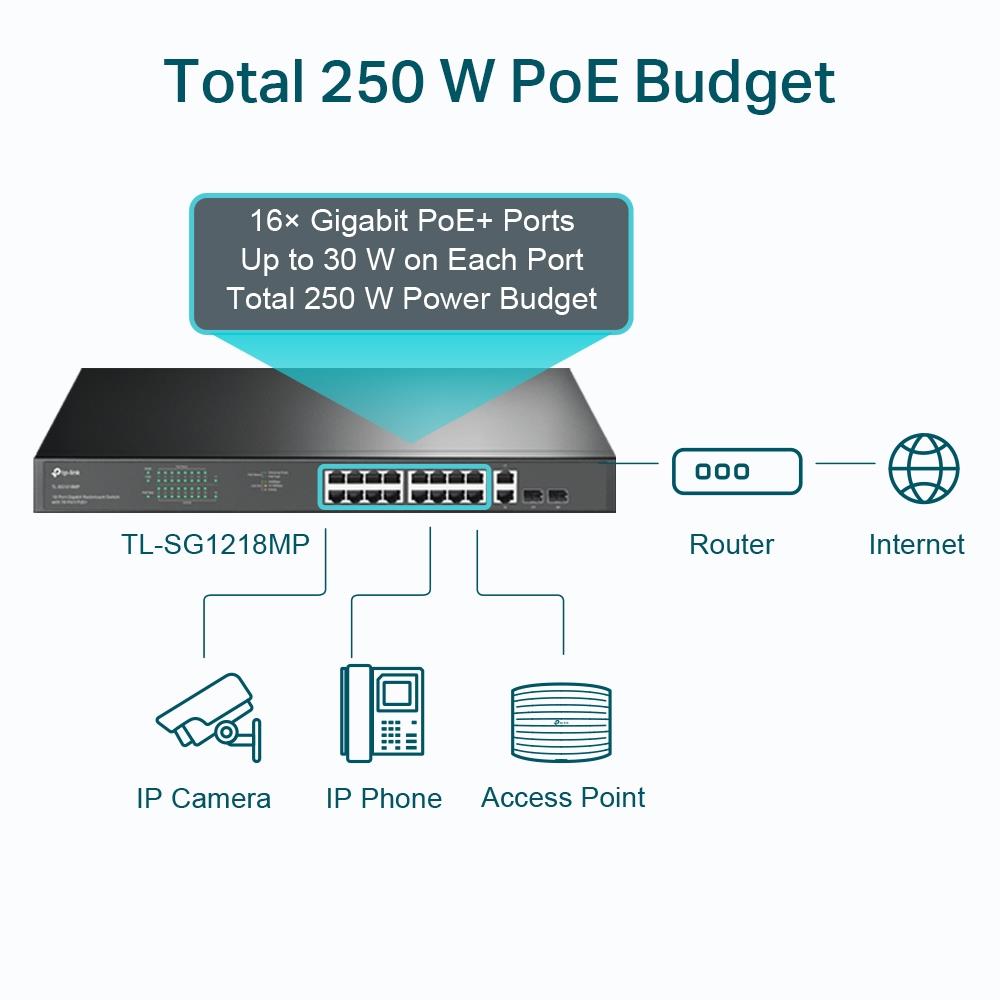

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

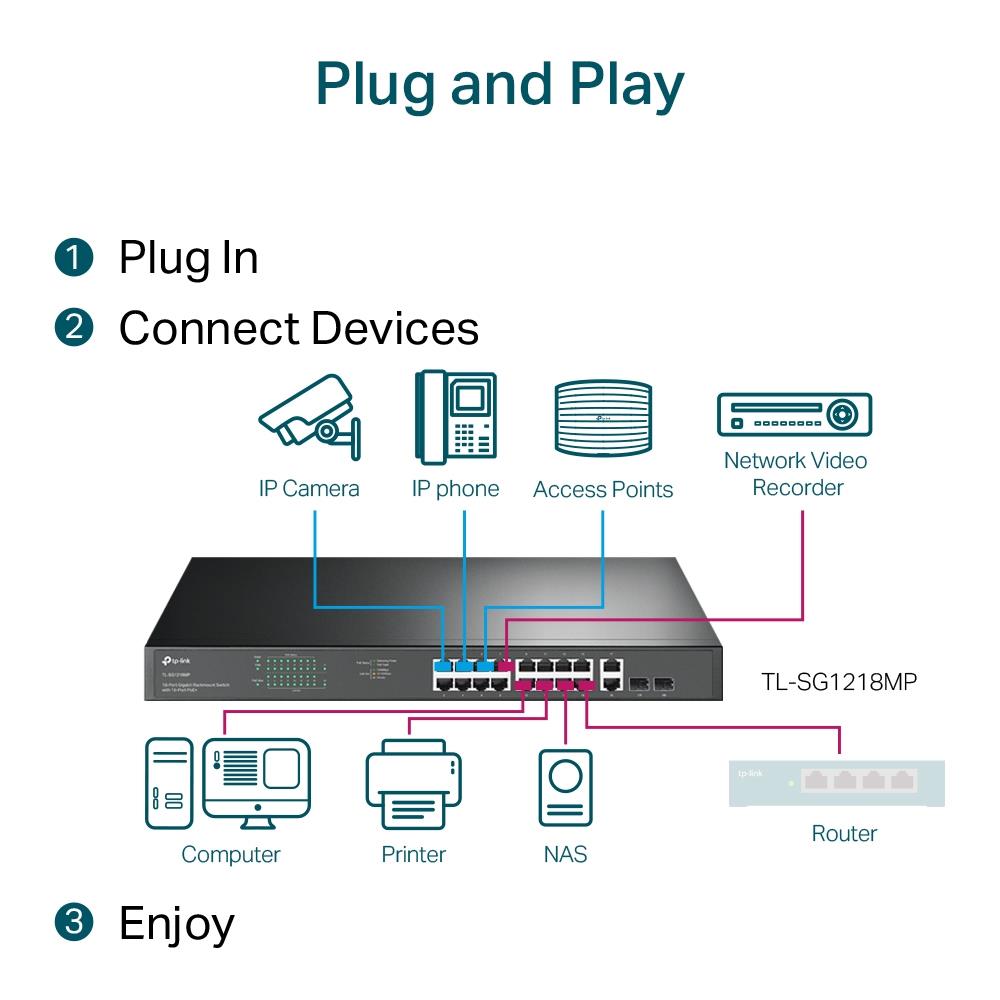

Multiple Application Scenarios

The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Traffic classification	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	18
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Forwarding rate	26.78 Mpps
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Yes
Number of fans	2 fan(s)
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	286.64 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	977.44 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	3.05 kg
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
