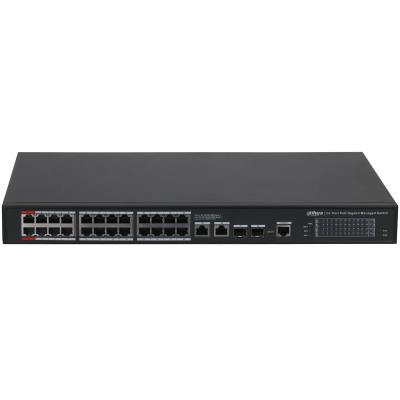

Dahua Technology S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver – photo 1

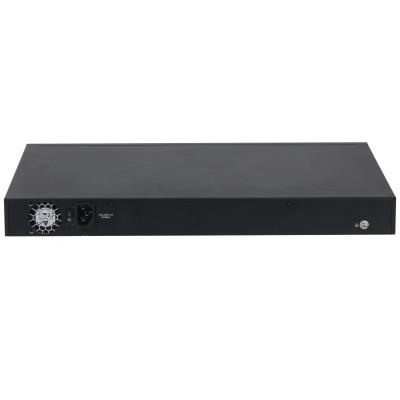

Dahua Technology S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver – photo 2

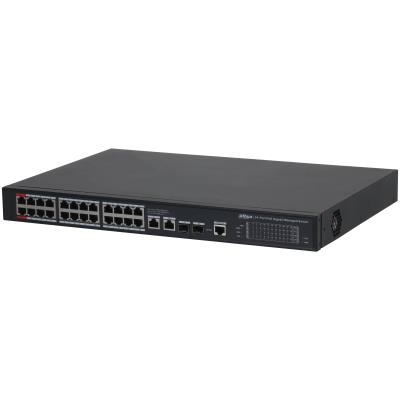

Dahua Technology S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver – photo 3

Out of Stock / Please Enquire ETA

DAHUA

Dahua Technology S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver

R11,042

incl. VAT: R12,698

Stock: Out of Stock / Please Enquire ETA
Brand: DAHUA
Model: DH-S4228-24GT-360
Dimensions: 53 × 41 × 11 cm
EAN: 6923172591173
Product code: 332563

DAHUA

Please Inquire

R11,042 incl. VAT: R12,698

We will email you when the product is back in stock.

Key features

Layer 2 network management PoE switch
Supports web, and network management software based on SNMP
Network redundancy: STP/RSTP
Supports PoE power consumption management, PoE power off management
Supports IEEE802.3af, IEEE802.3at
Port 1 and port 2 support IEEE802.3bt, and are compatible with Hi-PoE
Supports PD alive mode
Supports 250 m long-distance transmission mode

Tags: dahua switches , dahua switche

Description
Specifications

28-Port Managed Desktop Gigabit Switch with 24-Port PoE

Equipped with a high performance switching engine, the 24-Port PoE All-Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable. It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design, the device has great heat dissipation and is low power consumption, working in environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also has powerful network management functions, supporting various types of web and network management software based on SNMP.

Management features
Switch type	Managed
Switch layer	L2
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	2
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000
Data transmission
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.664 Mpps
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
Security
DHCP features	DHCP client, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SNMP
Multicast features
Multicast support	Yes
Design
Product colour	Black, Silver
Reset button	Yes
Performance
Telnet	Yes
Mean time between failures (MTBF)	467125.73 h
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	3.5 A
Power consumption (max)	360 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	360 W
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	440 mm
Depth	300 mm
Height	44 mm
Weight	3.4 kg
Packaging data
Package width	525 mm
Package depth	410 mm
Package height	110 mm
Package weight	4.51 kg
Certificates
Certification	CE, FCC
