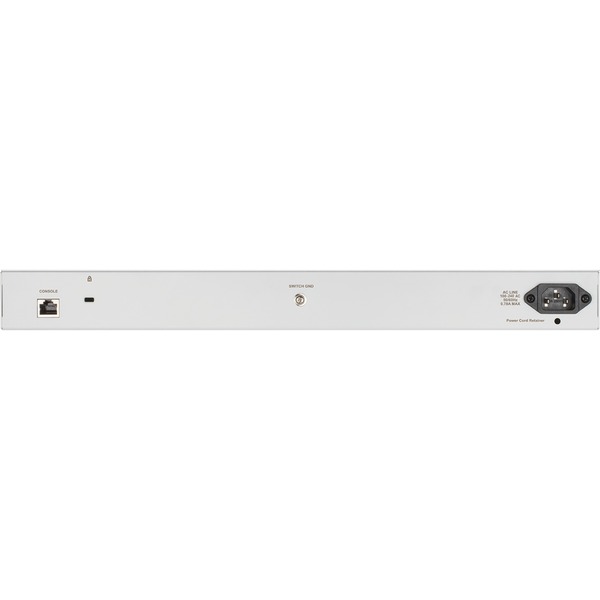

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W – photo 1

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W – photo 2

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W – photo 3

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W – photo 4

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W – photo 5

Out of Stock / Please Enquire ETA

D-LINK

D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W

R20,613

incl. VAT: R23,705

Stock: Out of Stock / Please Enquire ETA
Brand: D-LINK
Model: DBS-2000-52MP
Weight: 2.2 kg
Dimensions: 25 × 44 × 4 cm
EAN: 790069442988
Product code: 207331

D-LINK

Please Inquire

R20,613 incl. VAT: R23,705

We will email you when the product is back in stock.

Key features

48 x 10/100/1000BASE-T PoE ports
4 x 10/100/1000BASE-T ports
370W PoE power budget
Supports IEEE 802.3at PoE
Zero-Touch Deployment
Cloud Management w/99.9% SLA
WPA/WPA2/WPA3 Encryption
Innovative D-Link Green Energy-saving features
Intuitive Web Portal for comprehensive switch management
Multilingual Support

Tags: d-link switches , d-link switche

Description
Specifications

Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Management features
Switch type	Managed
Switch layer	L2
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Console port	RJ-45
Network
Networking standards	IEEE 802.3ad, IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Data transmission
Switching capacity	104 Gbit/s
Forwarding rate	77.4 Mpps
Packet buffer memory	12 MB
Security
IGMP snooping	Yes
Security algorithms	WPA, WPA2
Design
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Performance
Built-in processor	Yes
Processor frequency	700 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Mean time between failures (MTBF)	236406 h
Power
AC input voltage	100 - 240 V
Power consumption (max)	478.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	1634.01 BTU/h
Weight & dimensions
Width	440 mm
Depth	430 mm
Height	44 mm
Weight	6.26 kg
Packaging data
Package width	558 mm
Package depth	568 mm
Package height	149 mm
Package weight	8.66 kg
Technical details
Shipping (inner) case height	59.8 cm
Shipping (inner) case width	31.5 cm
Shipping (inner) case length	57.4 cm
Shipping (inner) case net weight	17.3 kg
Products per shipping (inner) case	2 pc(s)
Pallet gross weight (air)	242.7 kg
Master (outer) cases per pallet (air)	12 pc(s)
Products per pallet (air)	24 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	133.1 cm
Pallet gross weight (sea)	354.8 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Products per pallet (sea)	36 pc(s)
Pallet height (sea)	192.9 cm
Shipping (inner) case gross weight	18.6 kg
Logistics data
Harmonized System (HS) code	85176990
