✅ In Stock

TP-LINK

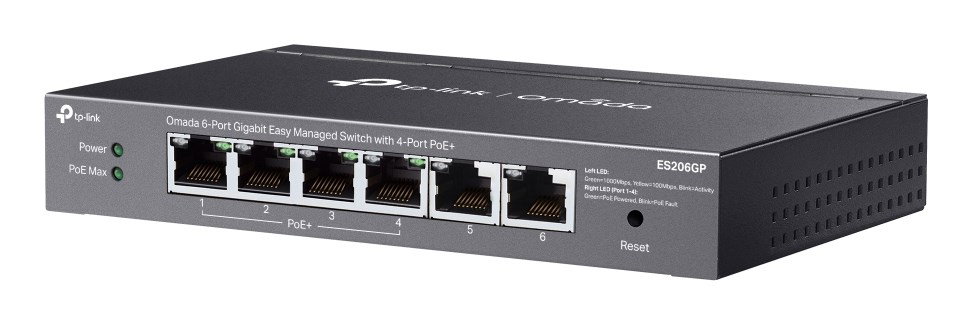

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

R1,530

incl. VAT: R1,760

Stock: Backordered - delivers in 10-15 days
Brand: TP-LINK
Model: ES206GP
Weight: 1.01 kg
Dimensions: 13 × 20 × 12 cm
EAN: 1210002600644
Product code: 200258

TP-LINK

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R1,530 incl. VAT: R1,760

Qty

Save PDF

Key features

6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Tags: tp-link switches , tp-link switche

Description
Specifications

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Unified static configuration	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	6
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support	No
Zero Touch Provisioning (ZTP)	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Design
Product colour	Black
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes
Performance
Firmware upgradeable	Yes
Fanless	Yes
Power
Power source	DC
Power supply included	Yes
DC input voltage	53.5 V
Input current	1.31 A
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
