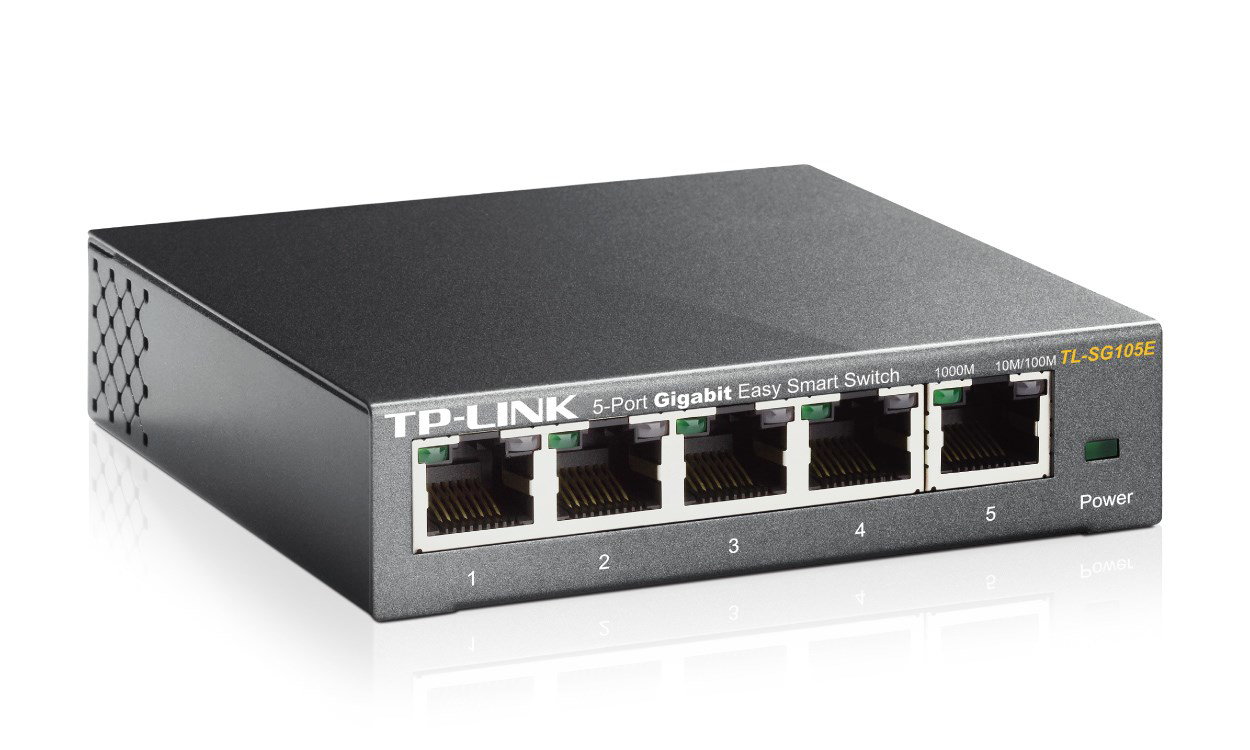

TP-Link 5-Port Gigabit Easy Smart Switch – photo 1

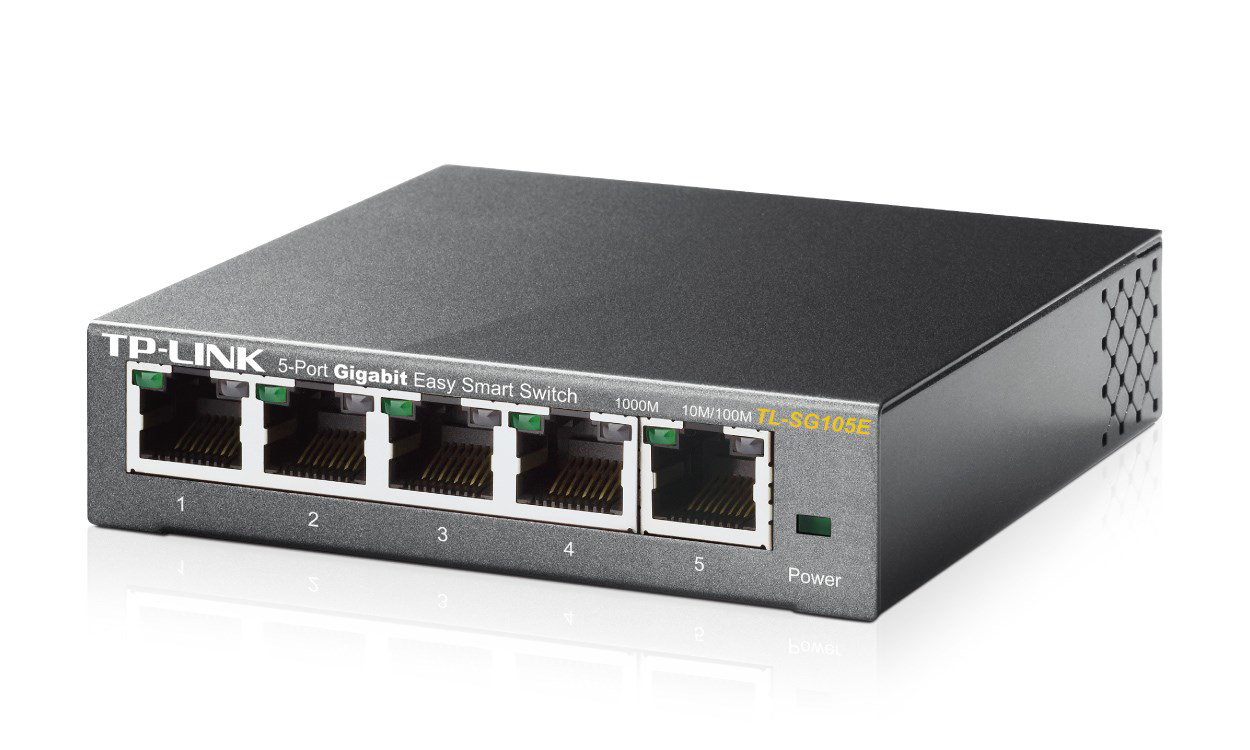

TP-Link 5-Port Gigabit Easy Smart Switch – photo 2
TP-Link 5-Port Gigabit Easy Smart Switch – photo 3
TP-Link 5-Port Gigabit Easy Smart Switch – photo 4
TP-Link 5-Port Gigabit Easy Smart Switch – photo 5
Out of Stock / Please Enquire ETA
TP-LINK

TP-Link 5-Port Gigabit Easy Smart Switch

R845
incl. VAT: R972
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: TP-LINK
  • Model: TL-SG105E
  • Weight: 0.46 kg
  • Dimensions: 10 × 14 × 13 cm
  • EAN: 6935364022037
  • Product code: 200230
Please Inquire
R845 incl. VAT: R972
We will email you when the product is back in stock.
SavePDF

Key features

  • 5 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption

Description

Easily Expand Your Gigabit Network and Save Energy
5-Port Gigabit Easy Smart Switch

Link Your Devices, Create Convenient Business

The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

Gigabit Ports for Maximum Speed

5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

More Features,More Choices

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security

Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Made Easy

TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Durable Metal Casing

The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.

Go Green with Your Ethernet

TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Specifications

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Gigabit Ethernet (copper) ports quantity 5
Network
Networking standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
VLAN support Yes
Virtual LAN features Port-based VLAN
Number of VLANs 32
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16000
Packet buffer memory 1 MB
Security
IGMP snooping Yes
Design
Product colour Black
LED indicators Yes
Performance
Compatible operating systems Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Power
Power source DC
Power supply included Yes
Input current 0.6 A
Input voltage 5 V
Power consumption (max) 2.82 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 9.07 BTU/h
Weight & dimensions
Width 100 mm
Depth 98 mm
Height 25 mm
Packaging content
Cables included AC
Quick start guide Yes
User guide Yes
Rack mount kit Yes
Packaging data
Package type Box
Package width 125 mm
Package depth 128 mm
Package height 92 mm
Package weight 450 g
Certificates
Certification FCC, CE, RoHS
