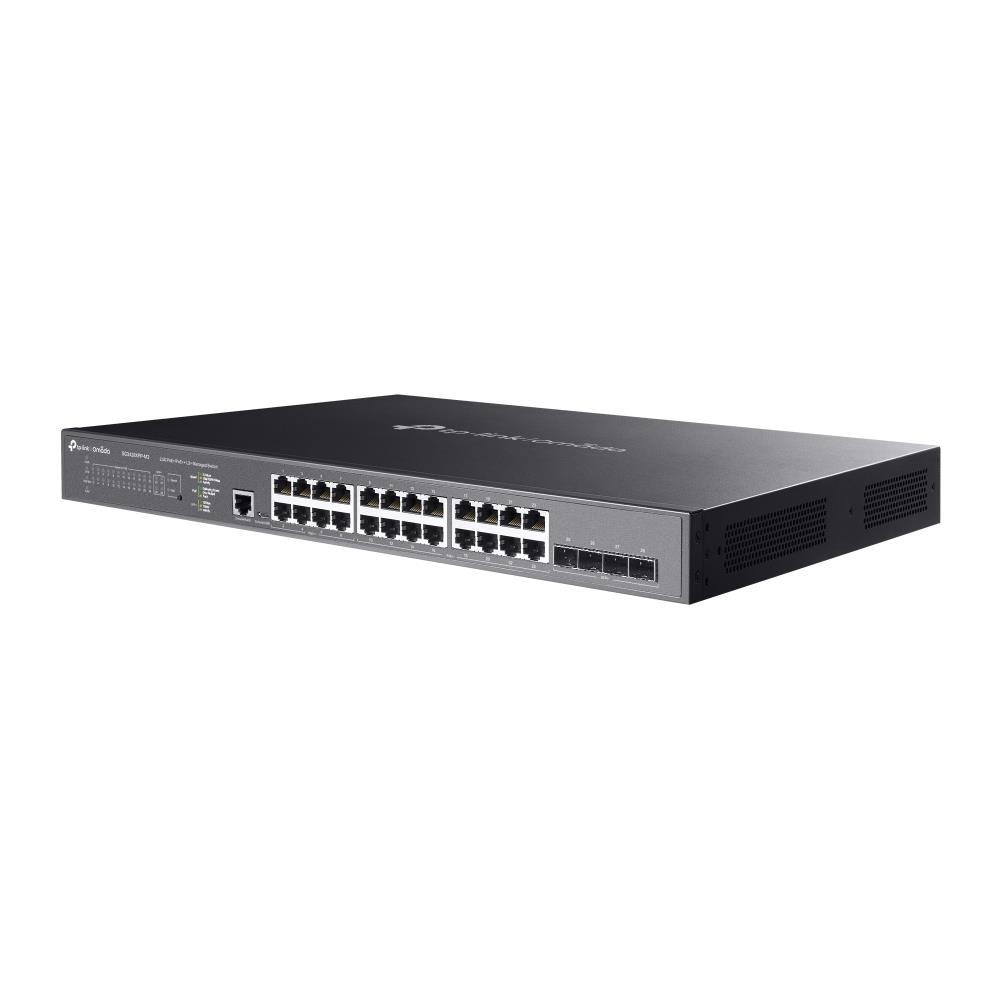

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ – photo 1

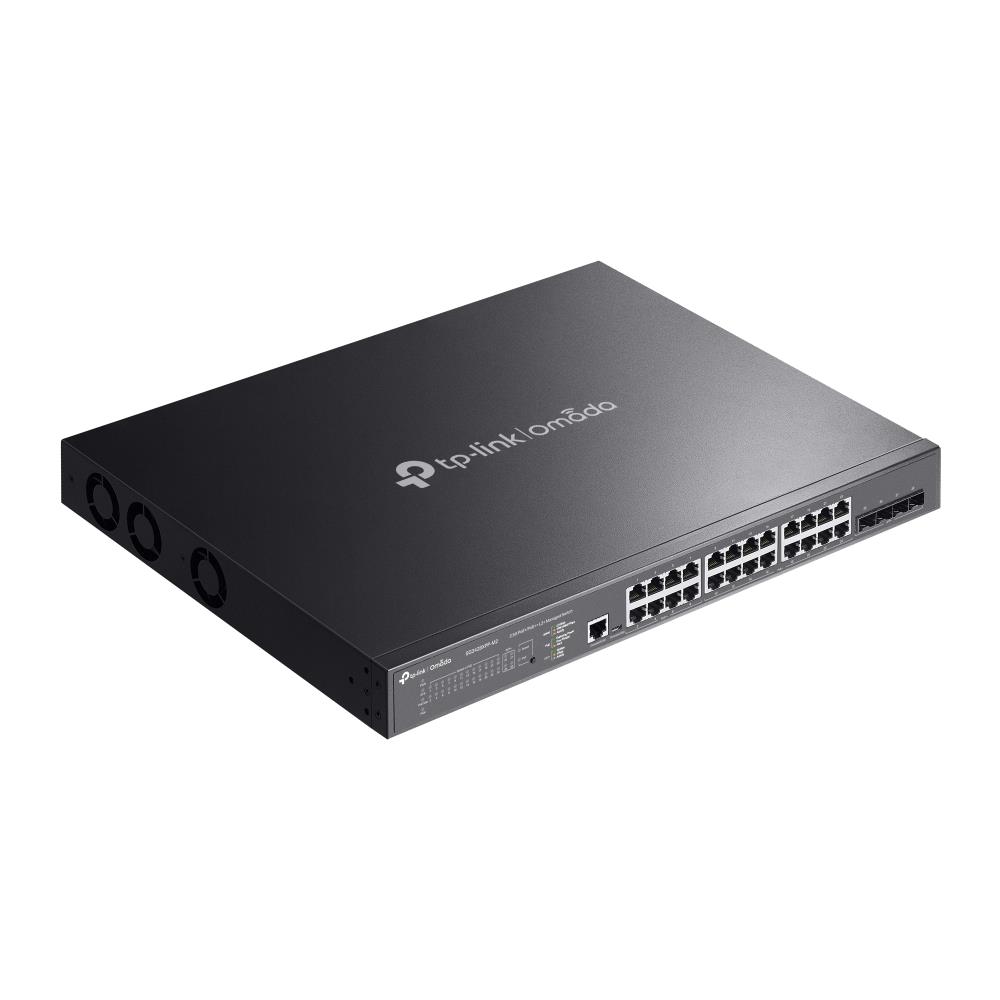

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ – photo 2

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ – photo 3

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ – photo 4

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ – photo 5

✅ In Stock

TP-LINK

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

R16,997

incl. VAT: R19,546

Stock: Backordered - delivers in 10-15 days
Brand: TP-LINK
Model: SG3428XPP-M2
Weight: 6.19 kg
Dimensions: 53 × 44 × 10 cm
EAN: 4897098689738
Product code: 193486

TP-LINK

Backordered goods Delivery in 10–15 working days

Available Options

Warranty extension

R16,997 incl. VAT: R19,546

Qty

Save PDF

Key features

8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
16× 2.5G PoE+ ports (up to 30 W PoE out per port)
4× 10G SFP+ slots
500 W total PoE budget*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology

Tags: tp-link switches , tp-link switche

Description
Specifications

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
2.5G Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
IPv4 routes	48
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Data transmission
MAC address table	32000 entries
Switching capacity	200 Gbit/s
Forwarding rate	148.8 Mpps
Store-and-forward	Yes
Number of queues	8
Static route	Yes
Number of static routes	48
Number of IP interfaces	32
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	16 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Protocols
Management protocols	SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Redundant fans support	Yes
Number of fans	3 fan(s)
Performance
Memory type	DRAM
Internal memory	256 MB
Flash memory	32 MB
Power
Power source	AC/PoE
Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	629.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Total Power over Ethernet (PoE) budget	500 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	2153.45 BTU/h
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
