TP-LINK

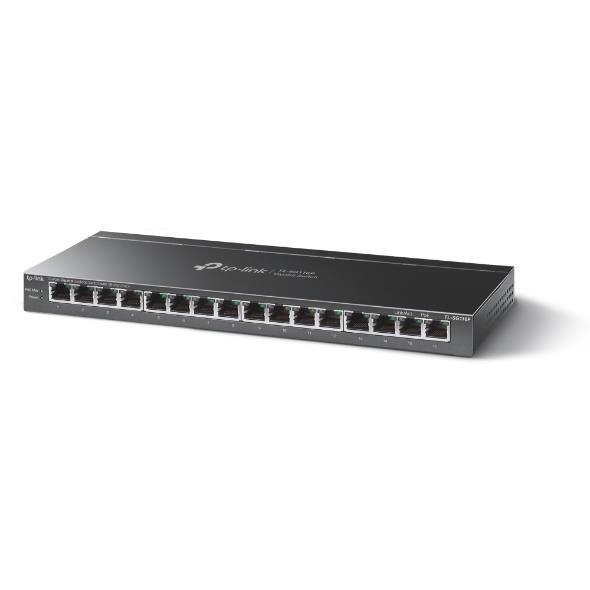

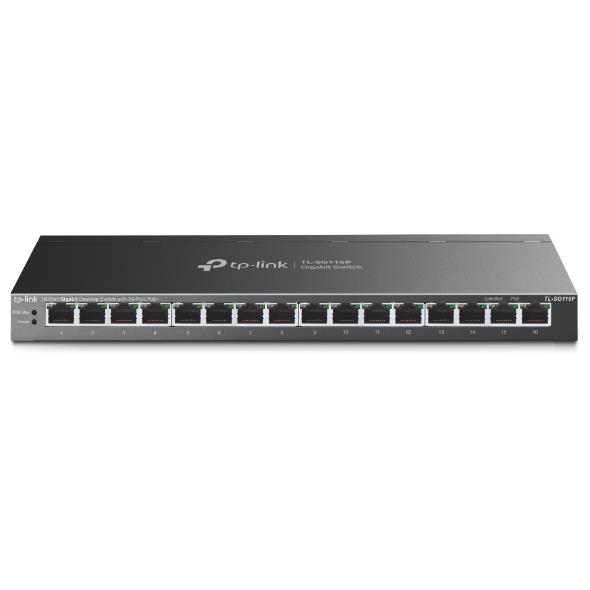

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

R3,300

incl. VAT: R3,795

Stock: Out of Stock / Please Enquire ETA
Brand: TP-LINK
Model: TL-SG116P
Weight: 2.03 kg
Dimensions: 11 × 29 × 3 cm
EAN: 4895252500301
Product code: 1062678

TP-LINK

Please Inquire

R3,300 incl. VAT: R3,795

We will email you when the product is back in stock.

Key features

With 16 PoE+ ports, transfers data and power on one single cable
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 120 W for all PoE ports*
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required

Tags: tp-link switches , tp-link switche

Description
Specifications

Produktbeschreibung Das TP-Link TL-SG116P ist ein professioneller 16-Port Gigabit Desktop Switch mit 16-Port PoE+, Plug and Play, mit PoE-Übertragung für Überwachungsysteme mit einer Reichweite von bis zu 250 m. Die Einhaltung des PoE+-Standards 802.3af/at unterstützt bis zu 30 W an jedem PoE-Port. Das gesamte PoE-Leistungsbudget von 120 W für die 16 PoE+-Ports eröffnet eine breite Palette von Anwendungen, wie z. B. Überwachung für Büros, Schlafsäle und kleine Unternehmen. Es ist voll kompatibel mit IP-Kameras, Access Points, IP-Telefonen, Computern, Druckern und mehr. Art.-Nr.: 100105484 EAN: 4895252500301 | Hersteller-Nr.: TL-SG116P | Anschlüsse: 16x (davon: 16x 10/100/1000) | Routing & Switching: 32 GBit/s | Stromversorgung: Stromverbrauch Betrieb: 11.72 W, Stromverbrauch inkl. PoE-Geräte: 142.51 W, PoE Gesamt-Budget: 120 W, max. PoE Versorgung pro Port: 30 W | Feature: Bis zu 250 m Daten- und Stromübertragungsreichweite im Extend-Modus || Extend Mode Button (Ports 1–4, Bis zu 250 m PoE und Daten) || Priority Mode Button (Ports 1–4) || Isolation Mode Button (Ports 1–7 / 8-14) || PoE Auto Recovery (Ports 1-16) || Mac Address Auto-Learning And Auto-Aging || IEEE 802.3x Flow Control 802.1p/DSCP QoS || IGMP Snooping | Zubehör: Power Adapter, Installationsanleitung | Abmessungen: Breite: 286 mm x Höhe: 25,4 mm x Tiefe/Länge: 111,7 mm

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
Data transmission
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Security
IGMP snooping	Yes
Loop protection	Yes
Design
Stackable	Yes
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (typical)	11.72 W
Power consumption (max)	144.28 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	490.55 BTU/h
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging content
Quick start guide	Yes
Packaging data
Package width	227 mm
Package depth	434 mm
Package height	70 mm
Package weight	2 kg
