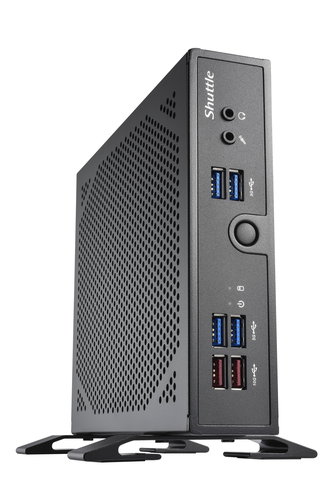

Shuttle XPC slim Barebone DS50U5, i5-1335U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation – photo 1
✅ In Stock
SHUTTLE

Shuttle XPC slim Barebone DS50U5, i5-1335U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation

R13,299
incl. VAT: R15,294
  • Stock: Backordered - delivers in 10-15 days
  • Brand: SHUTTLE
  • Model: DS50U5
  • Weight: 2.85 kg
  • Dimensions: 26 × 25 × 14 cm
  • EAN: 887993006185
  • Product code: 1044075
Backordered goods Delivery in 10–15 working days

Available Options

R13,299 incl. VAT: R15,294
SavePDF

Key features

  • Fanless 1.3L-PC supports 24/7 operating
  • Dual LAN (1x 2.5Gbit , 1x 1Gbit) , 1x COM (RS232) , VESA
  • HDMI, Display Port and VGA

Description

Fanless Slim PC with integrated ULV processor in industrial design

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Specifications

Processor
Built-in processor Yes
Processor manufacturer Intel
Processor family Intel® Core™ i5
Processor generation 13th gen Intel® Core™ i5
Processor model i5-1335U
Processor cores 10
Processor threads 12
Processor boost frequency 4.6 GHz
Performance cores 2
Efficient cores 8
Performance-core boost frequency 4.6 GHz
Efficient-core boost frequency 3.4 GHz
Processor cache 12 MB
Thermal Design Power (TDP) 15 W
ECC supported by processor No
Memory
Internal memory installed No
Memory slots type SO-DIMM
Number of memory slots 2
Maximum internal memory 64 GB
Supported memory clock speeds 5200 MHz
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Memory voltage 1.1 V
Storage
Storage drives installed No
Supported storage drive types HDD & SSD
Storage drive sizes supported 2.5,M.2
Storage drive interface PCI Express, Serial ATA III
NVMe Yes
Number of storage drives supported 3
Graphics
On-board graphics card Yes
Graphics card family Intel
On-board graphics card model Intel® UHD Graphics
Audio
Built-in speaker(s) No
Network
Ethernet LAN Yes
Wi-Fi No
LAN controller Intel® I219, Intel I226-LM
Ports & interfaces
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
HDMI version 2.0b
DisplayPorts quantity 1
DisplayPort version 1.4
Microphone in Yes
Headphone outputs 1
Serial ports quantity 1
DC-in jack Yes
Design
Chassis type 1.3L sized PC
Product colour Black
Cooling type Passive
Product type Mini PC barebone
On/off switch Yes
LED indicators HDD, Power
Housing material Steel
Cable lock slot Yes
Cable lock slot type Kensington
VESA mounting Yes
Panel mounting interface 75 x 75,100 x 100 mm
Performance
Number of processors supported 1
BIOS type UEFI AMI
Trusted Platform Module (TPM) Yes
Trusted Platform Module (TPM) version 2
Audio chip RealTek ALC888S
Technical details
Compliance certificates BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Logistics data
Harmonized System (HS) code 84733080
Software
Windows operating systems supported Windows 10, Windows 11
Linux operating systems supported Yes
Operating system installed No
Sustainability
Sustainability certificates ENERGY STAR, ErP
Sustainability compliance Yes
Power
Power supply type External AC adapter
Power supply 90 W
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
AC adapter output voltage 19 V
AC adapter output current 1.6 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 200 mm
Depth 165 mm
Height 39.5 mm
Weight 1.6 kg
Package weight 2.3 kg
Packaging content
Power cord included Yes
AC adapter included Yes
Quick start guide Yes
