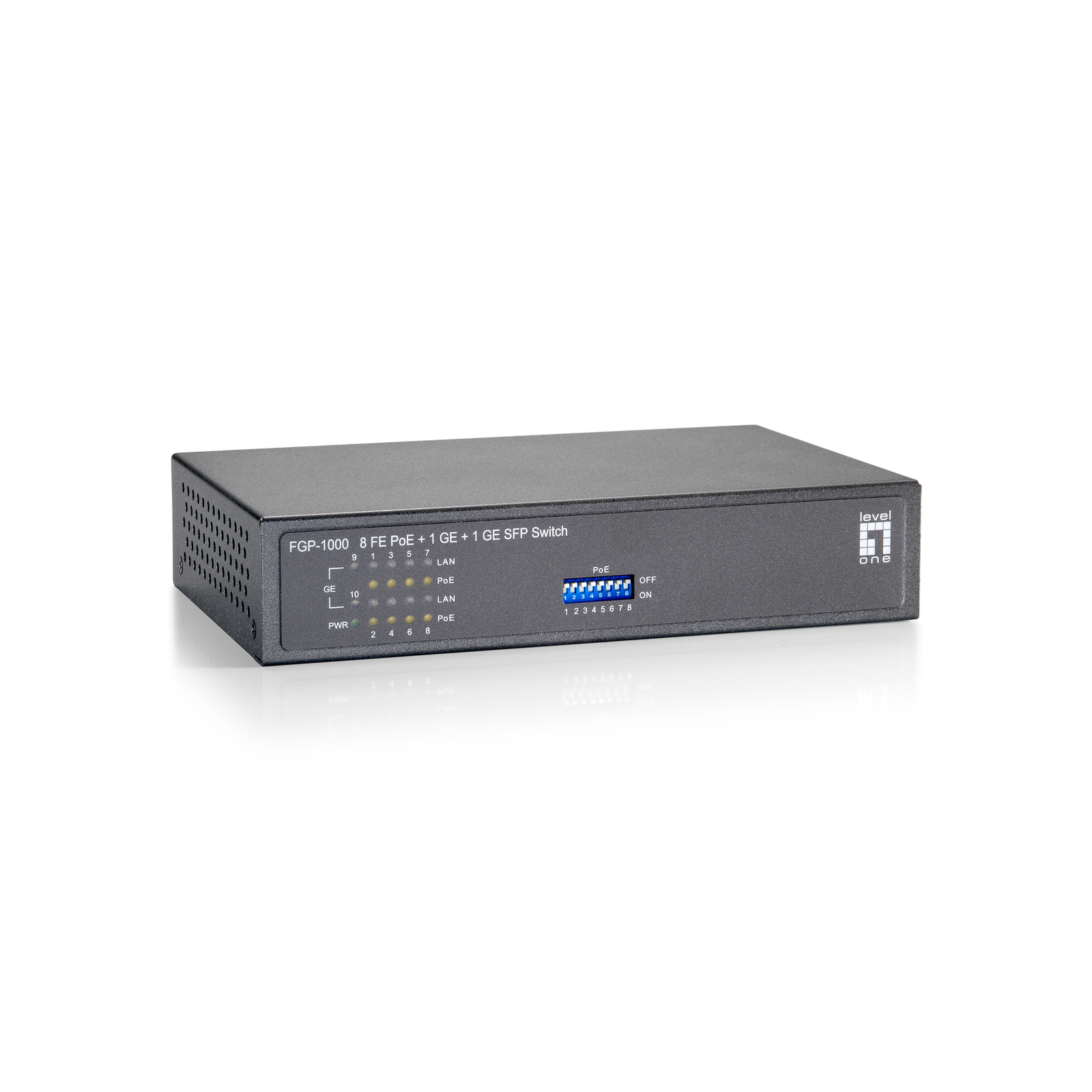

LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W

LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
✅ In Stock


Backordered goods
Arrives by 21 September (Monday)

💡Note: Delivery time is calculated from the moment your order is confirmed and is approximate. For a more precise estimate,
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
incl. VAT: R5,747
R4,997
  • Stock: In Stock
  • Brand: LEVELONE
  • Model: FGP-1000
  • EAN: 4015867187982
  • Warranty: 1 year
LEVELONE

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • Basic switching RJ-45 Ethernet ports quantity: 9
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4096 entries Switching capacity: 5.6 Gbit/s
  • Power supply included Power over Ethernet (PoE)
Tags: levelone switches , levelone switche
FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 120W, up to 30W per port
- Simple Plug and Play installation
Specifications
Warehouse group Server/Storage/Network > Switche [+1434][-907]
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 1
Fiber optic connector SFP
Power connector DC-in jack
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Optical fiber
Fiber ethernet cabling technology 1000BASE-X
Fiber type Single-mode
Data transmission
MAC address table 4096 entries
Switching capacity 5.6 Gbit/s
Store-and-forward Yes
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148000 pps
Packet forwarding rate (10 Mbps) 14880 pps
Design
Rack mounting No
Stackable No
Product colour Black, Grey
LED indicators Activity, LAN, PoE, Power
On/off switch Yes
Performance
Buffer size 512 KB
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Output voltage 52 V
Power consumption (typical) 120 W
Power protection features Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 9
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 115 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 188 mm
Depth 118 mm
Height 38 mm
Weight 1.5 kg
Packaging content
Manual Yes
Packaging data
AC adapter included Yes
Package width 222 mm
Package depth 146 mm
Package height 78 mm
Package weight 1.7 kg
Certificates
Certification FCC, CE, RoHS
Logistics data
Country of origin Taiwan
Harmonized System (HS) code 85176990
